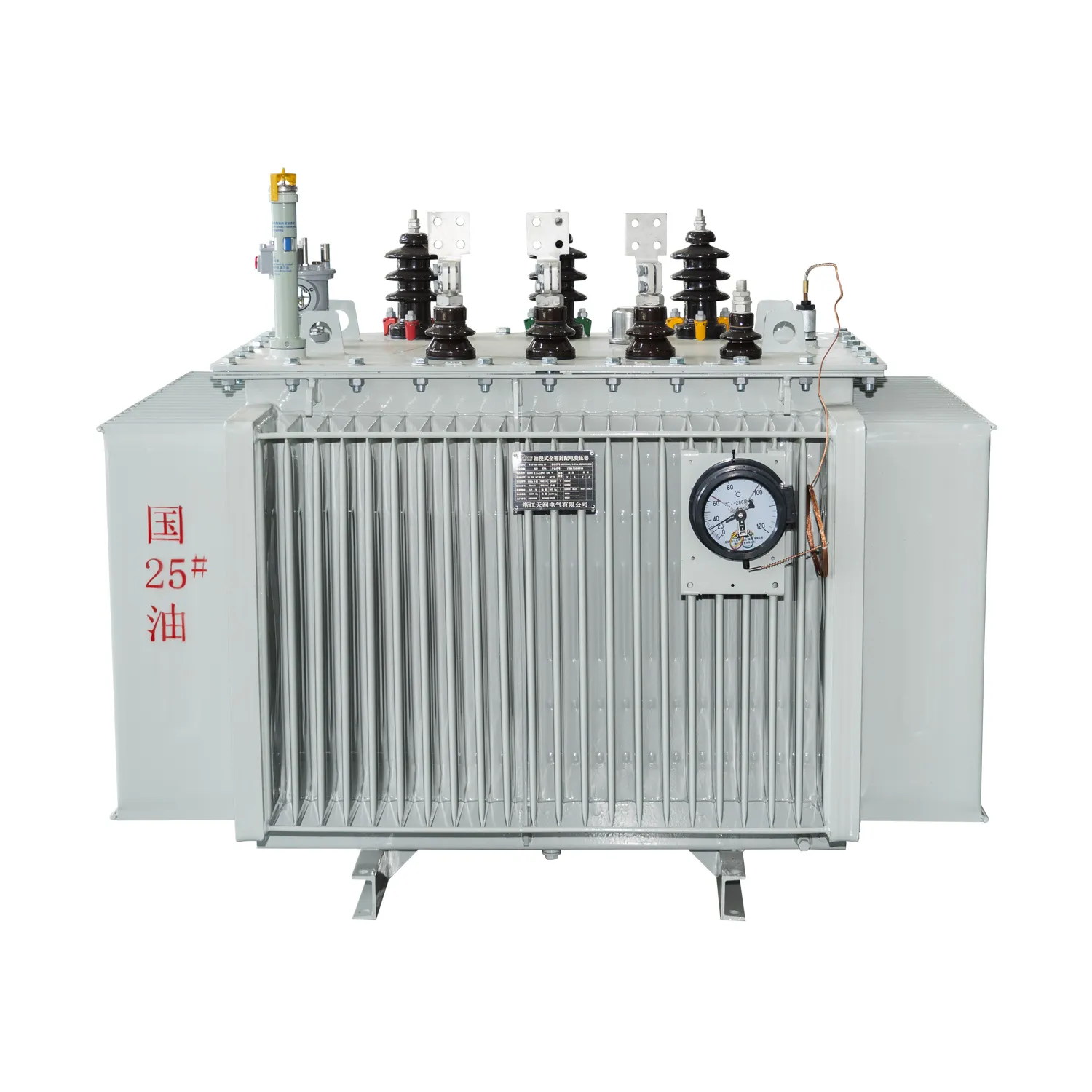

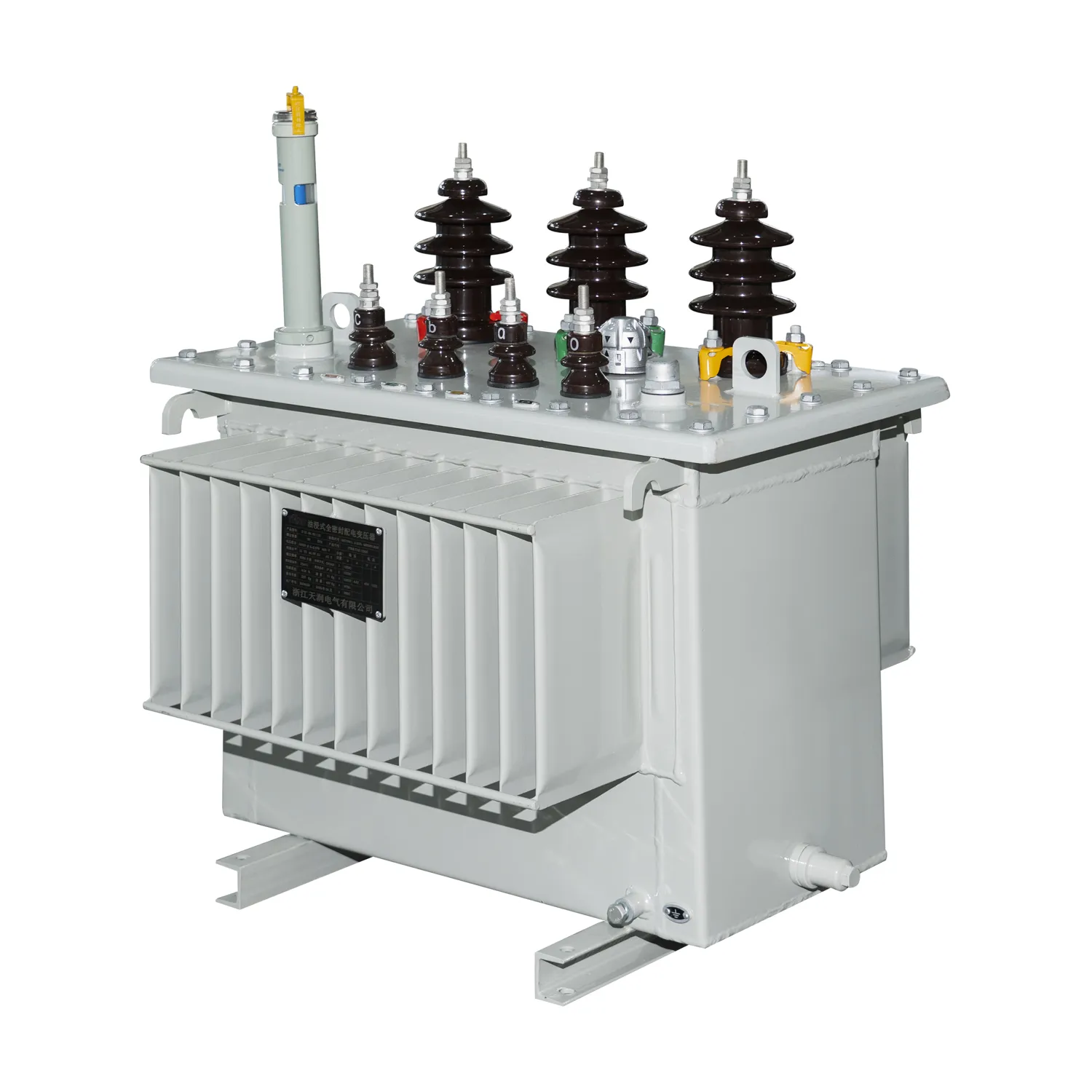

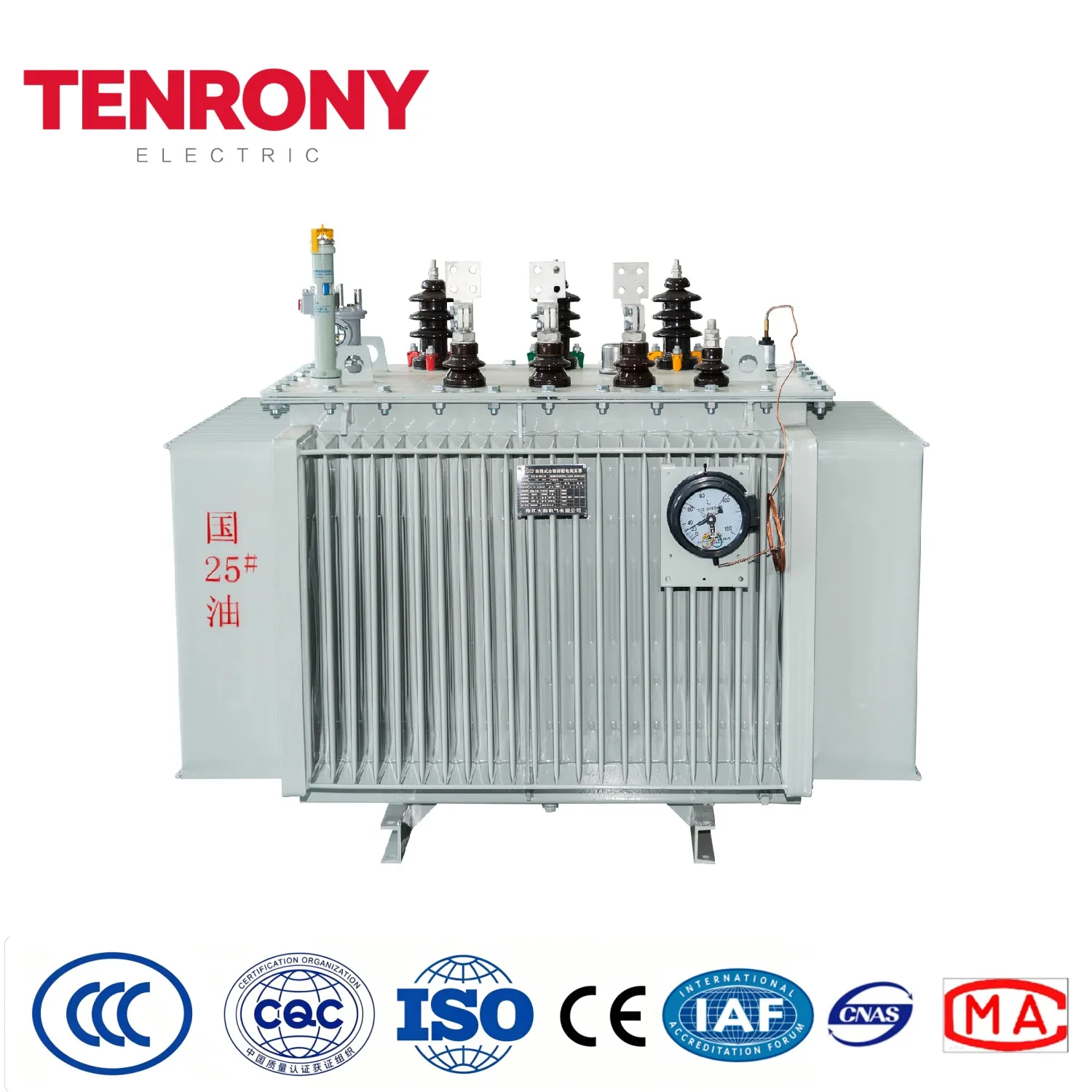

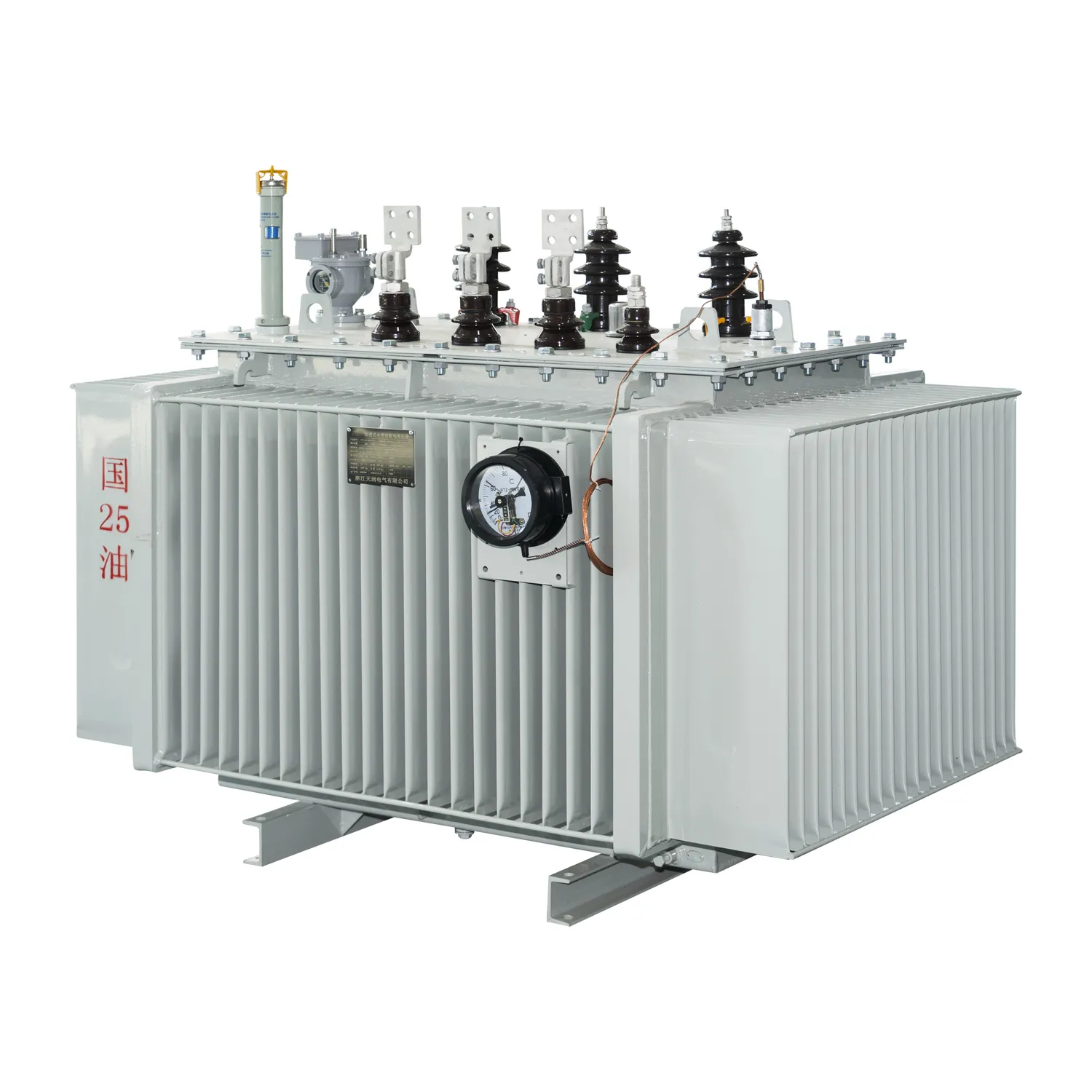

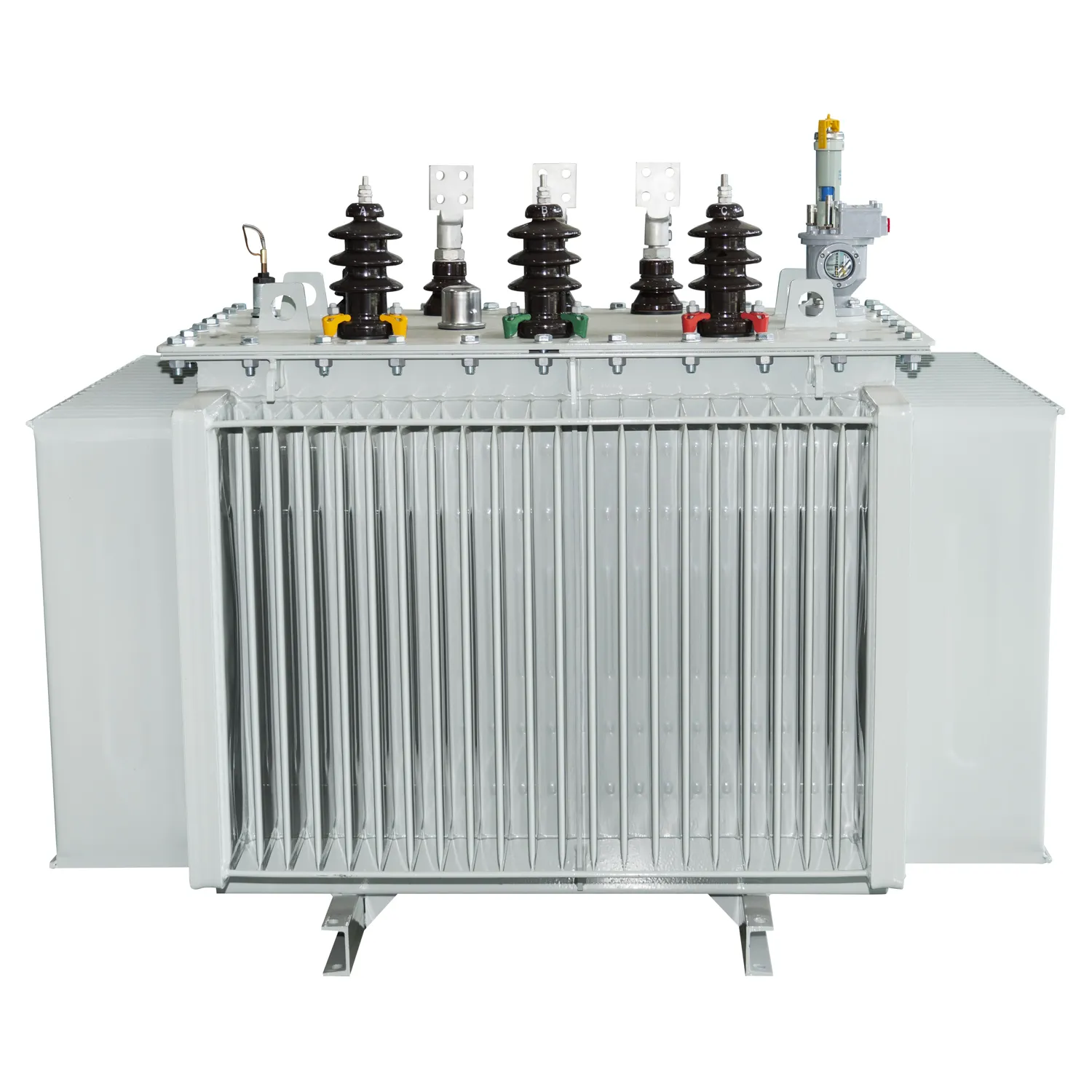

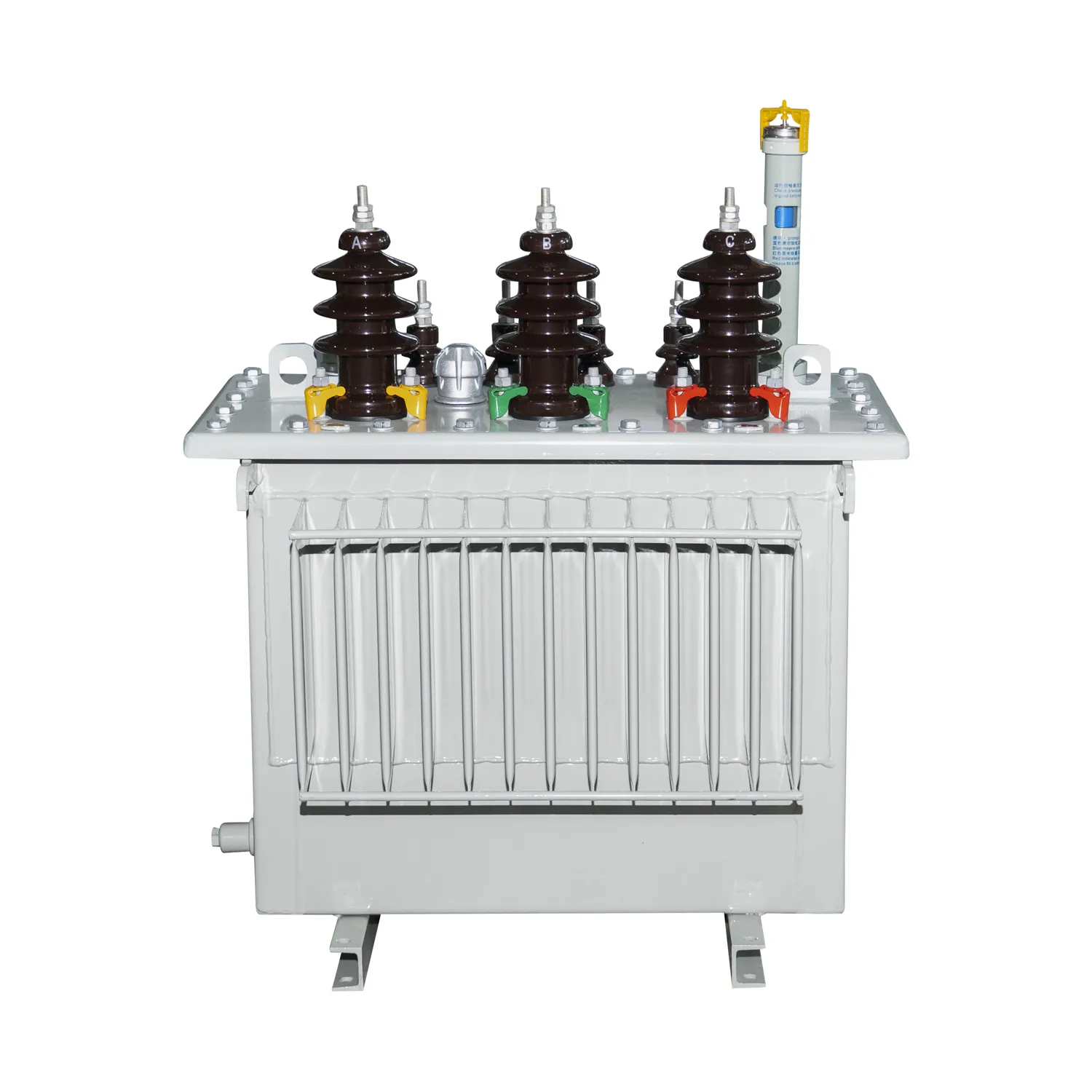

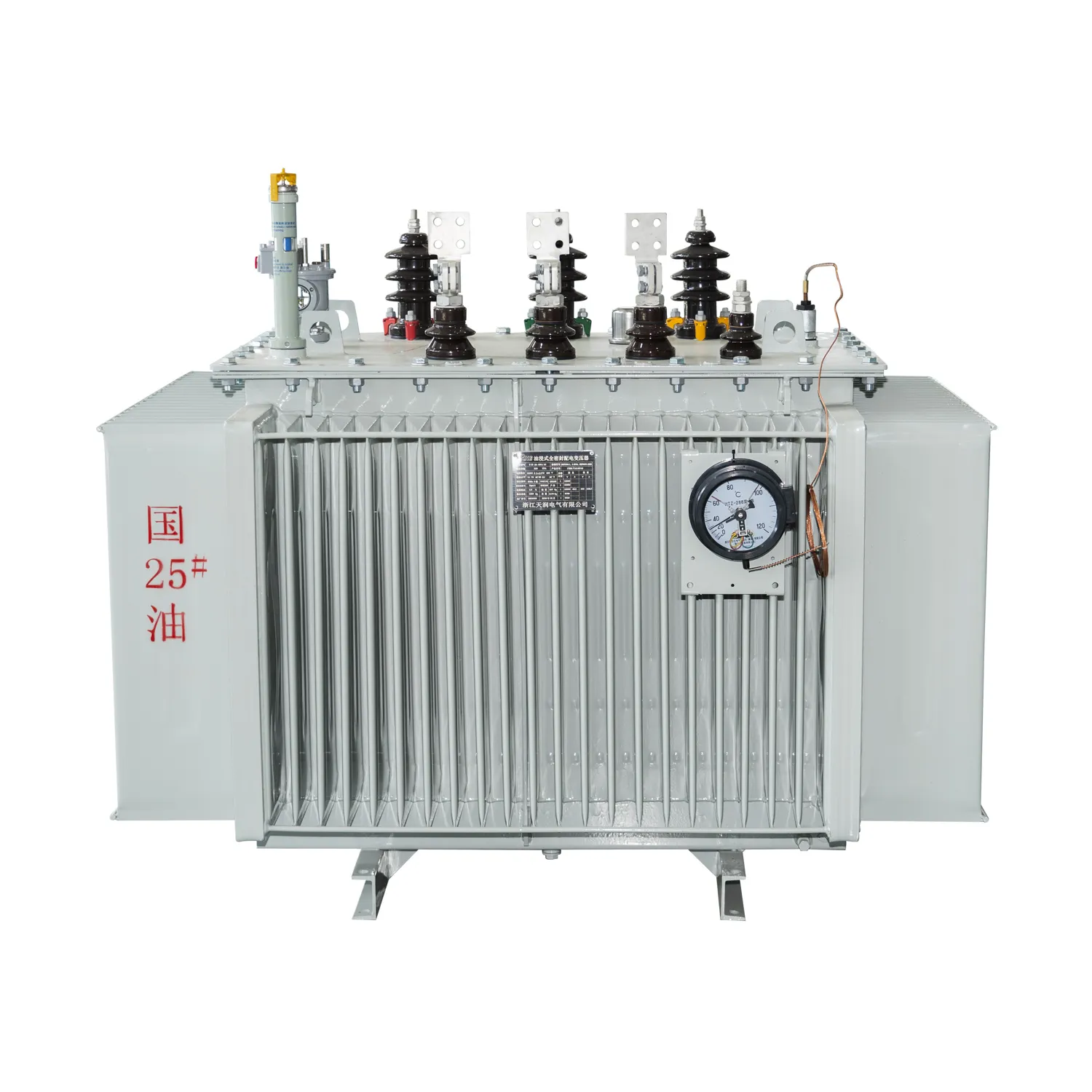

10KV Oil-immersed Power Transformer

Name: 10KV Oil-immersed Power Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

The three-phase 10KV oil-immersed power transformer produced by the oil-immersed power transformer company features a new insulation structure in the core, which enhances its short-circuit resistance. The core is made of high-quality cold-rolled silicon steel sheets. The high-voltage windings are all made of high-quality oxygen-free copper wire and adopt a multi-layer cylindrical structure. All fasteners are specially treated to prevent loosening.

Products

Features

10KV oil-immersed power transformer is characterized by high efficiency and low loss, which can save a large amount of electricity consumption and operating costs, and has significant social benefits. It is a high-tech product promoted by the state.

10KV oil-immersed power transformer has excellent internal heat dissipation and stronger hot-circuit current resistance. The no-load and load losses are low.

With a fully sealed structure, 10KV oil-immersed power transformer enhance operational reliability and requires no maintenance during normal operation.

Parameters

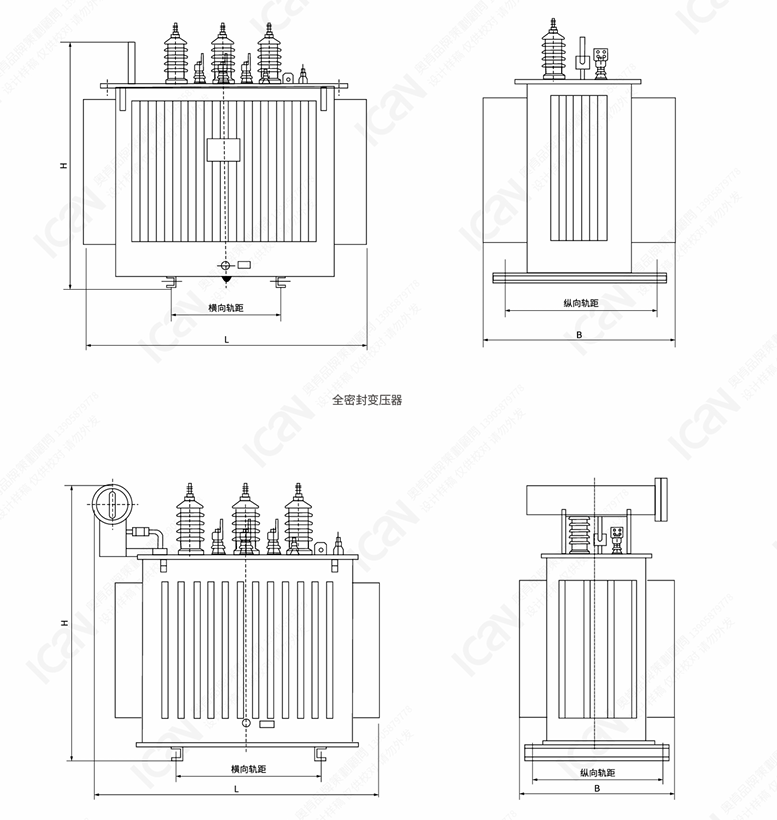

10kV S9、S9-M series Technical parameter of oil immersed distribution transformers
Rated capacity (kVA)	Combine voltage (kV)		Connect group	Load Loss(kW)		No-load current (%)	Impedance voltage (%)	Weight(kg)			S9 Dimension (mm) (L×W×H)
	Combine voltage (kV)			Load Loss(kW)				Weight(kg)
	High- voltage	Low- voltage		No-load	Load (75℃)			Machine Weight	Oil Weight	Total Weight
	High- voltage	Low- voltage		No-load	Load (75℃)			Machine Weight	Oil Weight	Total Weight
5	11 10.5 10 6.3 6	0.4	Yyno or Dyn11	0.05	0.20	4.0	40%	50	45	145	950×450×920
10				0.07	0.33	3.0		70	45	170	950×450×950
20				0.10	0.48	3.0		115	55	230	1020×490×980
30				0.13	0.60	2.1		170	55	260	1070×560×1000
50				0.17	0.87	2.0		230	65	340	1150×600×1020
63				0.20	1.04	1.9		260	70	400	1110×620×1050
80				0.25	1.25	1.8		310	85	460	1170×640×1090
100				0.29	1.50	1.6		360	90	525	1255×620×1100
125				0.34	1.80	1.5		425	95	600	1340×675×1120
160				0.40	2.20	1.4		480	115	405	1410×730×1145
200				0.48	2.60	1.3		580	135	830	1460×765×1235
250				0.56	3.05	1.2		670	145	960	1510×820×1260
315				0.67	3.65	1.1		775	190	1135	1590×890×1330
400				0.80	4.30	1.0		940	220	1365	1620×900×1380
500				0.96	5.10	1.0		1155	240	1595	1785×970×1420
630				1.20	6.20	0.9	4.5%	1310	275	1935	1830×1040×1460
800				1.40	7.50	0.8		1495	355	2345	2130×1170×1570
1000				1.70	10.30	0.7		1705	400	2620	2160×1250×1770
1250				1.95	12.80	0.6		1990	460	3050	2170×1280×1875
1600				2.40	14.50	0.6		1234	660	3690	2200×1280×1965
2000				2.80	19.80	0.6		2470	710	4110	2140×1630×2220
2500				3.30	23.00	0.6		2960	810	4980	2200×1740×2250
Note：High-voltage tapping range：±5% or±2×2.5%; Frequency：50Hz。

Advantages

Outstanding insulation performance: The adoption of a new insulation structure significantly enhances the short-circuit resistance.

High-end core materials: The core is made of high-quality cold-rolled silicon steel sheets, and the high-voltage winding uses high-grade oxygen-free copper wire.

Scientific structural design: The high-voltage winding adopts a multi-layer cylindrical design, providing greater stability.

Reliable fastening performance: All fasteners undergo professional anti-loosening treatment to prevent loosening during operation.

Outstanding energy efficiency: The high-efficiency and low-consumption characteristics significantly reduce electricity consumption and operational costs.

Authoritative qualification certification: 10KV oil-immersed power transformer has been recognized as a high-tech product promoted by the state, and its technical strength is highly acknowledged.

Use

Normal operating conditions for the transformer:

Altitude not exceeding 1000m;
Ambient temperature: maximum temperature: 40°C; average temperature of the hottest month: 30°C; outdoor minimum temperature: -25°C (if altitude >1000m, please specify in the order)

Special operating conditions for the transformer:
