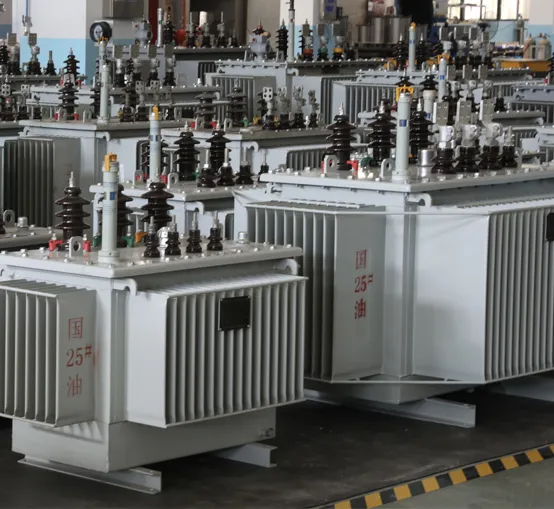

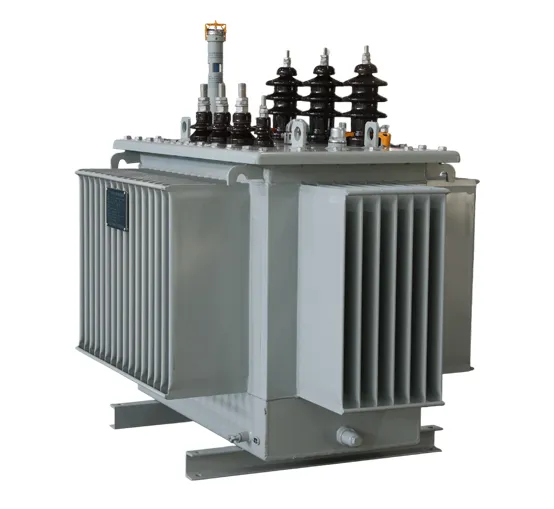

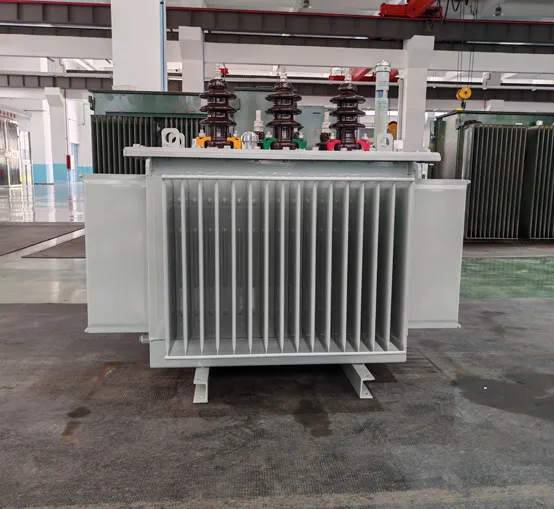

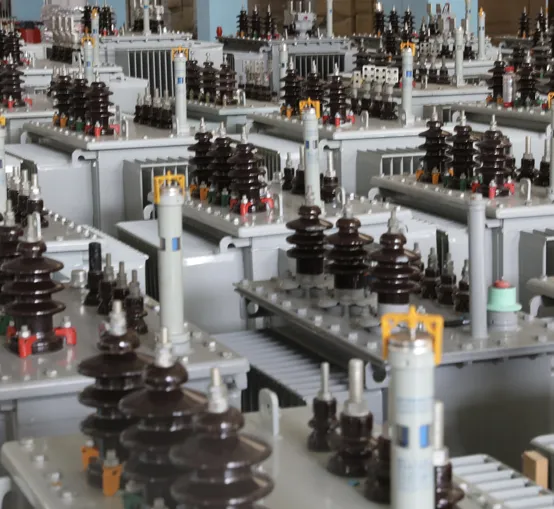

6KV-10KV Oil Immersed Distribution Transformer

Name: 6KV-10KV Oil Immersed Distribution Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

Three-phase oil-immersed distribution transformer is an energy-efficient product developed by our company in response to the national call for energy conservation and emission reduction, aiming to improve product performance and production efficiency. 10kv transformer performance meets the requirements of national standards. The product uses electrical steel as the core material, making it the most traditional type of transformer. The transformer structure can be divided into single-phase,three-phase three-column, and other types. Oil immersed transformer is commonly used for daily lighting and factory power, with a capacity generally at 2500kVA and below, and a voltage levelat6-10kVand below. 10kv transformer has the advantages of low comprehensive loss, low noise, and relatively high short-circuit resistance.

This series of10kv transformer products includes multiple series that can respectively meet the requirements of energy efficiency 1, energy efficiency 2, and energy efficiency 3. Customers can choose according to their different needs.

Products

Features

6kv transformer adopts a spiral coil with longitudinal oil passages for better internal heat dissipation.

Improving the effective support of the coil end face for stronger short-circuit current resistance.

6kv transformer uses a new lifting structure and body positioning structure to ensure greater reliability during long-distance transportation and operation.

The oil tank adopts a fully sealed structure,isolating the transformer from the atmosphere,preventing and slowing down oil degradation and insulation moisture,enhancing operational reliability,and requiring no maintenance during normal operation.

Parameters

Rated capacity	Rated voltage			Vector group	Load-loss（KW）		No-load current（%）	short circuit impedance	Wight （Kg）
（KVA）	H.V （KV）	Tapping range	L.V （KV）	Vector group	With-load（75°C）	No-load	No-load current（%）	%	Oil weight	Total weight
30	6KV 6.3KV 6.6KV 10KV 11KV 13.8KV	±5% Or ±2× 2.5%	0.4	Yyn0 Or Dyn11	0.6	0.08	0.28	4	96	375
50					0.87	0.1	0.25		120	446
63					1.04	0.11	0.23		145	520
80					1.25	0.13	0.22		168	592
100					1.5	0.15	0.21		196	695
125					1.8	0.17	0.2		221	780
160					2.2	0.20	0.19		235	920
200					2.6	0.24	0.18		271	1070
250					3.05	0.29	0.17		292	1250
315					3.65	0.34	0.16		321	1430
400					4.3	0.41	0.16		353	1750
500					5.1	0.48	0.15		412	2110
630					6.2	0.57	0.15	4.5	492	2390
800					7.5	0.70	0.14		576	2900
1000					10.3	0.83	0.13		709	3520
1250					12	0.97	0.12		760	4460
1600					14.5	1.17	0.11		920	5690

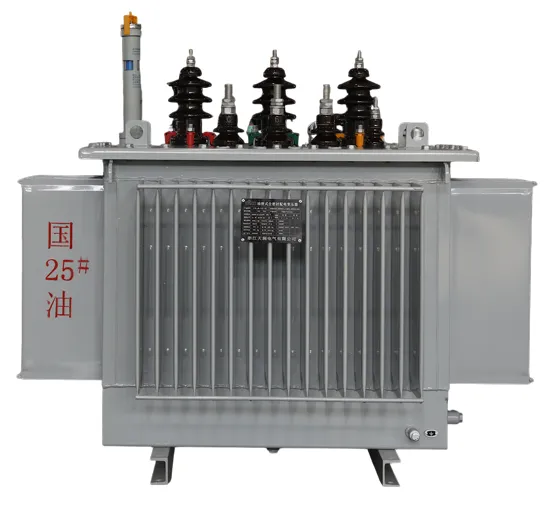

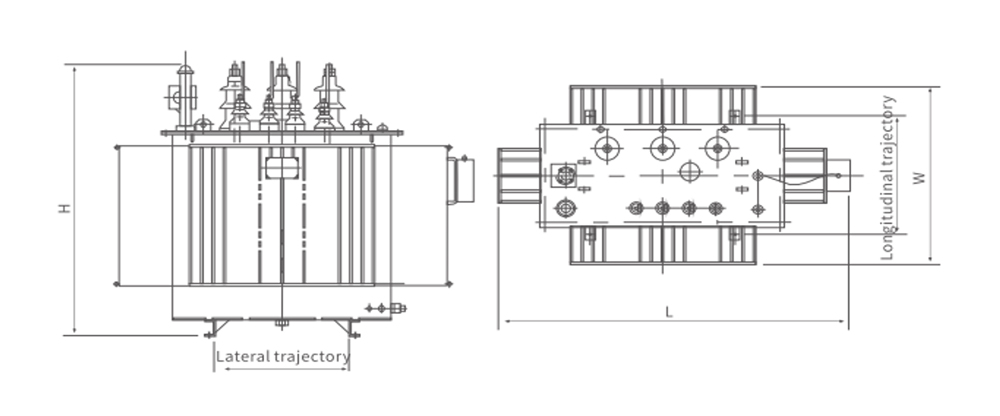

Diagram

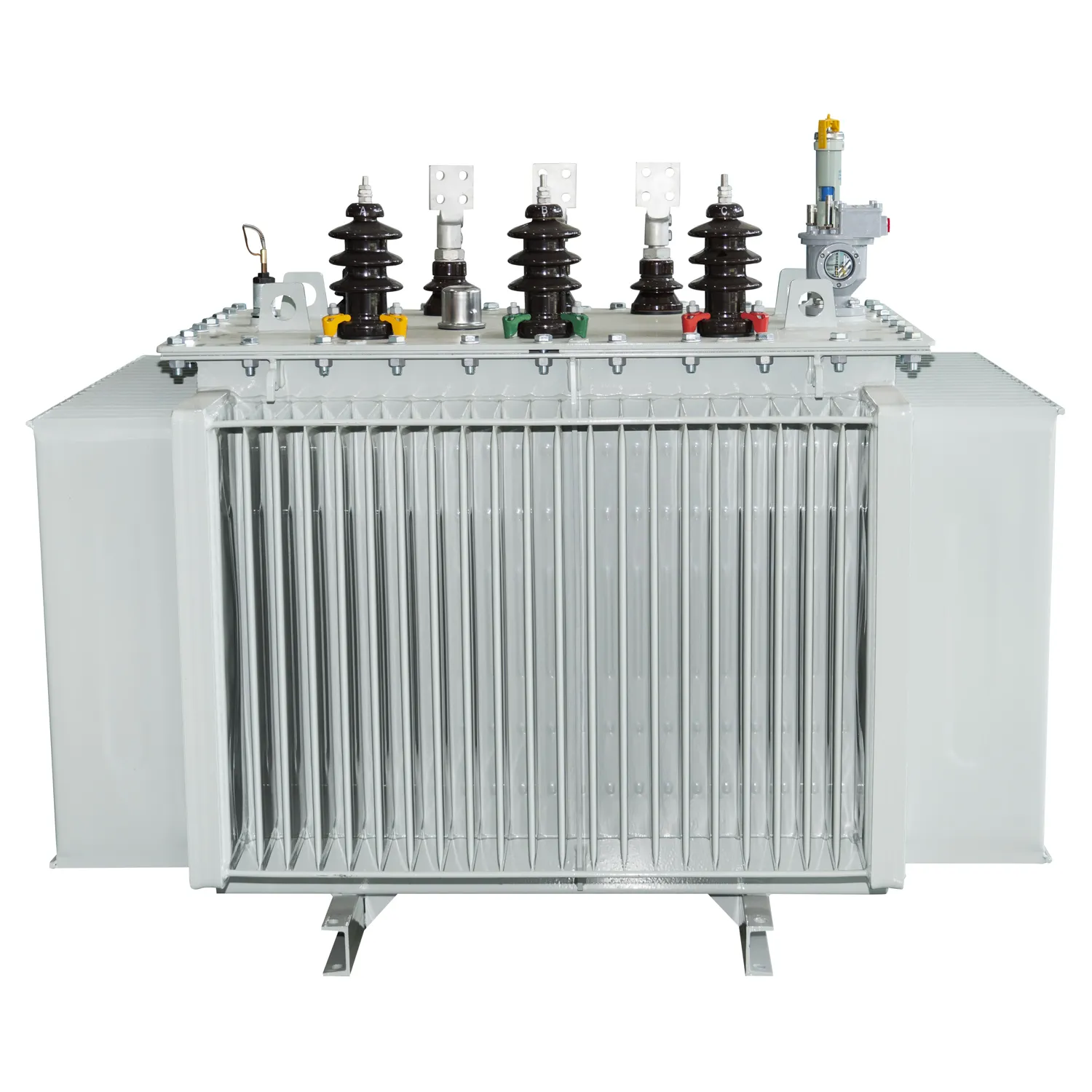

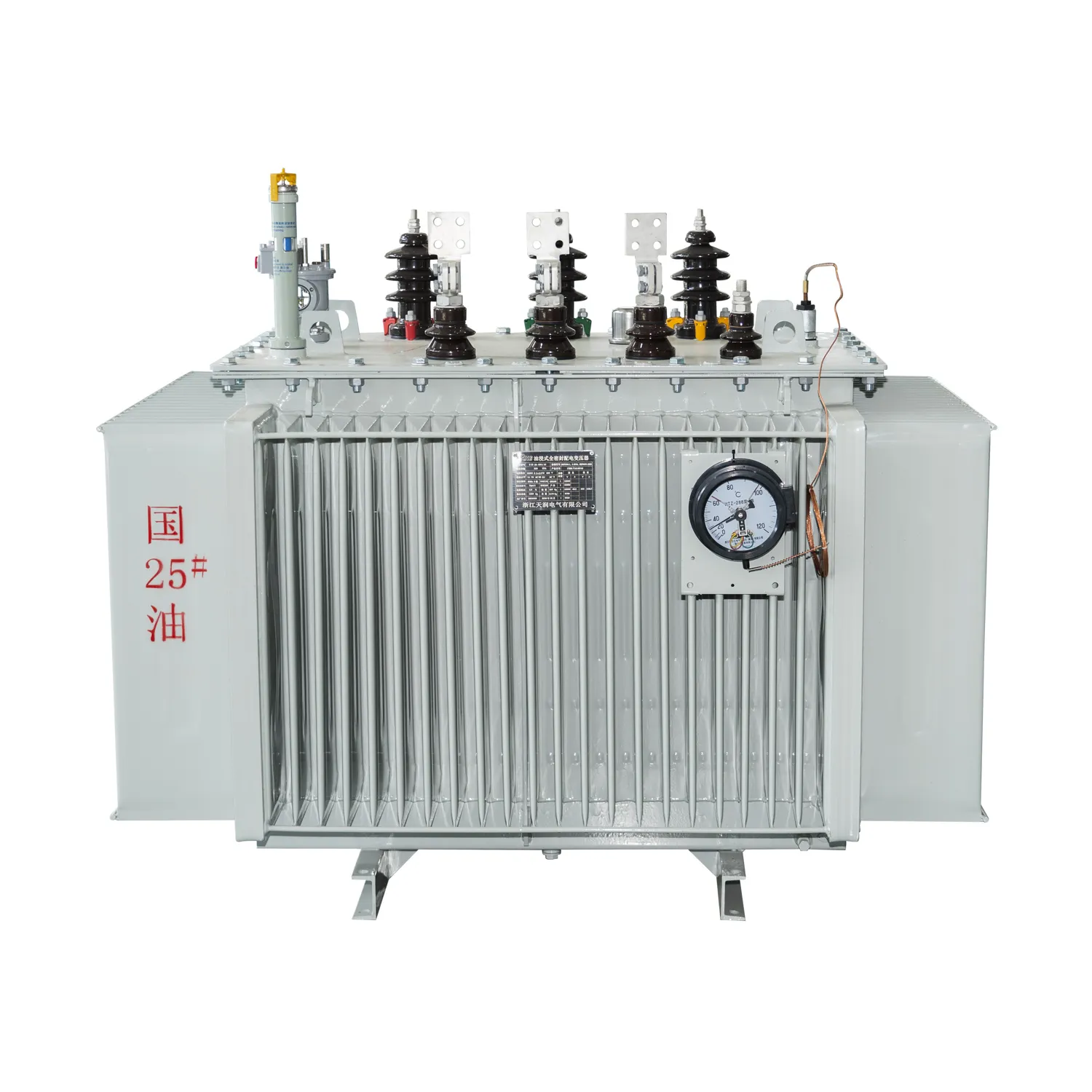

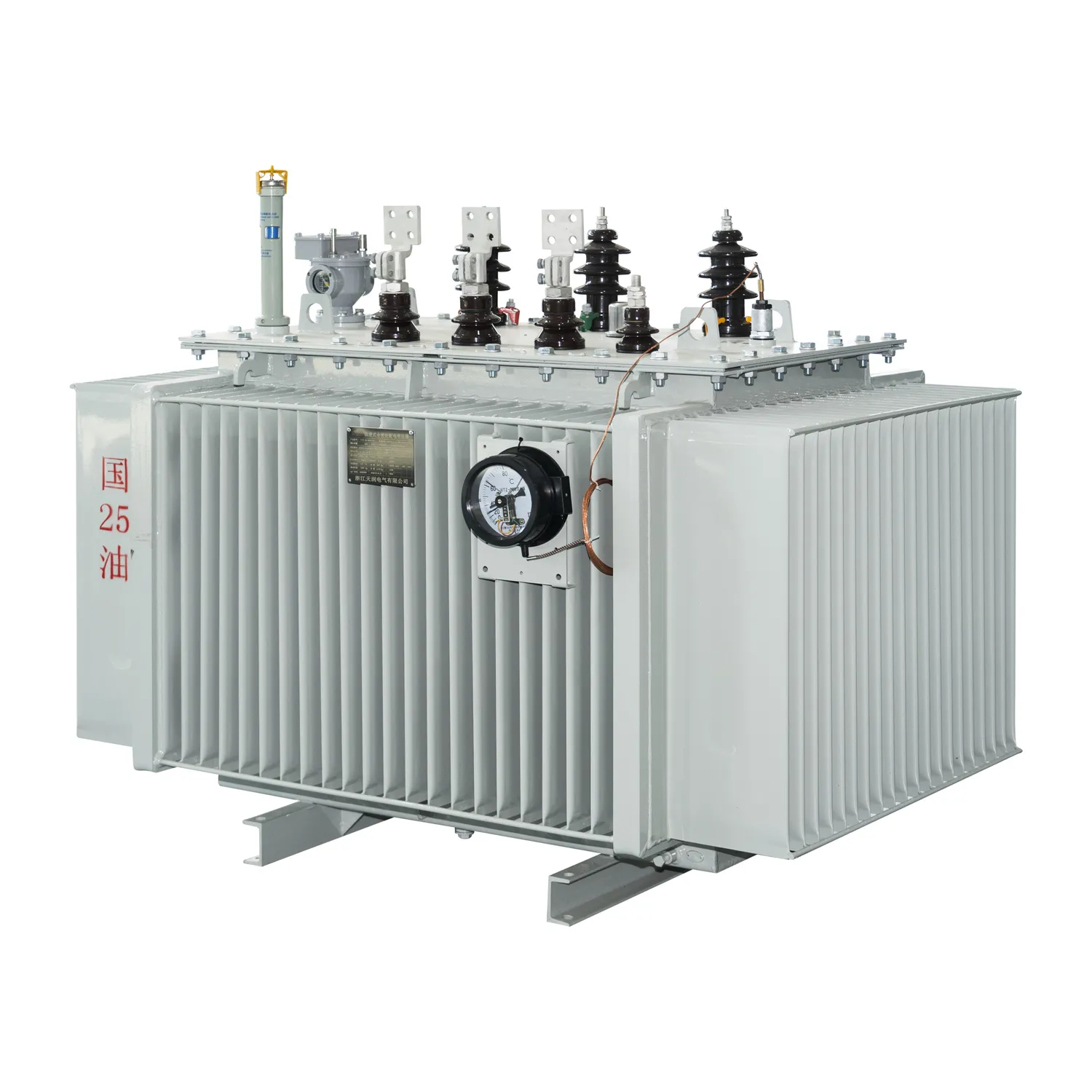

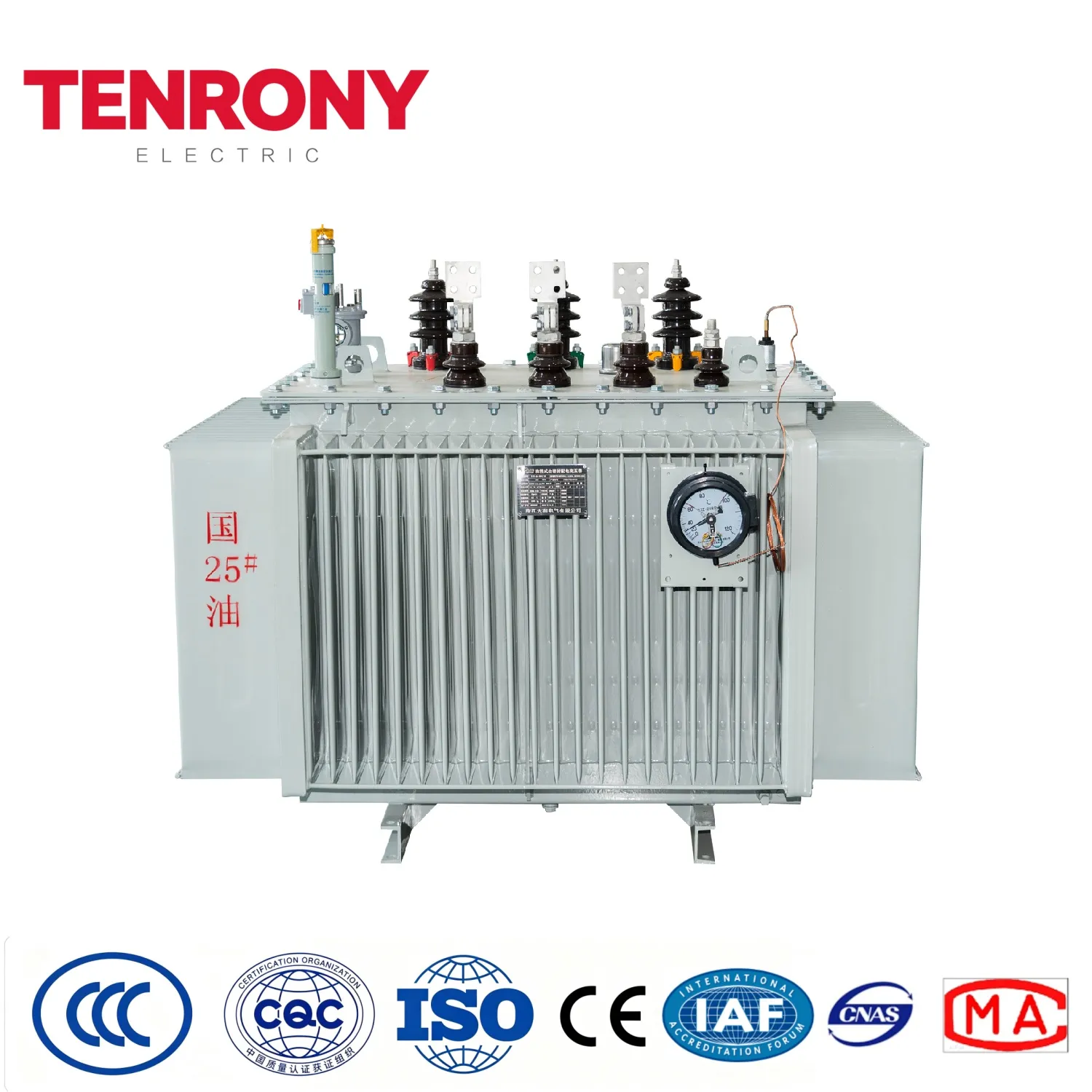

6KV-10KV Oil Immersed Power Transformer/Distribution Transformer

Benefits

6kv transformer also has many unique and reliable structures to serve you.
By selecting transformers with higher performance levels,10kv transformer will have a higher level of technical content.

Execution standards

In addition to meeting the requirements of the national standard GB 20052-2020 for product performance, this series of 10kv transformer products also complies with the following national standards: GB/T1094.1、GB/T1094.2、JB/T10088、GB/T1094.3、GB/T1094.5、GB/T25289、GB/T6451、GB/T7595、JB/T3887.
Note: All 10kv transformer transformer products produced by 10kv transformer company meet the latest versions of the national standards mentioned above

Use

Environmental conditions for use

Altitude: Not exceeding 1000m;
Ambient temperature: Maximum air temperature+40℃; Hottest monthly average temperature+30°C; Highest annual average temperature+20℃; Outdoor minimum temperature-25℃.
The waveform of the power supply voltage is approximately sinusoidal.
For a three-phase transformer, the three-phase power supply voltage should be roughly symmetrical.
Installation environment: There is no obvious contamination in the installation environment.
Ground acceleration for seismic events: Horizontal direction is less than 3m/s², vertical direction is less than 1.5m/s².
Special conditions of use: Any special conditions of use beyond the normal operating conditions of the transformer should be specified at the time of inquiry and ordering.
