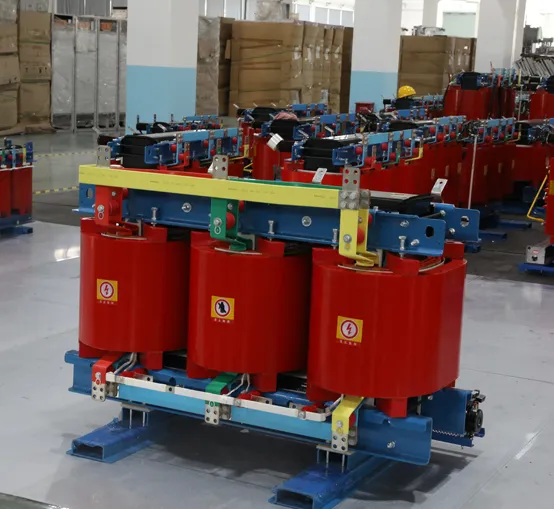

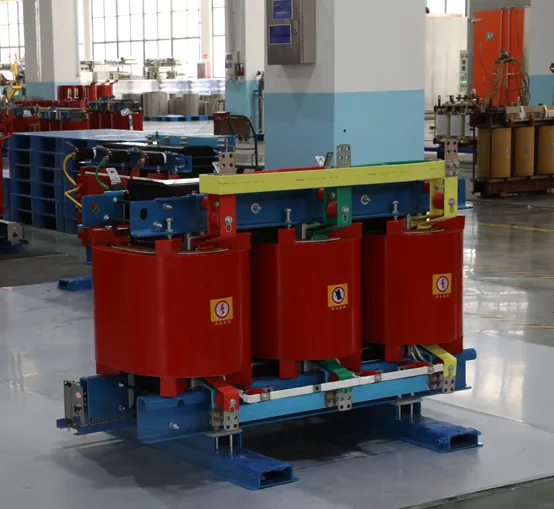

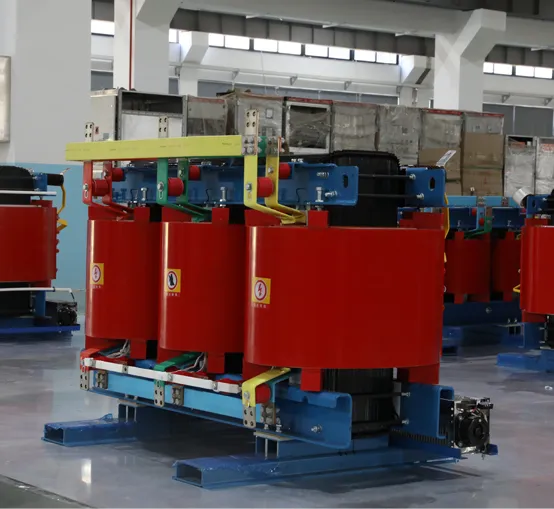

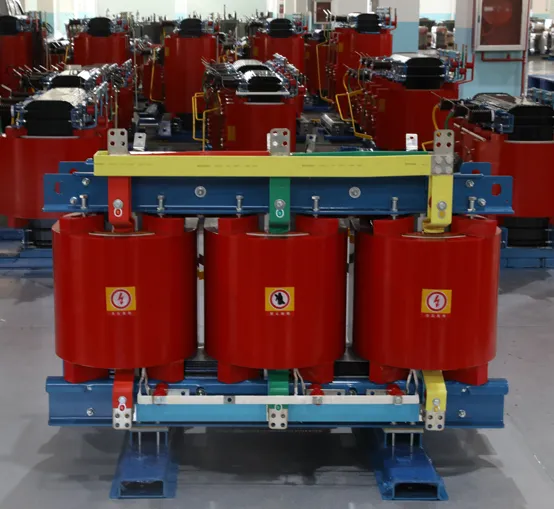

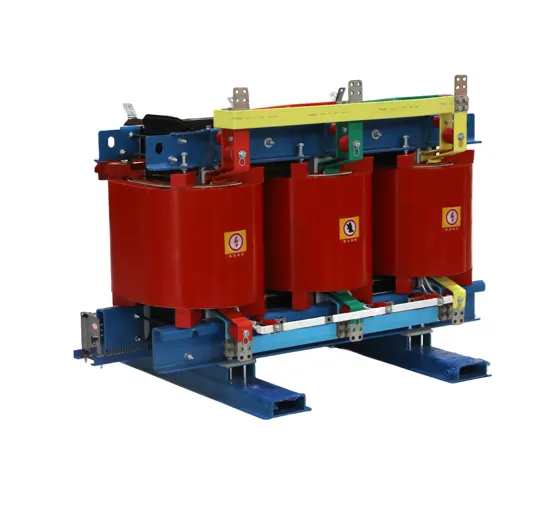

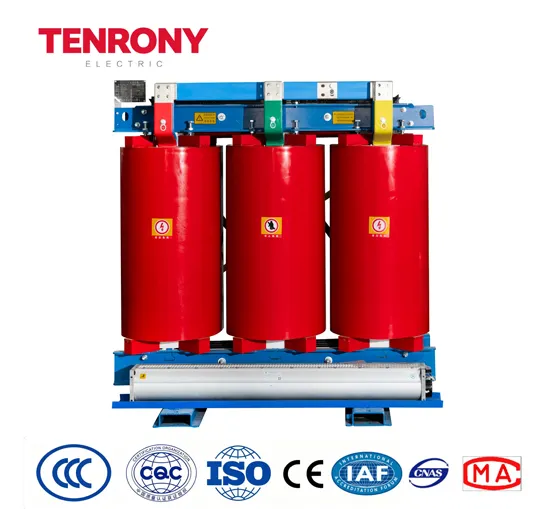

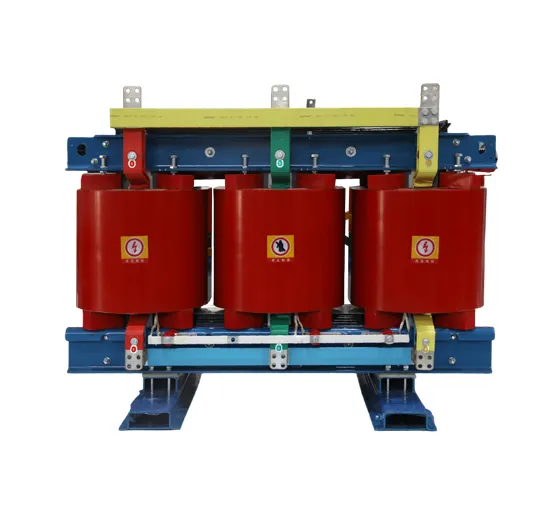

6KV-10KV Three Phase Dry Type Distribution Transformer

Name: 6KV-10KV Three Phase Dry Type Distribution Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

The 6KV-10KV three-phase dry-type distribution transformer is an energy-efficient product developed by 6KV-10KV three-phase dry-type distribution transformer company in response to the national call for energy conservation and emission reduction, aiming to improve product performance and production efficiency. 6KV-10KV three-phase dry-type distribution transformer performance meets the requirements of national standards. The product uses silicon steel as the core material, making it the most traditional type of transformer. The transformer structure can be divided into single-phase,three-phase, three-column, and other types. 6KV-10KV three-phase dry-type distribution transformer is commonly used for daily lighting and factory power, with a capacity generally ranging from 2500kVA and below, and a voltage level of 6-10kV and below. It features low comprehensive losses, low noise, and relatively high short-circuit resistance.

This series of products can meet the requirements of energy efficiency 1, energy efficiency 2, and energy efficiency 3. Customers can choose according to their different needs.

Products

Features

Technical and Basic Features

Technology Source: 6KV-10KV three-phase dry-type distribution transformer is a no-fill insulation dry-type transformer developed by introducing advanced foreign technology.

Coil Encapsulation: The coils are encapsulated with epoxy resin, featuring non-flammability, fire resistance, explosion-proof, maintenance-free, pollution-free, and compact size. 6KV-10KV three-phase dry-type distribution transformer can be directly installed at the load center and is suitable for various installation environments.

Performance Advantages

Structure and Process: The scientific and reasonable structural design and casting process effectively reduce partial discharge, lower operating noise, and enhance heat dissipation performance.

Load Capacity: Under forced air cooling conditions, 6KV-10KV three-phase dry-type distribution transformer can operate at 140% of the rated load for a long time, meeting higher load demands.

Intelligent Functions

Equipped with an intelligent temperature control device, 6KV-10KV three-phase dry-type distribution transformer features fault alarm, over-temperature alarm, over-temperature trip, and black start functions. At the same time, it can be connected to a computer via the Rs485 serial interface for centralized monitoring and control, improving intelligent management levels.

Parameters

Rated capacity	Rated Voltage（KV）			Vector group	Short circuit impedance	No-load loss （kW）		No-load current	Weight（kg）	Outline Dimentions	Carton size
（kVA）	H.V （KV）	Tapping range	L.V（KV）	Vector group	(%)	No-load	With load	(%)	Weight（kg）	L×W×H（MM）	L×W×H（MM）
30	6KV 6.3KV 6.6KV 10KV 11KV 13.8KV	±5% Or ±2× 2.5%	0.4	Yyn0 Or Dyna11	4	0.195	0.71	2.5	330	780×450×800	1200×900×1400
50						0.275	0.95	2.2	460	800×450×820	1200×900×1400
80						0.375	1.385	2.1	550	900×600×885	1200×900×1400
100						0.405	1.58	1.9	760	960×720×920	1200×900×1400
125						0.475	1.895	1.8	930	980×720×960	1200×900×1400
160						0.55	2.14	1.8	1050	1020×720×1000	1200×900×1400
200						0.63	2.54	1.6	1100	1060×720×1020	1200×900×1400
250						0.73	2.77	1.5	1400	1280×780×1060	1600×1250×1600
315						0.89	3.485	1.4	1500	1280×780×1060	1600×1250×1600
400						0.99	4.01	1.4	1700	1280×780×1060	1600×1250×1600
500						1.175	4.91	1.3	1900	1360×900×1060	1700×1350×1800
630						1.36	5.91	1.3	2310	1450×900×1100	1900×1350×1900
630					6	1.315	5.995	1.2	2380	1450×900×1100	1900×1350×1900
800						1.54	6.99	1.2	2500	1450×900×1150	1900×1350×1900
1000						1.79	8.17	1.1	2800	1500×900×1200	1900×1350×1900
1250						2.115	9.75	1.1	3100	1600×950×1230	2000×1500×2100
1600						2.48	11.8	1	3800	1600×1000×1280	2000×1500×2100
2000						3.36	14.535	0.9	4300	1700×1120×1300	2100×1600×2200
2500						4.05	17.27	0.8	5200	1700×1120×160	2100×1600×2200

Diagram

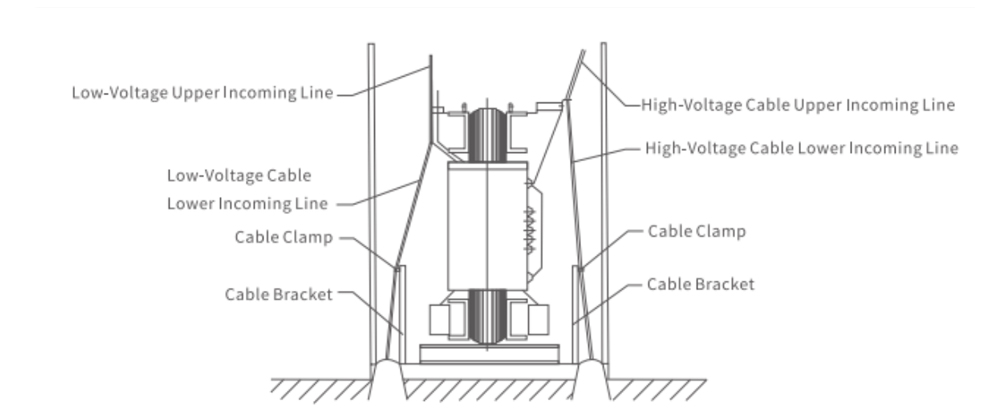

Schematic Diagram of Incoming and Outgoing Line Methods

6kV-10Kv Three Phase Dry Type Power Transformer/Distribution Transformer

Benefits

High-quality Materials and Craftsmanship

Iron Core: Imported high-quality cold-rolled silicon steel sheets are selected, employing a fully inclined joint structure. The core column is bound with F-grade non-woven tape, and the iron core surface is sealed with insulating resin paint to prevent moisture and rust, thus reducing no-load loss, no-load current, and iron core noise. The clamps and fasteners undergo special surface treatment, enhancing the product's appearance and quality.
High-voltage winding: Utilizing vacuum pressure impregnation with epoxy resin and filler, significantly reducing partial discharge and enhancing the electrical strength of the coil. Both the inner and outer walls of the winding are filled with fiberglass mesh plates, strengthening the mechanical integrity of the coil and increasing the product's ability to withstand sudden short circuits, ensuring the winding will never crack.
Low-voltage winding: Employing a foil-type structure to solve the problem of axial spiral angle when winding with wire, ensuring a more balanced turn-to-turn voltage. Simultaneously, the coil adopts axial cooling ducts to enhance heat dissipation.DMD epoxy resin pre-impregnated tape is used between winding layers, enabling overall solidification and shaping.
Temperature Control System and Air Cooling System: Utilizing cross-flow top-blowing cooling fans, which feature low noise, high wind pressure, and an aesthetically pleasing appearance, enhancing the transformer's overload capacity. The temperature control is achieved through an intelligent temperature controller, improving the operational safety and reliability of the transformer.
Manufacturing Process: The coils are wound on a high-precision winding machine, and the low-voltage winding adopts a foil-type winding structure. When the transformer capacity is large, a ventilation duct is utilized. After the winding process is completed, vacuum drying is performed. The entire casting and curing process is strictly operated in accordance with the process requirements, with all processes requiring rigorous monitoring and adjustments as necessary. The precision casting process ensures that the coils are free from air bubbles and voids, resulting in the production of high-quality transformers.

Use

Execution standards

In addition to meeting the requirements of the national standard GB20052-2020 for product performance, this series of products also complies with the following national standards: GB/T10228、GB/T1094.11、JB/T10088GB4208.
Note: The transformer products produced by our company meet the latest versions of the national standards mentioned above.
