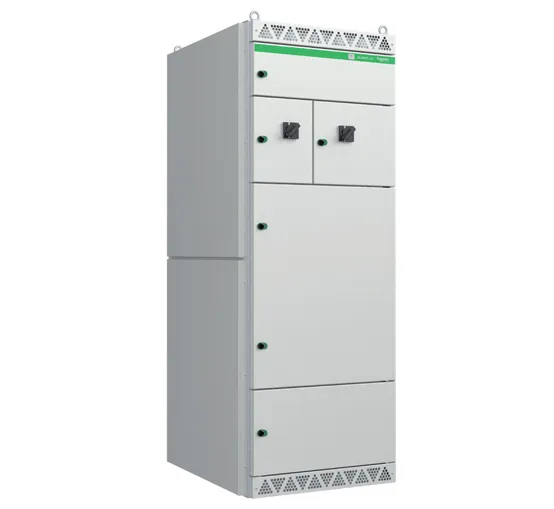

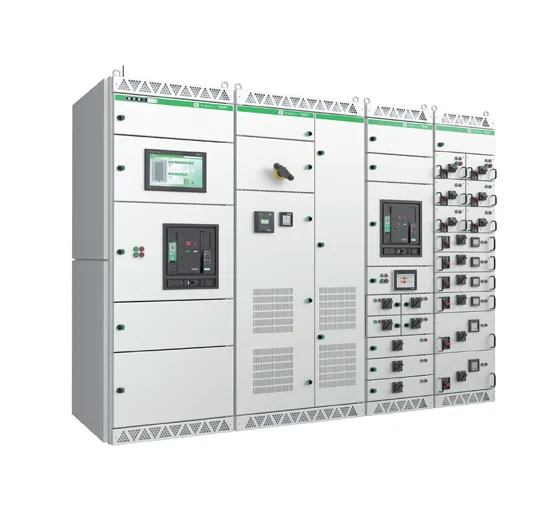

Blokset5000 Presense Low-Voltage Switchgear System（Schneider)

Name: Blokset5000 Presense Low-Voltage Switchgear System（Schneider)
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

The PreSense low-voltage switchgear system solution is a new generation of BlokSeT 5000 PreSense low-voltage switchgear equipment authorized by Schneider Electric to Tianrun Company. Blokset schneider inherits Schneider Electric's advanced technology and manufacturing experience in the field of low-voltage electrical and low-voltage switchgear, and combines strict experimental verification and industry practice to ensure a high level of performance in reliability and safety. BlokSeT 5000 provides comprehensive basic protection functions and is suitable for various applicatioBn scenarios such as power distribution protection, motor starting and protection, and reactive power compensation. Low voltage switchgear fully considers the actual needs of customers and is specially designed for dual power supply solutions in industries such as buildings, residences, and other industries.

Products

Features

Fixed partition cabinet body

Fixed partition structure, simple and reliable

Fixed wiring, higher electrical connection quality

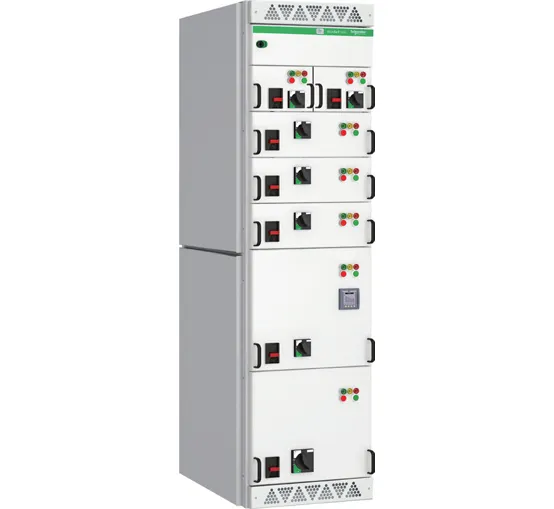

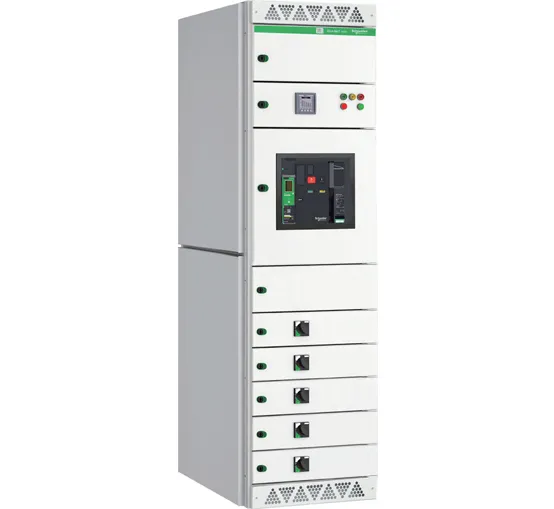

Extractable and plug-in circuit breakers

Blokset schneider have obvious visible breaking points to protect maintenance personnel

Simple operation and strong interchangeability

Modular structure

Blokset Schneider Electric is easy to select and configure

Simplifies production processes such as processing and assembly

Classic double-jaw design

Avoids wear on the busbar and reduces maintenance costs

Simplifies the number of primary plug-ins and optimizes assembly efficiency

No need to power off, making system upgrades simple and convenient

Fully consider customer needs

blokset schneider electric multiple drawer sizes are available, and can be customized according to requirements

Optimized the internal space of the drawers, allowing for more secondary components to be accommodated

Three-position indicators are clear and distinct, preventing misoperation

Parameters

General Data
Application fields		Power Distribution
		Motor control
Reference Standard		GB7251.1/12
Installation site		Indoor
Operating ambient temperature(℃)		-5 to 40
Operating ambient humidity(40℃)		≤50%
Altitude(m)		≤2000

Electrical parameter
Rated operational voltage(VAC)		400
Nominal insulation voltage(VAC)		1000
Rated impulse withstand voltage(kV)		12
Overvoltage category		IV
Pollution degree		3
Rated frequency(Hz)		50/60
Horizontal busbar	Rated current(A)	5000
	Rated short-time withstand current(kA/1s)	42/50/65/85/100
	Rated peak withstand current(kA)	88/105/143/187/220
Vertical busbar	Rated current(A)	2350
	Rated short-time withstand current(kA/1s)	30/50/65
	Rated peak withstand current(kA)	63/105/143
Earth system		TT-IT-TNS-TNC
Maximum inlet and outlet switch(A)		5000
Maximum motor capacity(kW)		160
Reactive power compensation(kvar)	Natural Ventilation	200
Reactive power compensation(kvar)	Forced ventilation	400

Machanical parameter
Overall height(mm)		2200
Effective height(mm)		2000
width(mm)		600/800/1000/1200/1600
depth(mm)		1000
Separation types		Form2b/3b
Protection level		IP 30/31/40/41
Canbinet surface protection		Electrstatic spraying of epoxy resin powder
Canbinet standard color		RAL9003

Benefits

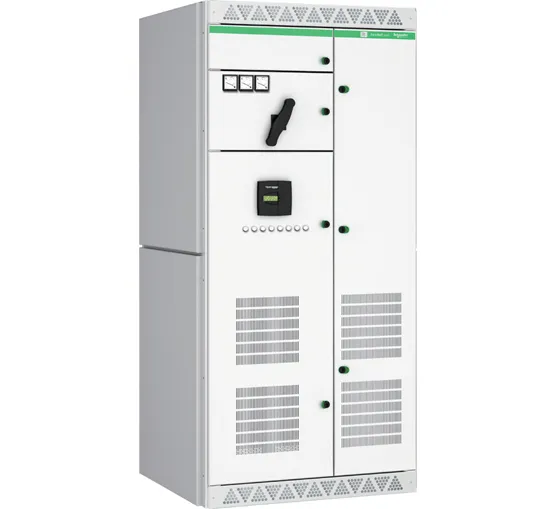

Schneider Electric's brand-new generation of capacitor products

Average lifespan up to 100,000 hours
Compact in shape and small in size,schneider electric blokset is easy to install
Excellent terminal design, fully ensuring electrical safety

Standard dual power supply solution

Tailored dual power supply solution for buildings, residences, and industrial sectors
One size, maintaining a minimalist design concept
Flexible wiring options to meet load requirements in various scenarios

WATSN Series PC Grade Automatic Transfer Switch

Compact and high-quality, with great potential
Energy-saving and efficiency-increasing, stable and safe
Fully equipped with the TIDE 2.0 intelligent control system platform

Use

Design Standards

Comply with national standards such as GB7251.1/12
All use Schneider Electric switchgear components to ensure the system operates in good condition
Excellent separation form, fully ensuring the safety of personnel and equipment
Busbar and functional units are isolated
Functional units are isolated from each other
Output terminals are isolated from functional units

The quality and reliability of BlokSeT 5000 not only rely on Schneider Electric's key technologies and experience in the low-voltage electrical field, but also on professional manufacturers. Schneider Electric closely cooperates with professional manufacturers in key links such as production, assembly, and inspection to jointly ensure the reliable quality of BlokSeT 5000.
