Compact Gas-Insulated Switchgear

Name: Compact Gas-Insulated Switchgear
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

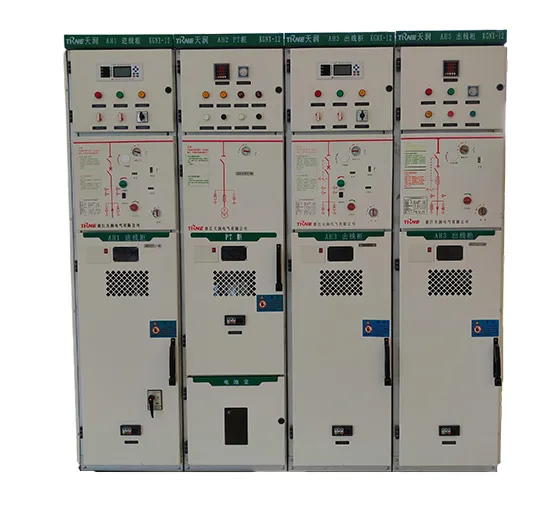

The fully insulated and fully enclosed ring main unit switchgear is independently developed by Tianrun Company. The high voltage gas insulated switchgear adopts a modular design and can be arranged arbitrarily according to different design schemes, achieving a perfect combination of the common box unit and the expansion unit, meeting the flexible usage requirements of compact switchgear in various secondary transmission and distribution substations.

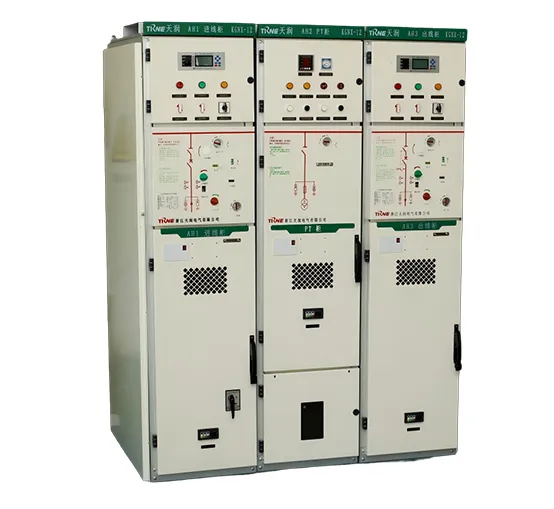

This GIS gas insulated switchgear is a completely sealed system. All live parts and switches are enclosed in a stainless steel shell, unaffected by the environment. The compact gis switchgear features reliable operation, safety guarantee, compact structure design, small space occupation, maintenance-free, and long service life.

Our high voltage switchgear for sale has passed the type test certification of the national high-voltage electrical appliance test center and is widely used in small secondary distribution stations, box-type switch stations, industrial and mining enterprises, airports, railways, commercial areas, high-rise buildings, expressways, subways, tunnels, and other places with harsh natural conditions.

Products

Features

Excellent Performance

Rationally designed to meet the functional requirements in practical applications.

Reliable power supply to ensure the stable operation of the power distribution system.

Compact structure and small size to save installation space.

Easy to install and operate flexibly, reducing the difficulty of construction and use.

High cost performance, providing superior performance while offering a price advantage.

Advanced Technical Concepts

Adhering to the design concepts of green and environmental protection in terms of ideas and concepts,gas insulated switchgear meets the current demand for environmentally friendly products.

Parameters

The Main Technical Parameters

Items		Unit	Circuit-breaker unit	Load switch unit
Rating voltage		kV	12
Rating frequency		Hz	50
Rating capacity		kA	630
1Min power frequency withstand voltage	To the ground/interphase	kV	42
	Fracture		48
Lightning impulse withstand voltage	To the Ground/Interphase	kV	75
	Fracture		85
Rating short-time withstand current and duration	Main circuit	kA	20/4S
	Ground circuit		17.4/2S
Rating Peak withstand current	Main circuit	kA	50
	Ground circuit		43.5
Rating short circuit current(peak)		kA	50
Rating short circuit breaking current		kA	20	/
Rating short circuit breaking current times		Times	30	/
Rating operation sequence			0-0.3S-CO- 180S-CO
Rating cable/line charging breaking test		kA	C2level	/
Interphase ground fault breaking current			17.4	/
Rating active loans breaking current		A	/	630
Rating closed loop breaking current		A	/	630
Rated cable Charing breaking test		A	/	10
5%Rated active load breaking current		A	/	31.5
Grounding switch close times		Times	5
loop resistance		uΩ	≤140
Rated gas pressure(20℃Presure)		MPa	0.02
Mechanical life	Vacuum switch	Times	10000
	Isolator		3000
	Earthing switch		3000
Protection level		Enclose	IP4X
		Gas box	IP67
Operational power supply		V	AC220/DC220/DC110/ DC48/DC24
Rated annual leakage rate		%	≤0.1
Cabinet Size（single circuit）		mm	420×822x1420
Tolerance to internal arc fault		kA/s	20/0.5
Moisture content in dry air		ppm	≤150

Benefits

Wide Applicability

Gas insulated switchgear is suitable for three-phase AC 50Hz, 12KV rated voltage distribution systems and can be applied in various places such as smart grids, urban distribution, building complexes, industrial enterprises, and other load centers' distribution stations and box-type switchgear stations.

Adapting to Market Trends

As switchgear with little or no SF6, gas insulated switchgear conforms to the future technological development direction and has a promising market prospect.

Use

Normal use conditions

Ambient air temperature: upper limit +40℃, lower limit -40℃
Humidity: the daily average value of relative humidity shall not exceed 95%; the monthly average value shall not exceed 90%
Water vapor pressure: the daily average value shall not exceed 2.2 kPa; the monthly average value shall not exceed 1.8 kPa
Altitude not exceeding 2000m.
The ambient air is not obviously contaminated by dust, smoke, corrosive and flammable gases, vapors, or salt fog.
The amplitude of electromagnetic interference induced in the secondary system does not exceed 1.6 kV.
