Medium Voltage High Voltage Power Distribution Transformer

Name: Medium Voltage High Voltage Power Distribution Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

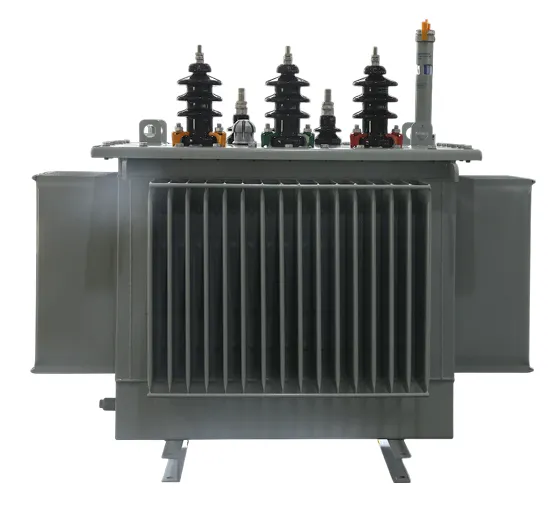

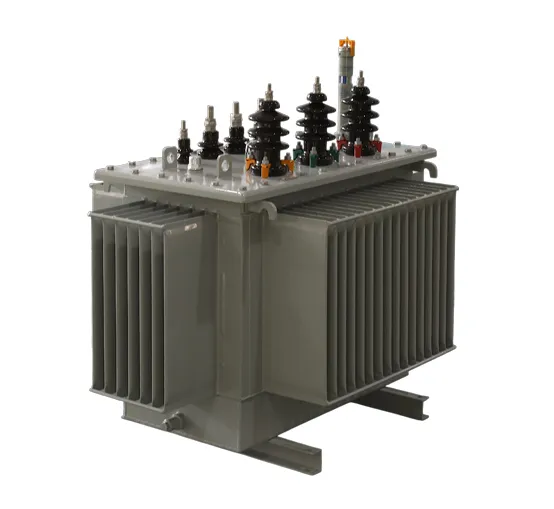

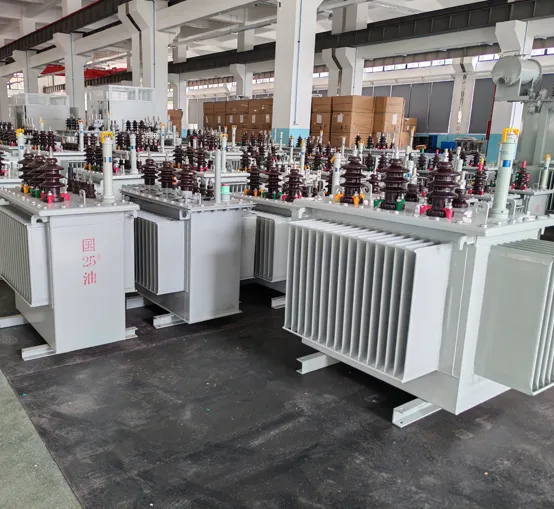

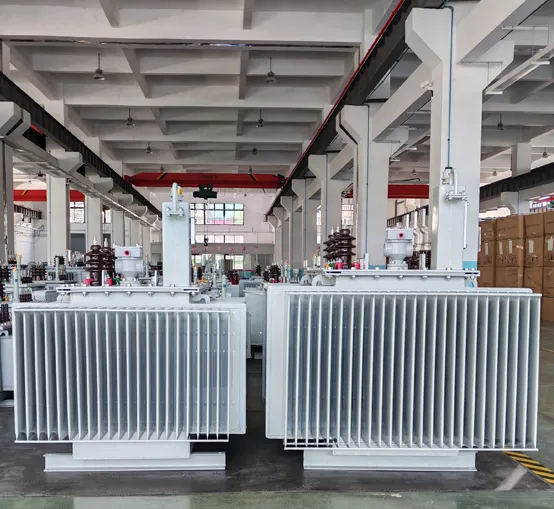

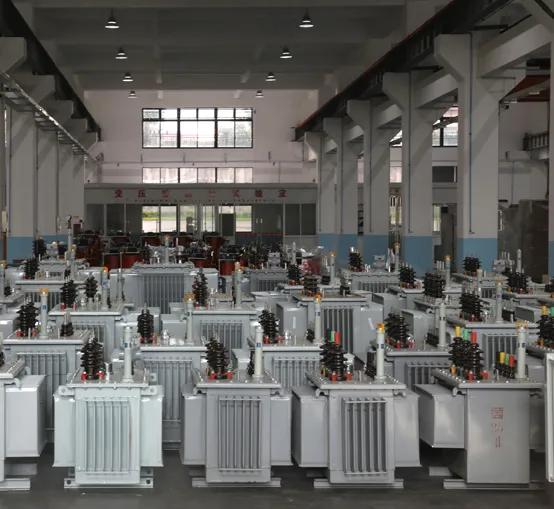

The S11 high voltage electricity transmission series of fully sealed oil-immersed power transformers developed and produced by high voltage electricity transmission company has the advantages of low loss, low noise, and high efficiency, which can achieve good energy-saving effects and reduce pollution. Compared with ordinary oil-immersed transformers, fully sealed transformers eliminate the oil storage tank. The change in oil volume is automatically regulated and compensated by the elasticity of the corrugated plates in the corrugated oil tank. The oil immersed power transformer is isolated from the air, preventing and slowing down the deterioration of oil and insulation aging, enhancing operational reliability, and requiring no maintenance during normal operation.

Products

Features

High voltage electricity transmission bases on traditional structure and mature technology, our company has made many improvements, including.

Adopting a spiral coil with longitudinal oil passages for better internal heat dissipation.

Improving the effective support of the coil end face for stronger short-circuit current resistance.

High voltage electricity transmission uses a new lifting structure and body positioning structure to ensure greater reliability during long-distance transportation and operation.

The oil tank adopts a fully sealed structure, isolating the transformer from the atmosphere, preventing and slowing down oil degradation and insulation moisture, enhancing operational reliability, and requiring no maintenance during normal operation.

Parameters

Distribution Transformer
Rated capacity（KVA）	Rated Voltage			Vector group	Load-loss （KW）		No-load current （%）	Short circuit impedance（%）	Weight （Kg）
Rated capacity（KVA）	H.V （KV）	Tapping range	L.V （KV）	Vector group	Load（75°C）	No-load	No-load current （%）	Short circuit impedance（%）	Oil weight	Total weight
30	6KV 6.3KV 6.6KV 10KV 11KV 13.8KV	±5% Or±2× 2.5%	0.4	Yyn0 Or Dyn11	0.6	0.09	2.1	4	88	336
50					0.87	0.13	2		105	405
63					1.04	0.15	1.9		131	478
80					1.25	0.175	1.8		158	562
100					1.5	0.2	1.6		186	668
125					1.8	0.235	1.5		208	720
160					2.2	0.27	1.4		216	860
200					2.6	0.325	1.3		252	980
250					3.05	0.395	1.2		279	1150
315					3.65	0.475	1.1		303	1320
400					4.3	0.565	1		339	1610
500					5.1	0.675	1		395	1986
630					6.2	0.805	0.9	4.5	476	2286
800					7.5	0.98	0.8		552	2750
1000					10.3	1.155	0.7		680	3360
1250					12	1.365	0.6		702	4270
1600					14.5	1.65	0.6		890	5380
2000					17.15	1.95	0.5		960	6100
All transformer products of Tenrony can be customized. please tell us your requirements and our designer team will tailor the most suitable products for you.

Benefits

High voltage electricity transmission also have many unique and reliable structures to serve you.
By selecting transformers with higher performance levels, they will have a higher level of technical content.

In addition to meeting the requirements of the national standard GB 20052-2020 for product performance, this series of products also complies with the following national standards: GB/T1094.1, GB/T1094.2、JB/T10088、GB/T1094.3、GB/T1094.5、GB/T25289、GB/T6451、GB/T7595、JB/T3887.

Note: All transformer products produced by our company meet the latest versions of the national standards mentioned above.

Use

Environmental conditions for use

Altitude: Not exceeding 1000m;
Ambient temperature: Maximum air temperature+40°C; Hottest monthly average temperature+30℃; Highest annual average temperature+20℃; Outdoor minimum temperature-25℃.
The waveform of the power supply voltage is approximately sinusoidal.
For a three-phase transformer, the three-phase power supply voltage should be roughly symmetrical.
Installation environment: There is no obvious contamination in the installation environment.
Ground acceleration for seismic events: Horizontal direction is less than 3m/s², vertical direction is less than 1.5m/s².
Special conditions of use: Any special conditions of use beyond the normal operating conditions of the transformer should be specified at the time of inquiry and ordering.
