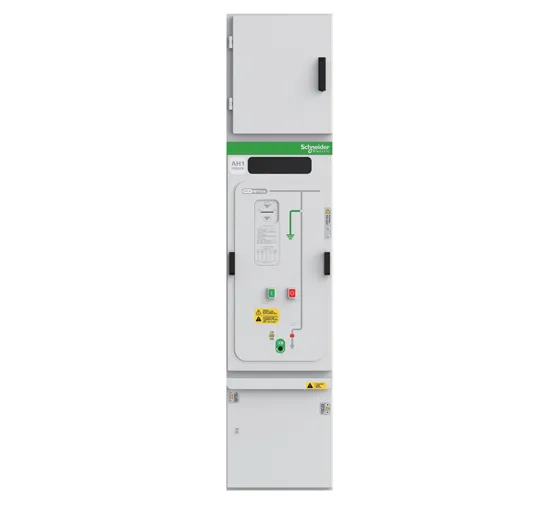

MVnex550（Schneider）Switchgear

Name: MVnex550（Schneider）Switchgear
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

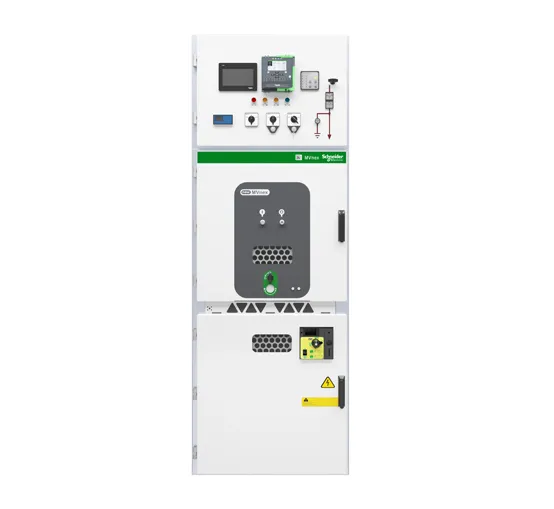

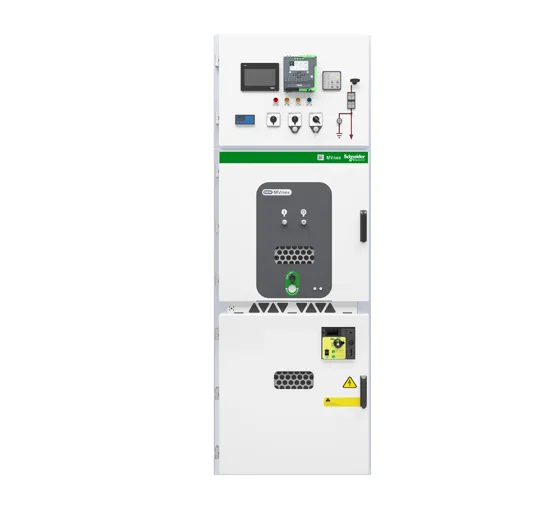

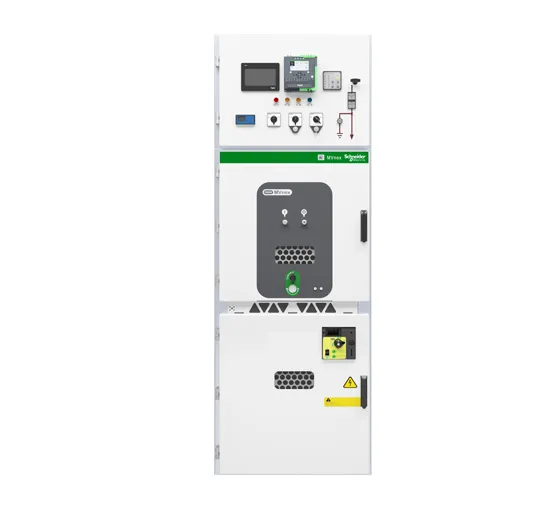

MVnex armored metal-enclosed switchgear is a high-performance distribution device meticulously designed by Schneider Electric and has been authorized by Tenroney Electric Co., Ltd. This schneider high voltage switchgear is equipped with the high-performance HVX solid-sealed vacuum circuit breaker. The high voltage switchgear for sale features advanced technical parameters. comprehensive configuration options, and diverse primary wiring methods, capable of meeting the application requirements of various users and different industries. The schneider MV switchgear MVnex 12kV series offers two types of grounding switch operation methods: with an operating box and without an operating box, to adapt to diverse on-site operation needs.

Products

Features

Electrically operated grounding switch

The grounding switch is equipped with a rapid closing mechanism, featuring short-circuit closing capability and with opening and closing indicators.

Through the observation window, the status of the grounding switch can be observed.

The overall design of the grounding switch is compact and has a small external dimension.

All copper parts of the grounding switch are made of low-resistance materials, ensuring reliable performance.

Electric chassis trolley

Gear transmission, stable and reliable

Integrated manual priority and interlock for door closing operation, simple to install

Dual mechanical and electrical overload protection

Long service life: 5000 times

Low maintenance

Suitable for circuit breakers and disconnectors

Parameters

Electrical Specification ( in accordance with IEC 60298 and GB3906)
Rated insulation level
Rated voltage	kV rms	12
Power frequency withstand voltage(50Hz,1min)	kV rms	42
lighting impulse withstand voltage (1.2/50)	kV peak	75
Rated current
Busbar	A rms	630 〜 4000
Circuit Breaker	A rms	630 〜 4000
Contactor	A rms	400
Rated thermally stable withstand current (4s)	kA rms	25-31.5-40
Rated peak withstand current	kA peak	63-80-100
Protection level
Enclosed		IP4X
Separate room		IP2X

Rated Parameter	Width	Hight	Depth
Rated Parameter	Width	Hight	Up in line	Down into line
400A（contactor）	650	2250	1600	1400
630/1250A-31.5kA	650	2250	1600	1400
630/2000A	800	2250	1600	1400
2500/3150A	1000	2250	1600	1400
4000A	1000	2250	1600	1600

Benefits

The design of Schneider Electric's MVnex 12kV comprehensively employs various advanced methods such as computer-aided design, synthetic testing, and dynamic simulation etc.
The design of MVnex 12kV fully takes into account the actual situations in installation, operation, and maintenance:
Reliability: Users will benefit from the continuously improved operational reliability of Schneider Electric Group over the past 50 years.
Convenience: Local manual operation is extremely simple, and the schematic diagram on the front panel of each switchgear makes the operation procedure and opening/closing operation very easy to understand.
Safety: Complete mechanical and electrical interlocks effectively prevent misoperation.

Use

Normal operating conditions (in compliance with IEC60694 and GB11022)

Indoor equipment

Ambient air temperature

Minimum temperature: -15℃
Maximum temperature: +40℃
24-hour average not exceeding +35℃
Altitude: ≤ 1000m

Humidity (relative humidity)

Daily average: ≤ 95%
Monthly average: ≤ 90%

Special operating conditions

Must obtain the consent of the manufacturer and the user first
Altitude above 1000m
For higher altitudes, feasible solutions should be determined based on the actual situation as described
Increased ambient temperature
Reduced the current carrying capacity
Auxiliary cooling equipment should be provided for heat dissipation
Climate conditions
Measures should be taken to prevent the occurrence of condensation
Corrosion or other damage risks should be avoided
