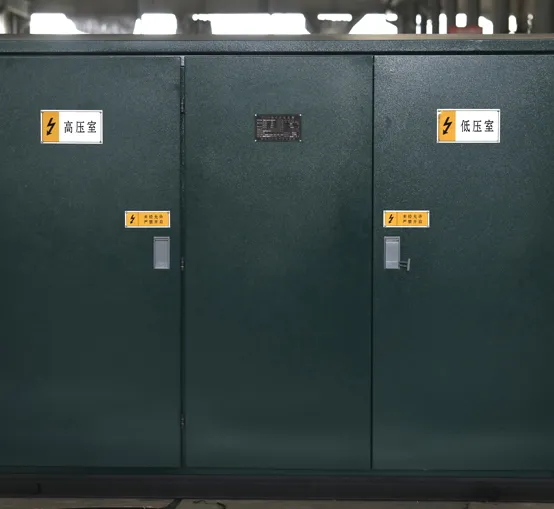

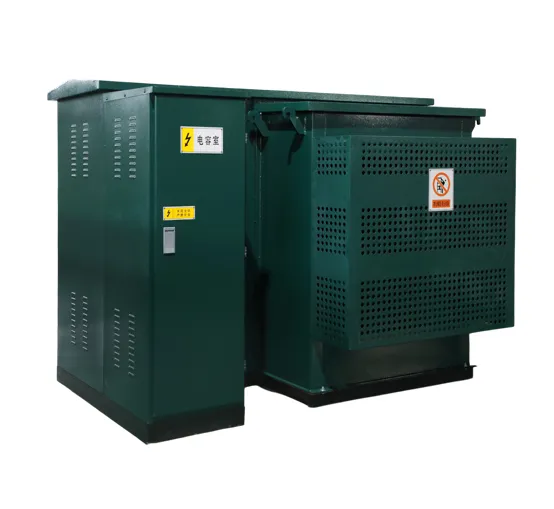

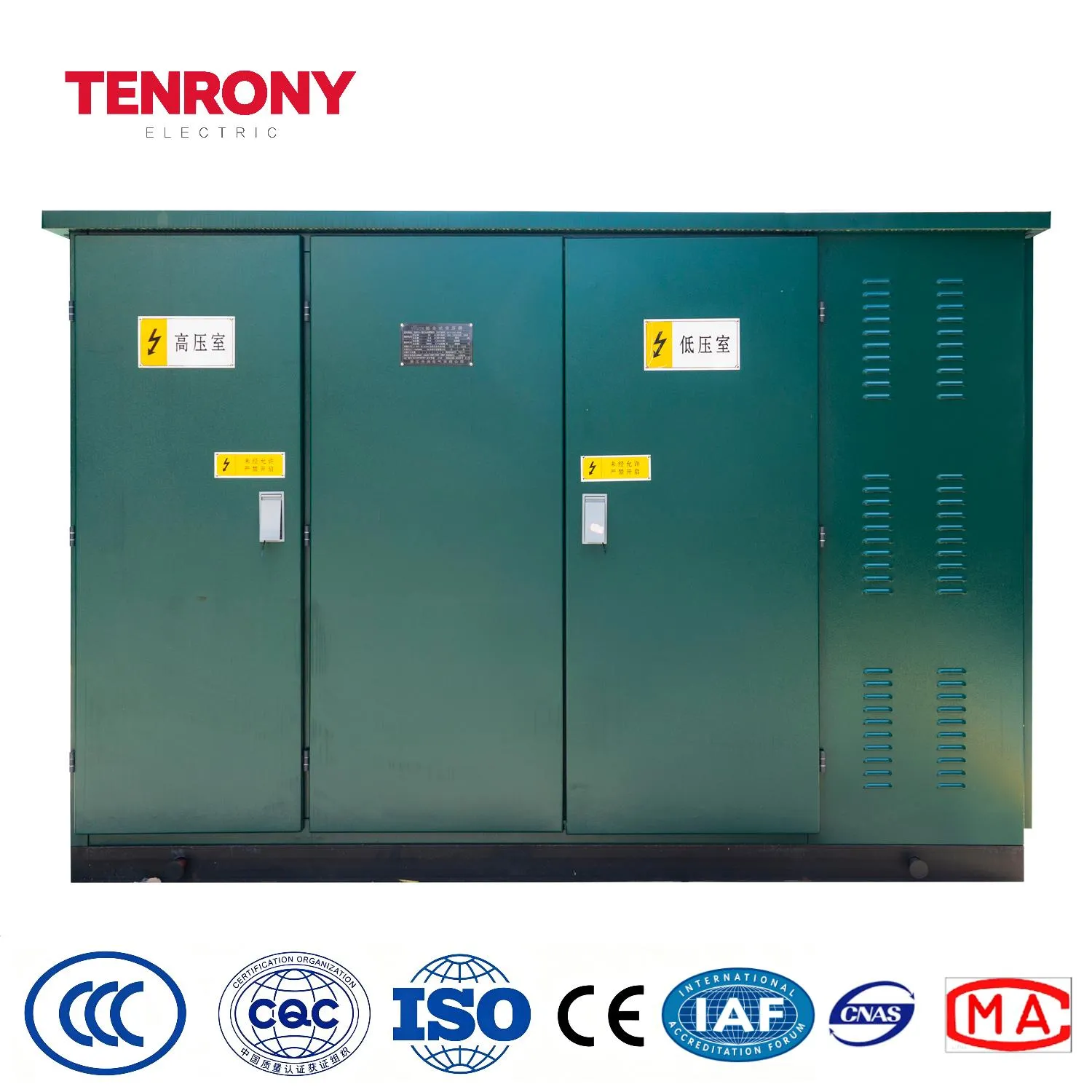

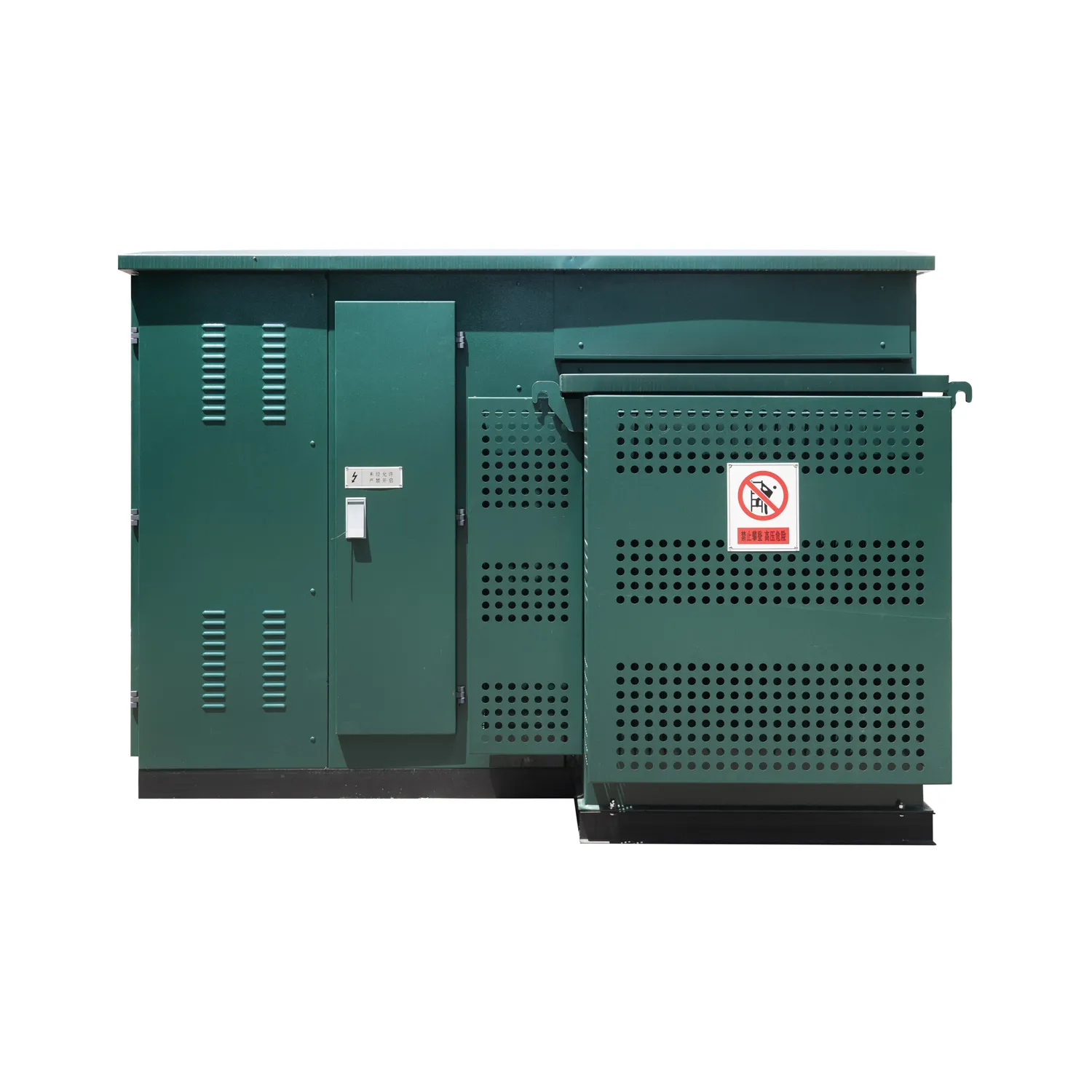

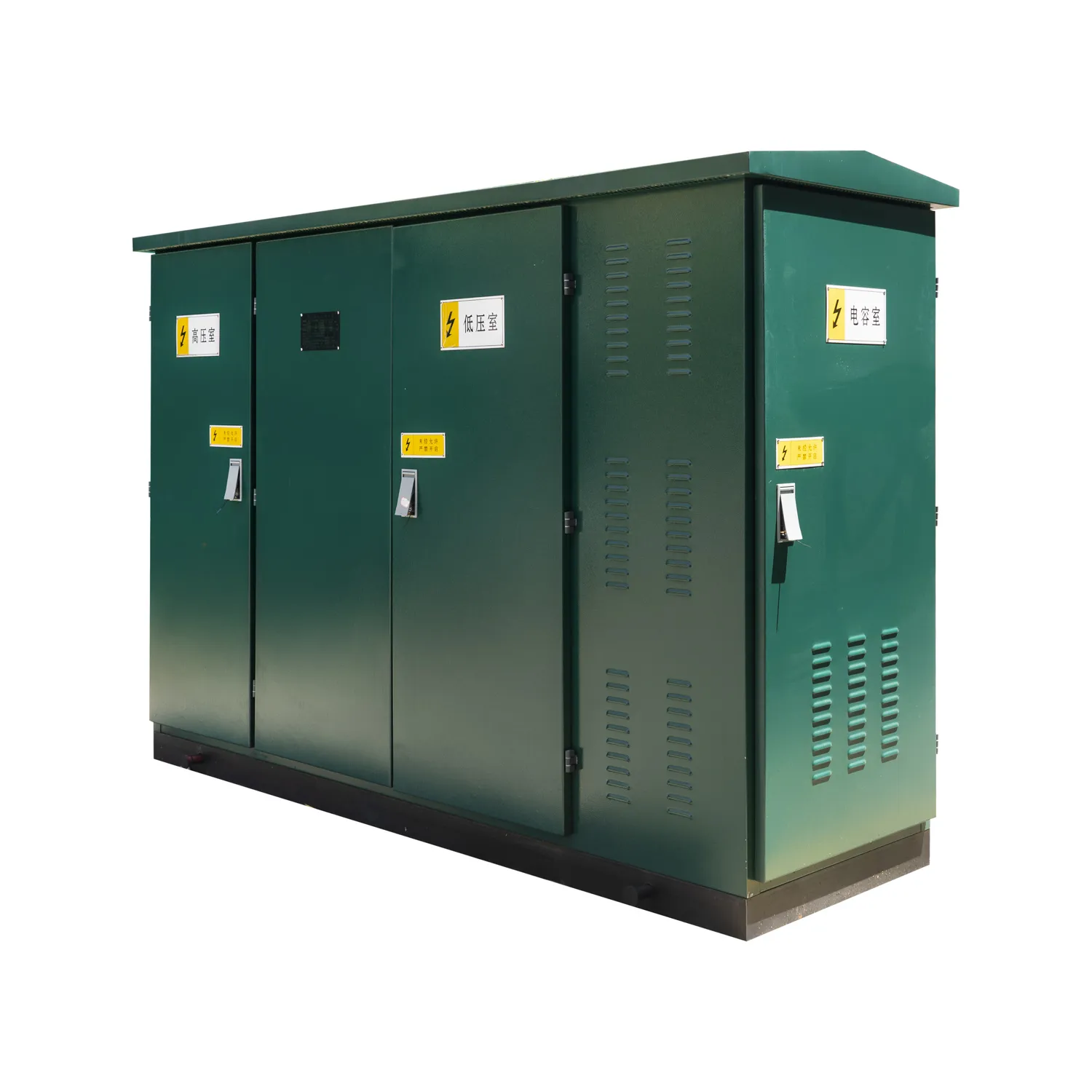

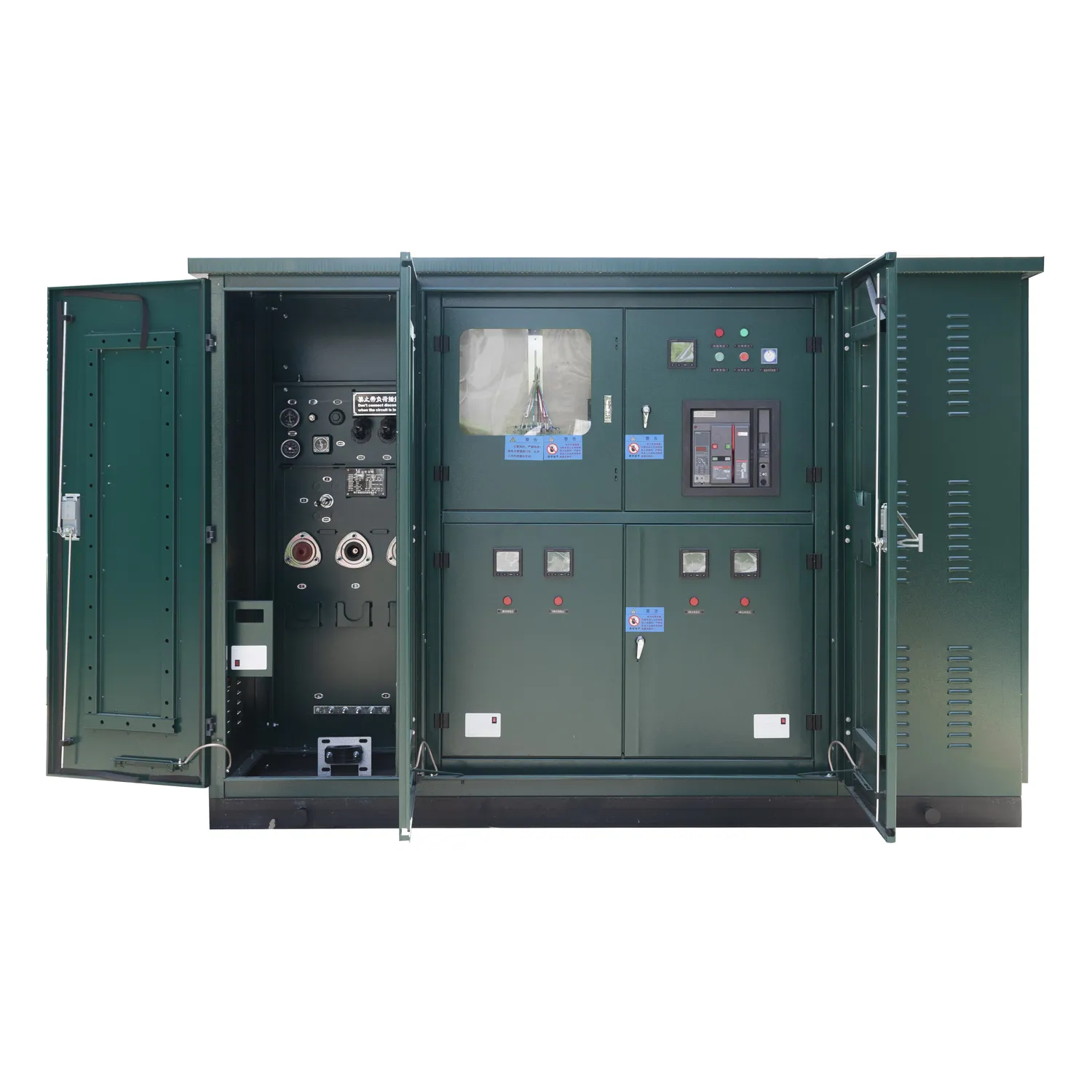

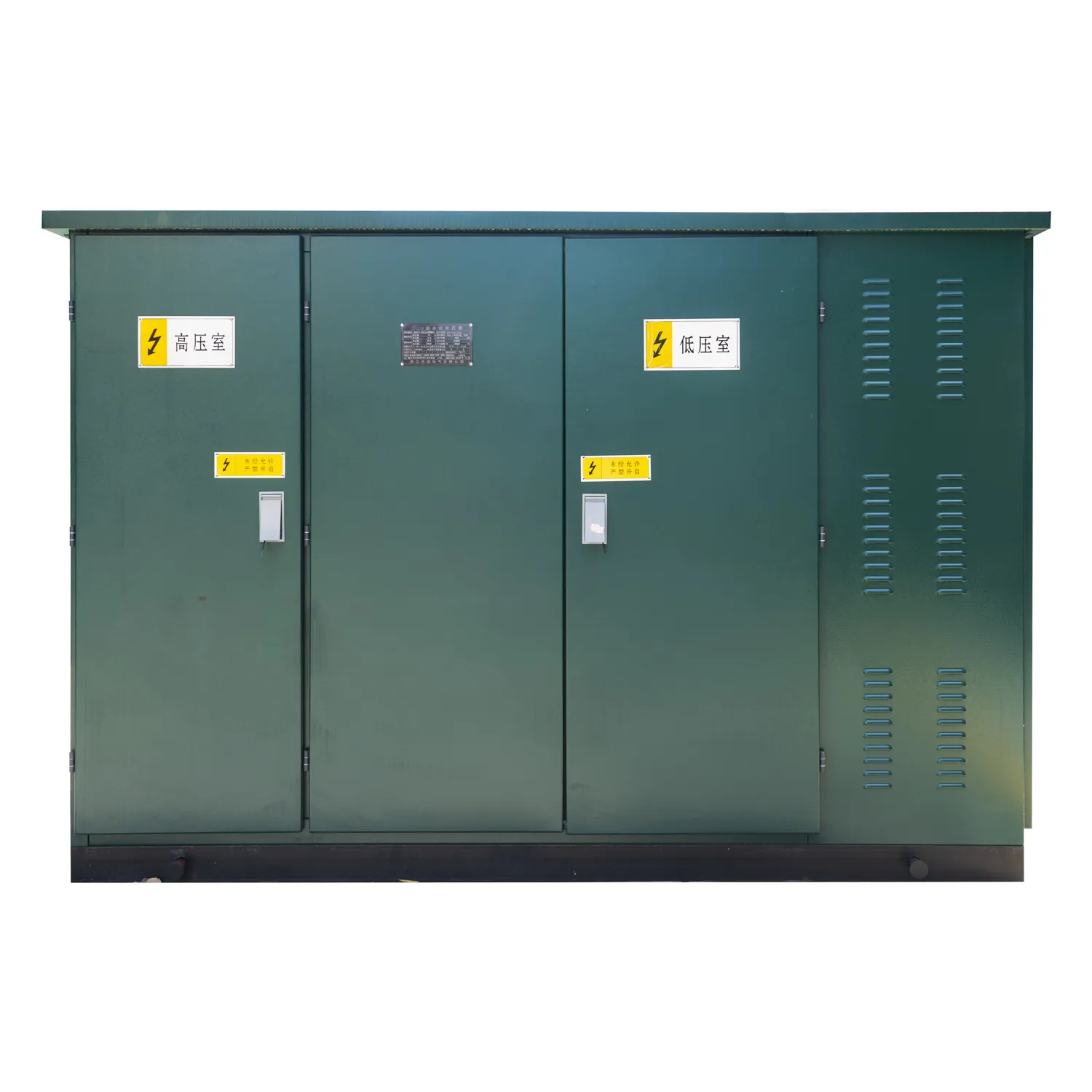

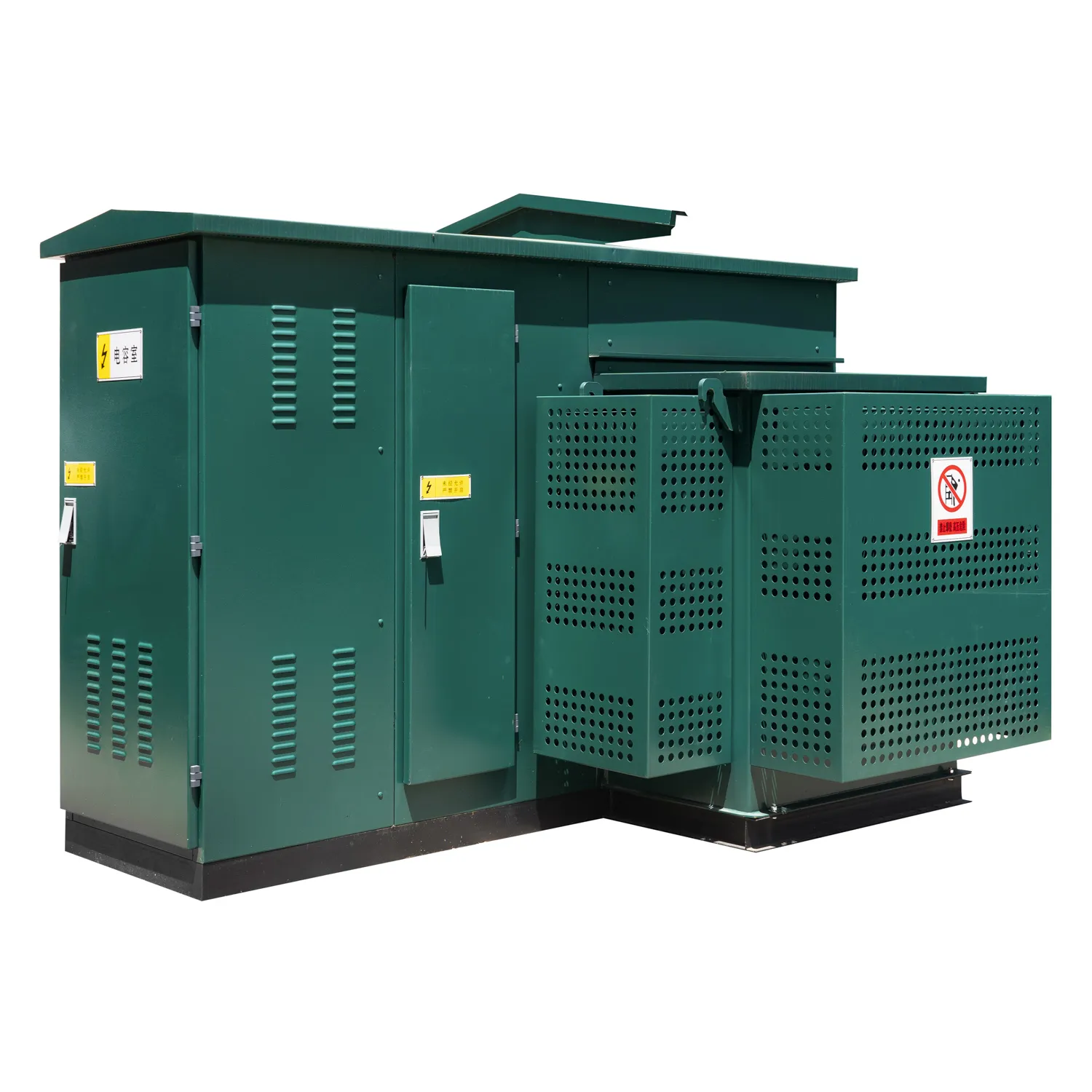

Pad-Mounted Transformer Substation American Style

Name: Pad-Mounted Transformer Substation American Style
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

A pad-mounted combined transformer is a domestically produced American-style box-type transformer launched by pad mounted transformer company. An important power supply unit in the cable distribution network, the electric distribution substation transformer integrates high-voltage control, protection, substation, and distribution equipment into a complete pre-installed product, and is widely used in urban and rural distribution networks.

Products

Features

Compact structure, small volume, only about 1/3～1.5 of the same capacity domestic European-style box transformer, greatly reducing the floor space.

Fully sealed, fully insulated structure, no need for insulation distance, reliably protecting personal safety.

High-voltage connections can be used for both the ring network and terminal, with flexible power supply and high reliability.

Excellent transformer performance: low loss, low noise, low temperature rise; strong overload capacity, short-circuit resistance, strong impact resistance.

Meets various low-voltage feeder requirements, can be selected according to the plan, or self-designed.

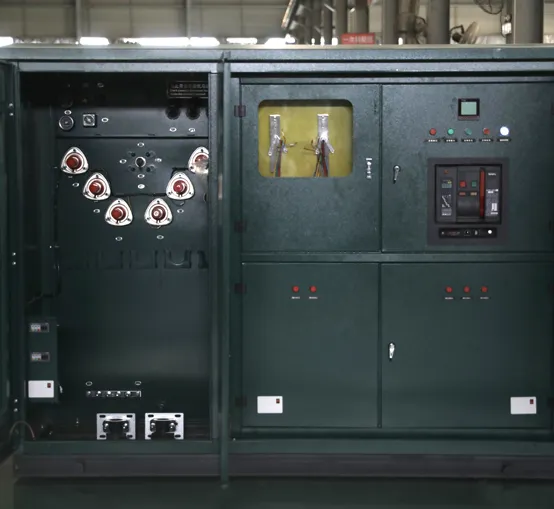

There are two types of cable heads: 200A elbow plug and 600A"T" type fixed cable connector; both can be equipped with a fully insulated zinc oxide surge arrester. The 200A cable head can be hot-plugged with a load and can also act as an isolating switch.

Parameters

Performance Parameters of Transformers
Performance Parameters of 10kV Prefabricated Substation S11,S13,S20 Series Oil-immersed Transformers
Serial Number	Rated Capacity (kVA)	Rated High Voltage (kV)	Voltage Low Voltage (kV)	Tapping Range (%)	Vector Group Symbol	No-load Curren		t Loss(W)					Resistance Voltage (%)	Noise (dB)	Temperature Rise
						(%)		No-load			load
						S9	S10/S11	S9	S10	S11	S9 S10/S11
1	30	6 6.3 10	0.4 (0.69)	±5 (±2×2.5)	Yyn0 Dyn11	2.2	2.0		130		600		4	5.5	Top oil temperatur 60° coil 65°
2	50					2.0	1.8		170		870
3	63					1.9	1.5		200		1040
4	80					1.7	1.2		250		1250
5	100					1.6	1.1		290		1500
6	125					1.5	1.0	340	270		1800
7	160					1.4	1.0	400	310		2200
8	200					1.4	0.8	480	375		2600
9	250					1.2	0.8	560	455	400	3050	3000
10	315					1.1	0.7	670	540	475	3650	3600
11	400					1.0	0.7	800	650	570	4300	4200
12	500					1.0	0.6	960	775	680	5100	5000
13	630					0.9	0.6	1200	920	800	6200	6000	4.5
14	800					0.8	0.6	1400	1120	980	7500	7400
15	1000					0.7	0.5	1700	1320	1150	10300	9860
16	1250					0.6	0.5	1950	1560	1360	12800	12000
17	1600					0.6	0.5	2400	1880	1640	14500	14000
Note: According to customer requirements, the high-voltage tap range of the transformer can be designed as±2×2.5%. According to customer requirements, the low-voltage of the transformer can be designed as 0.69kV.

Performance Parameters of Load Switch
Rated Current (A)	Rated Voltage (kV)	Impulse Withstand Voltage (kV)	Power Frequency Withstand Voltage (1min.kV)	Rated Short-time Withstand Current (kA/s)	Short-circuit Making Current (kA)	Peak Withstand Current of Short-time Current (kA)	Number of Load Operations	Number of Mechanical Operations
315	12	75	42	12.5/2	31.5	31.5	100	2000
630	12	75	42	16/4	40	40	100	3000

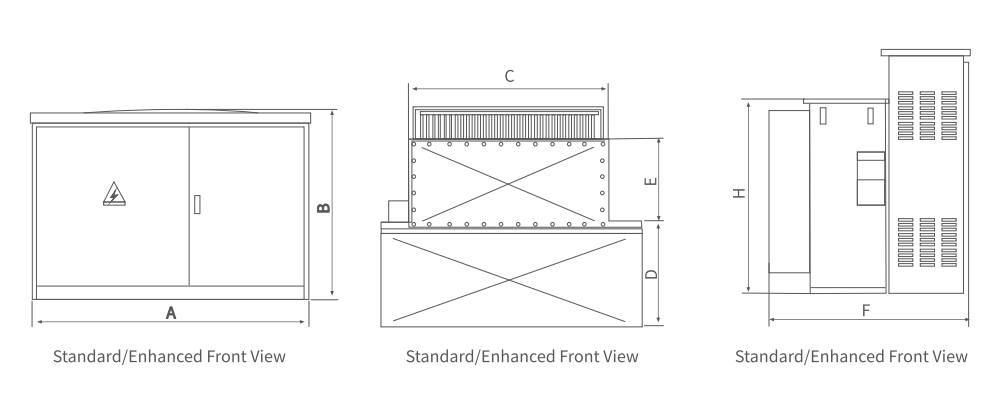

Dimensions
Dimensions
Standard Type	Capacity kVA	A	B	C	D	E	F	H
	100-250	1900	1650	1250	650/800	600	1410/1560	1450
	315	1900	1650	1350	650/800	650	1460/1610	1450
	400-500	1900	1750	1450	650/800	650	1490/1640	1550
	630	1900	1750	1550	650/800	700	1580/1730	1550
	800	1900	1850	1550	650/800	700	1640/1790	1650
	1000	1900	1850	1650	650/800	700	1640/1790	1650

Parameters of Pad-Mounted Transformer/American Style Box-type Substation

Enhanced Type Dimensions
Enhanced Type	Capacity kVA	A	B	C	D	E	F	H
	100-250	2400	1650	1250	800	600	1560	1450
	315	2400	1650	1350	800	650	1610	1450
	400-500	2400	1750	1450	800	650	1640	1550
	630	2400	1750	1550	800	700	1730	1550
	800	2400	1850	1550	800	700	1790	1650
	1000	2400	1850	1650	800	700	1790	1650

Parameters of Pad-Mounted Transformer/American Style Box-type Substation

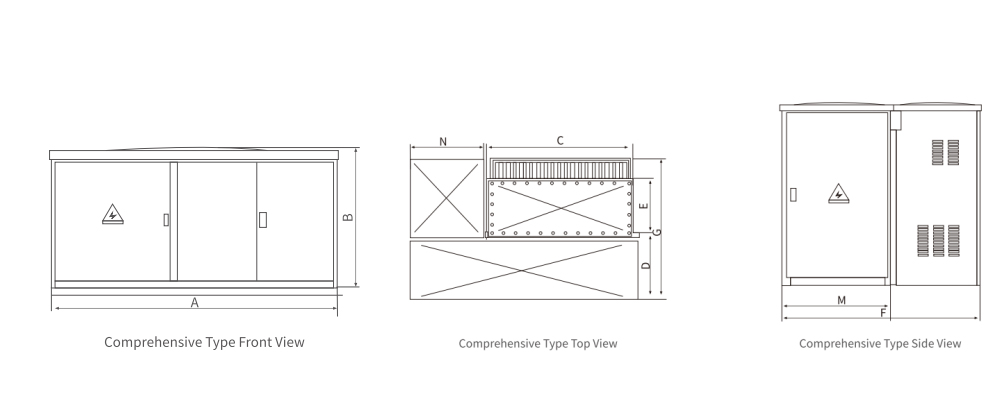

Enhanced Type Dimensions
Enhanced Type	Capacity kVA	A	B	C	D	E	F	G	M	H
	100-250	2400	1750	1250	800	600	1750	1560	950	550
	315	2400	1750	1350	800	650	1750	1610	950	550
	400-500	2400	1850	1450	800	650	1750	1640	950	550
	630	2400	1850	1550	800	650	1750	1720	950	550
	800	2400	1950	1650	800	650	1750	1790	950	550
	1000	2400	1950	1650	800	700	1750	1840	950	550

Benefits

Structural Design Features

Integrated Design: The high-voltage load switch and high-voltage fuse are integrated in the transformer oil, offering both an integrated and a split structure form with the transformer body, allowing for flexible selection based on actual needs.
Tank Design: The tank adopts a fully sealed structure, effectively protecting internal components. It is also equipped with an oil thermometer, oil level gauge, pressure gauge, pressure relief valve, and oil drain valve, enabling comprehensive monitoring of the transformer's operation and ensuring stable equipment operation.
Diversity of Power Supply Modes
Pad mounted electrical transformerfeatures three power supply modes: ring network, terminal, and dual power source, capable of meeting the power supply demands in various scenarios, enhancing the product's applicability.
Innovative and distinctive design
Plug-in dry-type fuse: Specifically developed to better meet the actual needs of the Chinese power grid, pad mounted electrical transformer does not affect the performance of transformer oil when it melts, ensuring the normal operation of the equipment and facilitating maintenance.

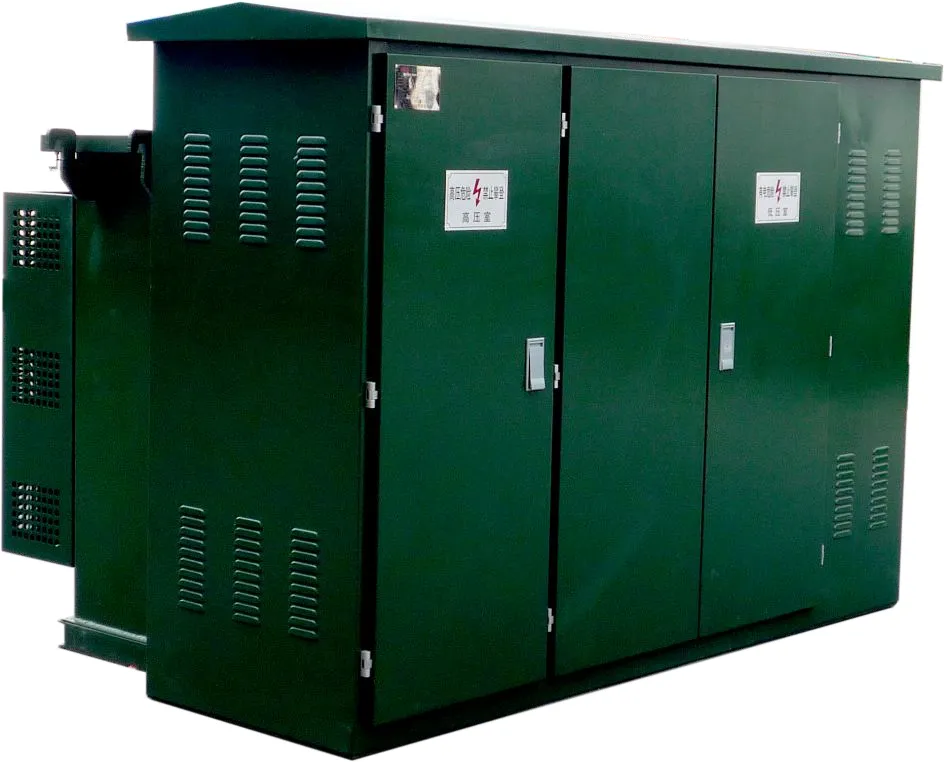

Diverse housing forms: For the ZGS□-12 product, based on the complexity of the requirements for low-voltage feeders, pad mounted distribution transformers are divided into three housing forms: standard type, enhanced type, and comprehensive type.Pad mounted transformer provides greater flexibility for users and design units when making choices and helps achieve better cost-effectiveness.

Use

Operating Environment Conditions

Ambient Temperature:Maximum temperature+40℃,minimum temperature-30℃;Altitude:≤1000m;
Wind Speed:Equivalent to 34m/s(not exceeding700Pa);
Humidity:Average daily relative humidity not exceeding95%;monthly relative humidity not exceeding95%;Seismic
Protection: Horizontal acceleration not exceeding 0.4m/S2, vertical acceleration not exceeding 0.15m/S';
Installation Site inclination: Not greater than3°;
Installation Environment: The surrounding air is not subject to significant pollution from corrosive or flammable gases, and the installation site is free from severe vibration.
If ordering pad mounted distribution transformers exceeds the above conditions, you can be negotiated with pad transformers company.
