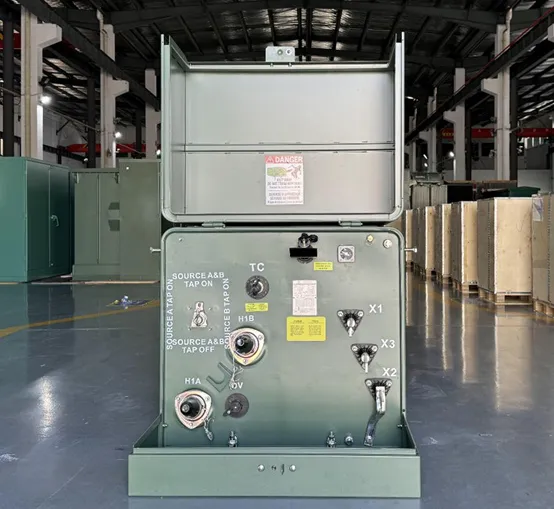

Single Phase Ground Mounted Transformer

Name: Single Phase Ground Mounted Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

Single-phase box-type transformer adopts a dual-voltage design and requires a dual-voltage switching switch for voltage switching. ground mounted transformer design effectively ensures the transformer's adaptability to different power demands, thereby enhancing ground mounted transformer practicality and environmental adaptability. The oil-immersed power transformer is widely used in various places such as residential areas, commercial centers, hospitals, parks, and schools.

Products

Features

Ground mounted transformer is long-lasting.

Single phase transformer manufacturers provide free maintenance.

Single phase transformer types have efficient space.

Ground mounted transformer has safety features.

Parameters

Standards designed as IEEE/ANSI, CSA, NEMA, and DOE
Rated power from 25 kVA up to 250 KVA
Rated insulation level up to 34.5 kV
Rated frequency 50 or 60 Hz
Two externally-clamped molded polymer universal high-voltage bushing wells for loop-feed operation or one externally-clamped high-voltage bushing well for loop-feed or radial-feed operation, as specified
Naturally, ONAN/KNAN on request
Removable flip-top hood opens 180° for easy access with stainless steel hinge pins and requires no special tools for removal
Two-position, four-position, or sectionalizing rotary high-voltage load-break switch
Bayonet fuse, elsp fuse, and isolation link are available
A dual-voltage switch and secondary voltage circuit breaker are available

Benefits

High-Efficiency Conversion: Ground mounted transformer ensures stable voltage output.
Safe and Reliable: Excellent insulation for secure usage.
Flexible Customization: Meets various application needs.
Precision Design:Ground mounted transformer has optimized structure for enhanced performance.
Strict Material Selection: Use of high-quality materials.
Fine Processing: Ensures product accuracy and quality.

Use

Tenrony will become your transformer Factory
With strict quality control, our quality management personnel will check all products.
Ground mounted transformer accepts OEM and ODM, and our transformers meet all kinds of customers’ needs.
Has an experienced and strong R&D team to customize special products for you
Excellent supply chain management, providing a strong guarantee at any time
Single phase transformer manufacturers have a good reputation in the domestic and overseas markets.
