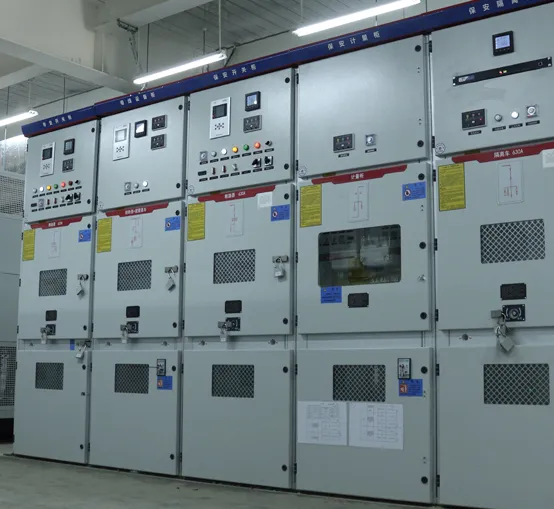

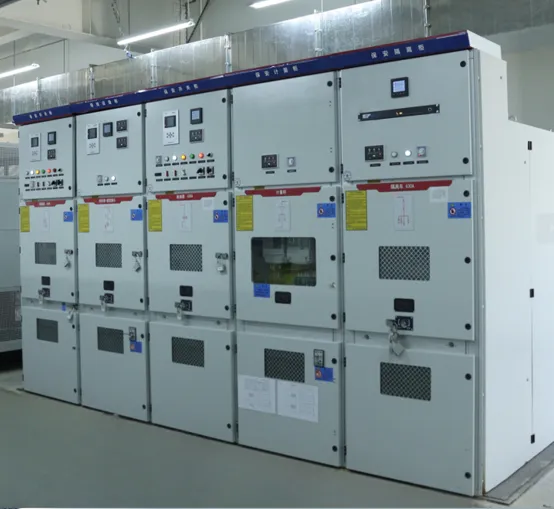

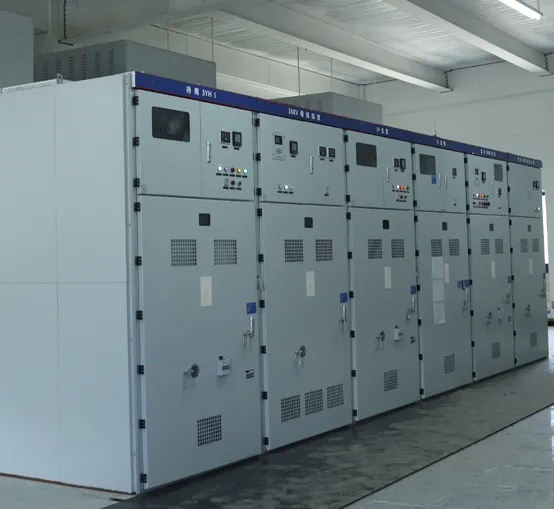

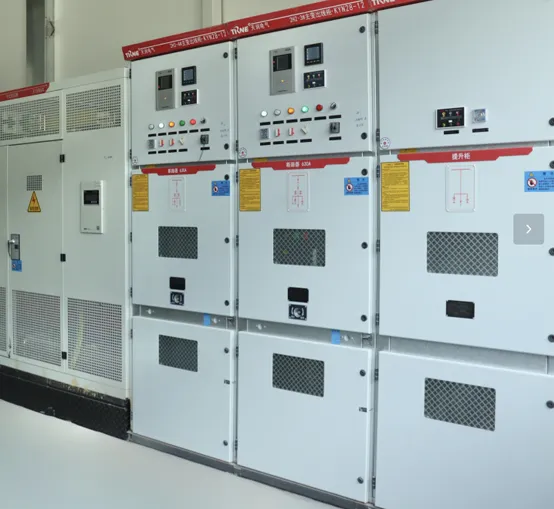

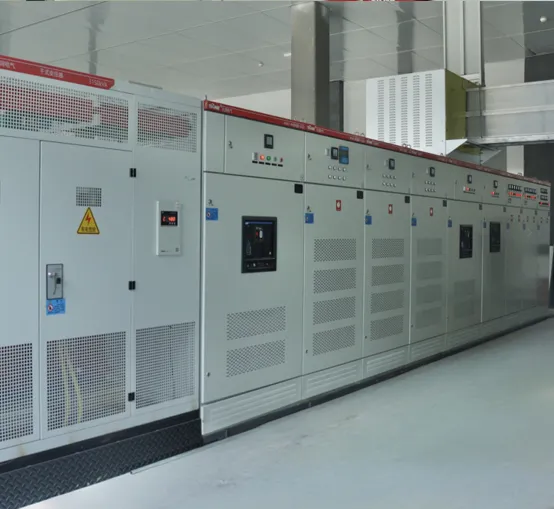

Solution for Switchgear

Name: Solution for Switchgear
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

Tenrony provides overall solutions for the manufacturing and assembly lines of medium-voltage switchgear, low-voltage switchgear, substations, transformers, and switchgear components. If you have not yet clarified your specific requirements, our schneider mv switchgear manufacturer will provide you with a technical parameter sheet for you to fill out. Based on the information you provide, our professional team will conduct an analysis and tailor the most suitable high voltage electrical switchgear solution for you.

Products

Features of Solution for Switchgear

Tenrony will become your transformer Factory

With strict quality control, our quality management personnel will check schneider mv switchgear products.

We accept OEM and ODM, our schneider mv switchgear tansformer meet all kinds of customers’ needs.

Switchgear solutions has an experienced and strong R&D team to customize special products for you

Excellent supply chain management, providing a strong guarantee at any time

Schneider switchgear has a good reputation in the domestic and overseas markets.

Parameters of Solution for Switchgear

High-Efficiency Conversion: Ensures stable voltage output.
Safe and Reliable: Excellent insulation for secure usage.
Flexible Customization: Meets various application needs.
Precision Design: Optimized structure for enhanced performance.
Strict Material Selection: Use of high-quality materials.
Fine Processing: Ensures product accuracy and quality.

Benefits of the Solution for Switchgear

Benefits

Switchgear solutions is easy to maintain
Easy Installation and accessibility
Compact and space-saving design
Flexibility in location

Use of Solution for Switchgear

Main technical parameter
Rated parameters of switchgear cabinets
Name		Unit	Numerical
Rated Voltage		kV	3.6,7.2,12
Rated frequency		HZ	50
Rated breaker current		A	630,1250,1600,2000,2500,3150
Rated switchgear current		A	630,1250,1600,2000,2500,3150
Dynamic stability current (peak)		kA	16,20,25,31.5,40,50
4s Thermal Stability Current(effective value)		kA	40,50,63,80,100,125
Rated short-circuit breaking current		kA	16,20,25,31.5,40,50
Rated short-circuit closing current		kA	40,50,63,80,100,125
Rated insulation level	lightning impulse withstand voltage	kV	24,32,42
	Main circuit 1min power frequency tolerance		40,60,75
IP Grade	Shell/Interior		IP4X/IP2X

AC circuit breaker rated parameter
Name	Unit	Numerical	Numerical
Rated voltage kV		kV	12
Rated frequency		Hz	50
Rated breaker current		A	630,1250,1600,2000,2500,3150
Dynamic stability current (peak)		kA	16,20,25,31.5,40,50
4sThermal stablity current(peak)		kA	40,50,63,80,100,125
Rated short-circuit breaking current		kA	16,20,25,31.5,40,50
Rated short-circuit closing current(peak)		kA	40,50,63,80,100,125
Rate insulation level	lightning impulse withstand voltage	kV	42
	Main circuit 1min power frequency tolerance		75
Rated frequency		Hz	50
Rated operating sequence			O-0.3s-CO-180s-CO
Mechanical life		times	10000
Closing time		ms	50~100
Opening time		ms	35~60
All switchgear products of Tenrony can be customized. Please tell us your requirements, and our design team will tailor the most suitable products for you.

Get a Quote Today:
Power Up Your Project
With Tenrony



Tel:

+8617357837309


E-mail:

li@tenrony.com


Address:

No.788 Wenyi Road, Bihu Town, Lishui City, Zhejiang Province, China

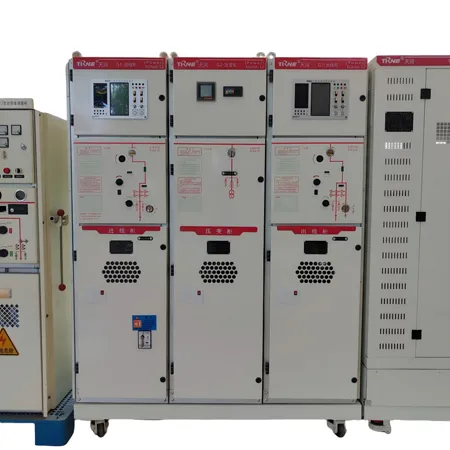

Other High-Voltage Switchgear Products
