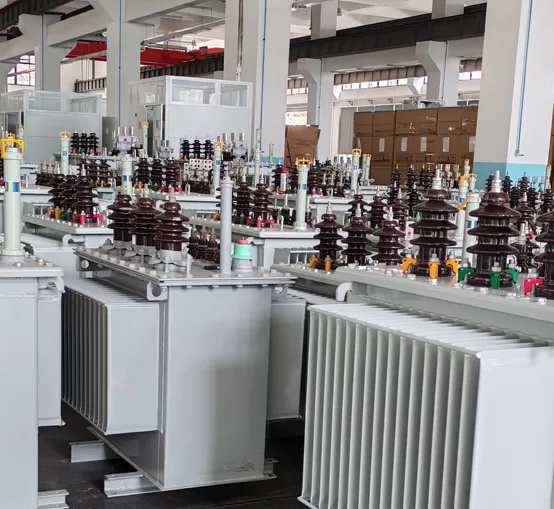

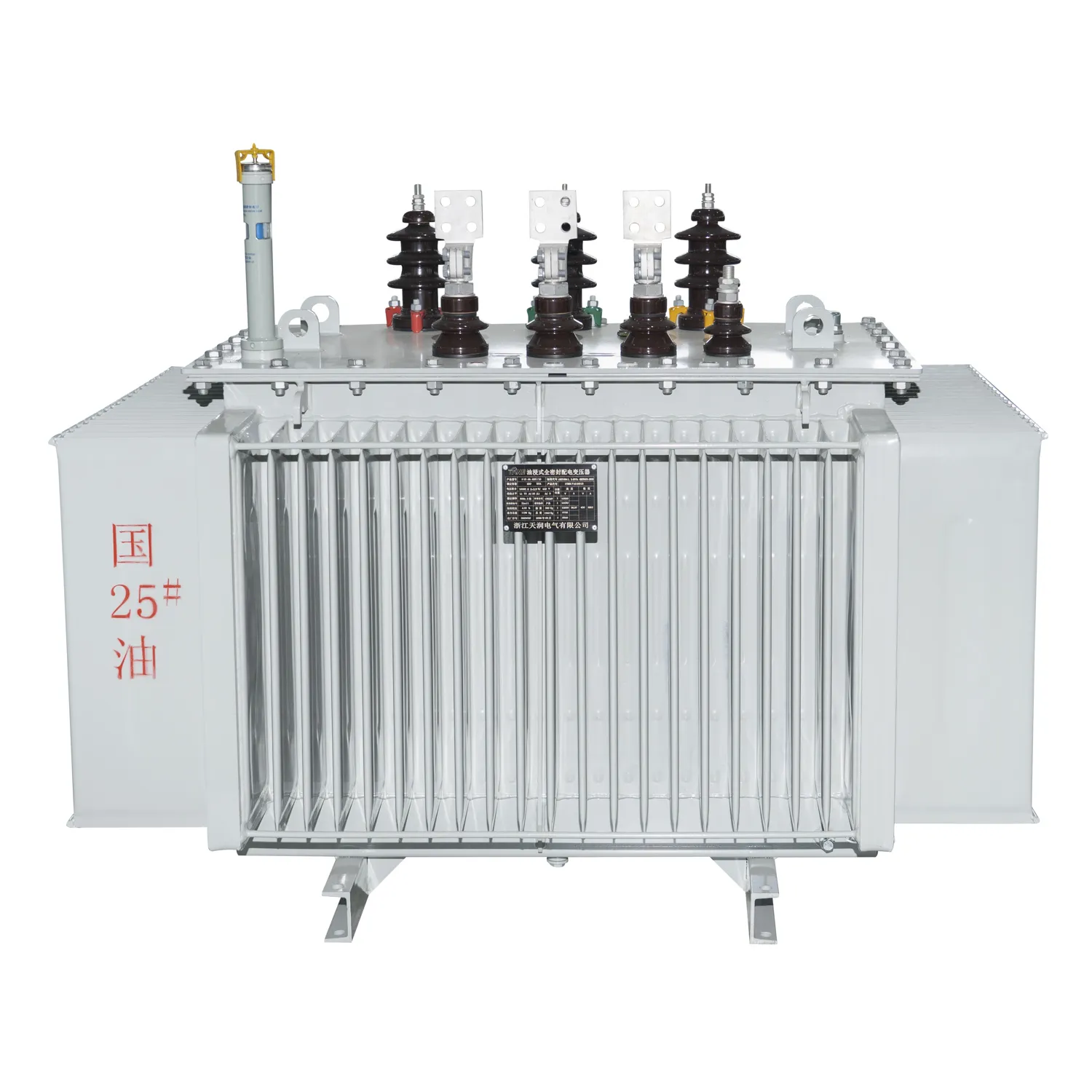

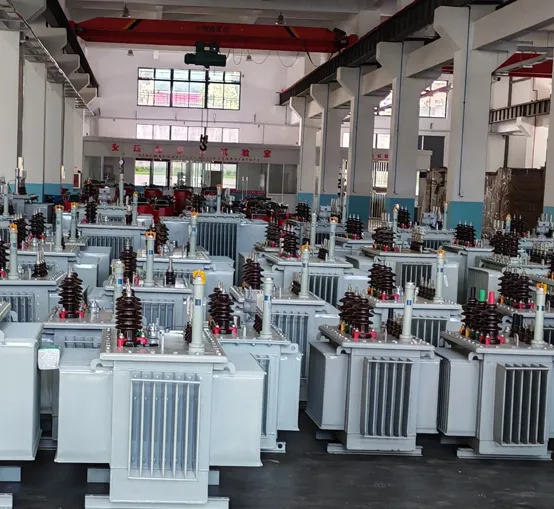

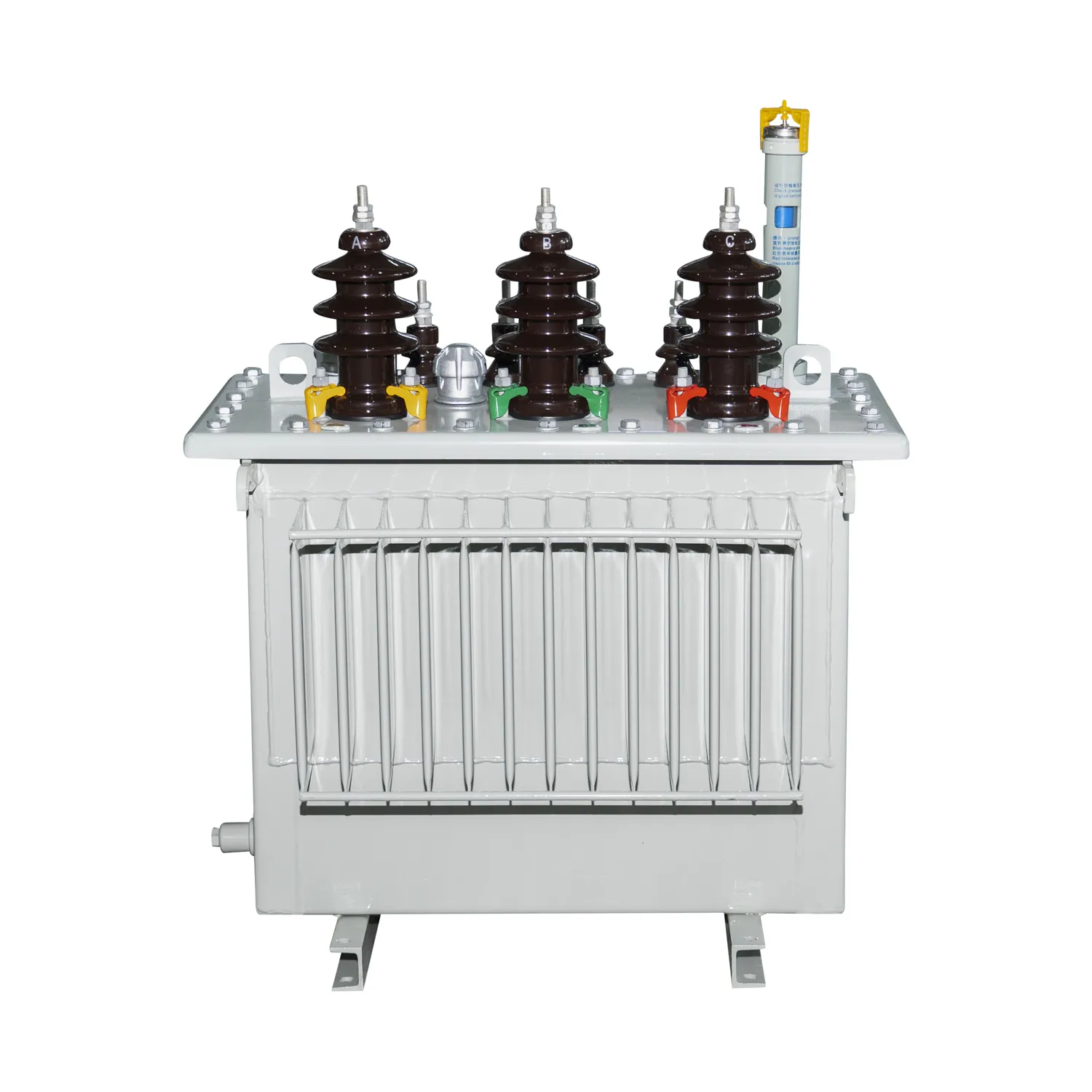

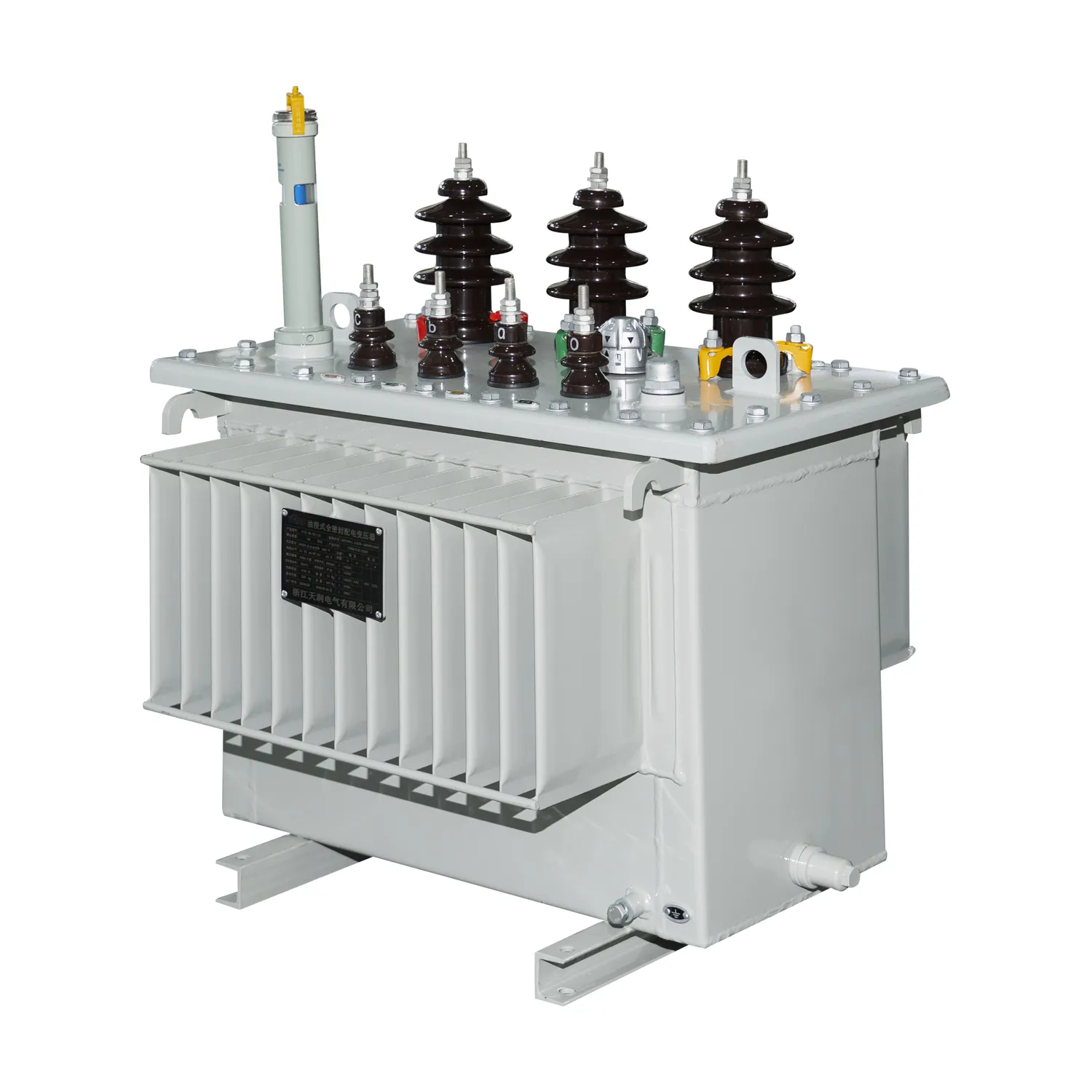

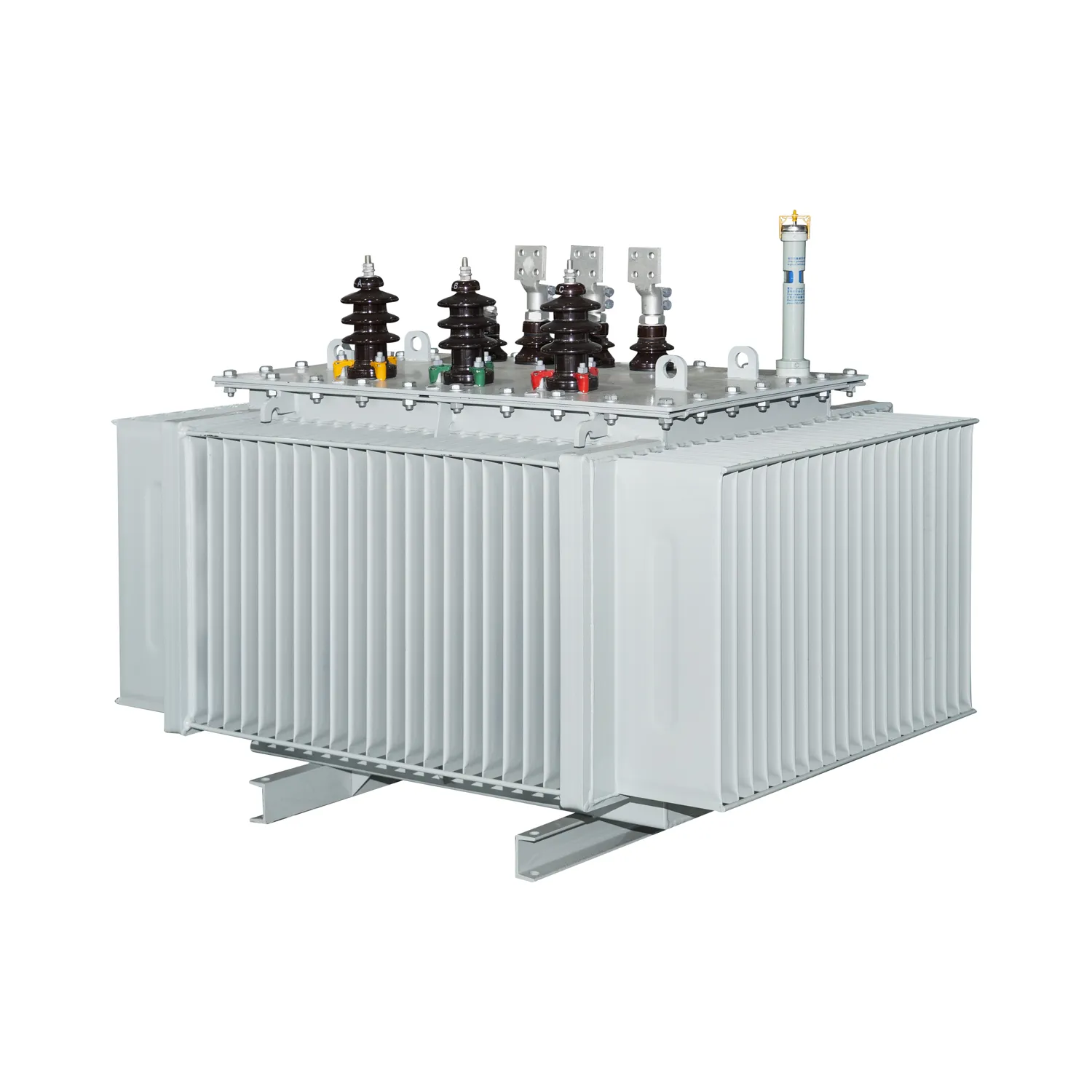

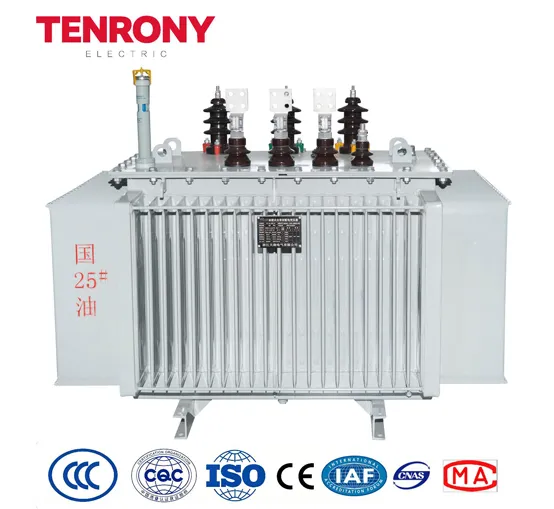

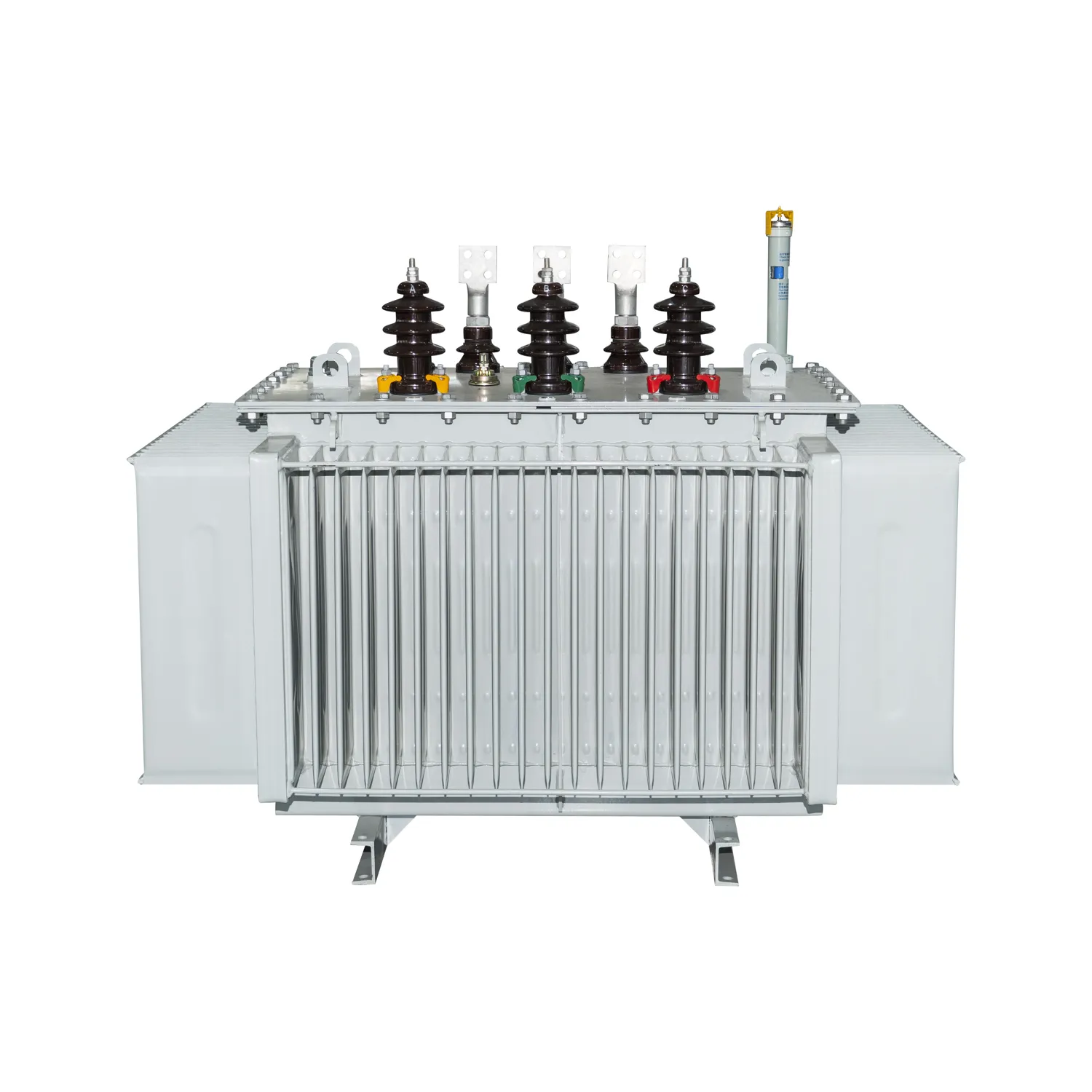

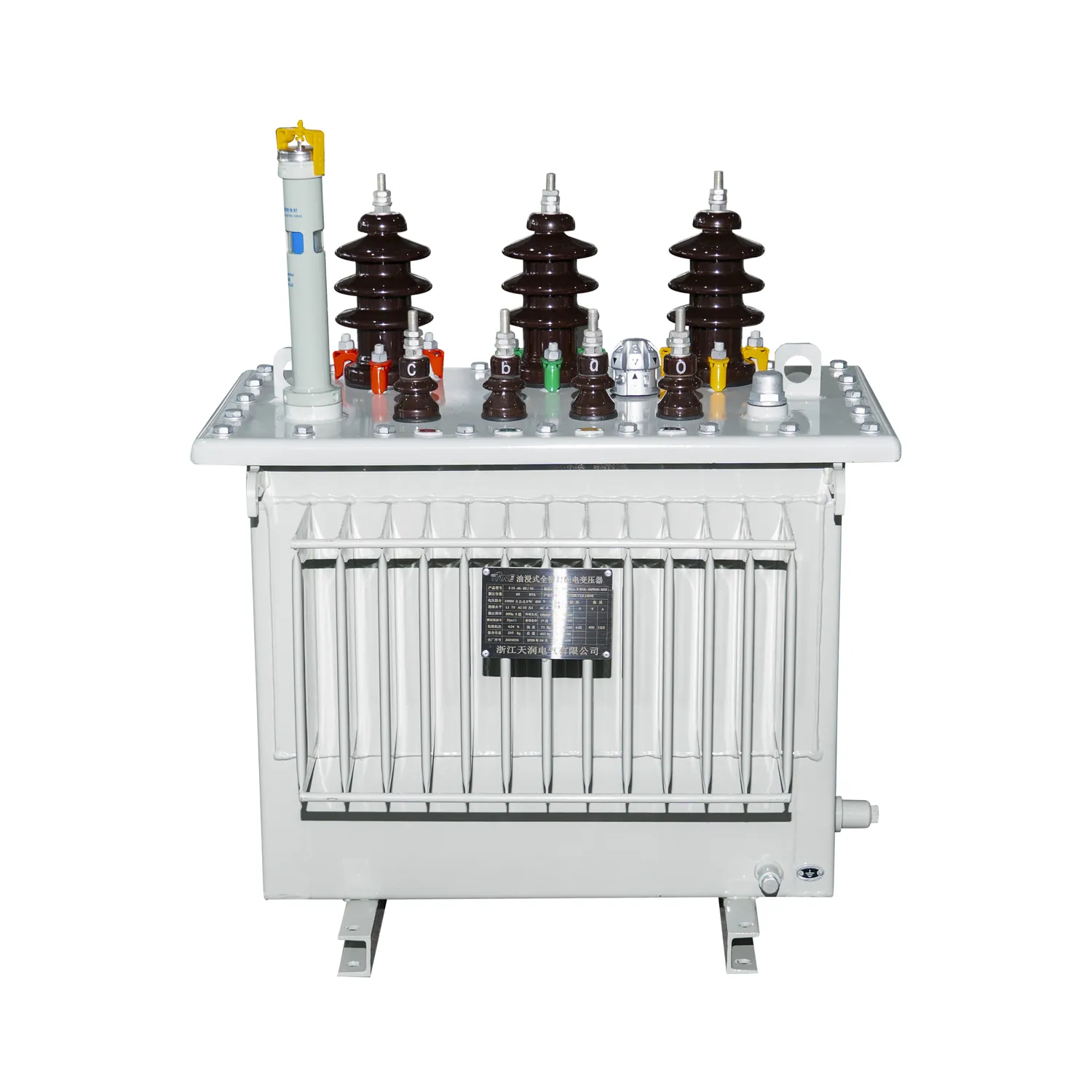

Three Phase Oil Immersed Distribution Transformer

Name: Three Phase Oil Immersed Distribution Transformer
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

The 3 phase distribution transformer was developed by Tenrony based on the original distribution transformer. Through the research and application of new materials and new processes, as well as the combination of independent innovation and technology introduction, and through the optimized and innovative design of the core and coil structure, oil immersed distribution transformer aims to reduce no-load losses and noise.

As a self-developed power distribution equipment, the average no-load loss has decreased by 37%. The noise level has decreased by an average of 20%compared with the current national standard JB/T10088-2004, and the three phase distribution transformer performance level has reached the advanced domestic level.

Products

Features

Three phase distribution transformer bases on traditional structure and mature technology. This power distribution equipment has made many improvements, including:

Adopting a spiral coil with longitudinal oil passages for better internal heat dissipation.

Improving the effective support of the coil end face for stronger short-circuit current resistance.

3 phase distribution transformer uses a new lifting structure and body positioning structure to ensure greater reliability during long-distance transportation and operation.

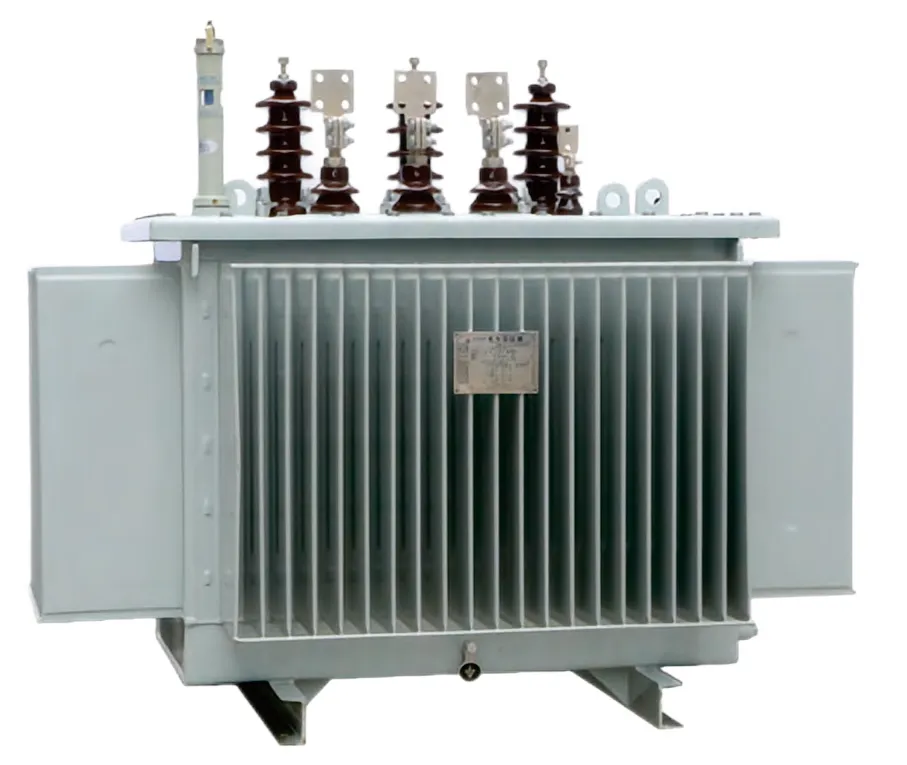

The oil tank adopts a fully sealed structure, isolating the transformer from the atmosphere, preventing and slowing down oil degradation and insulation moisture, enhancing operational reliability, and requiring no maintenance during normal operation.

Parameters

Rated capacity	Rated voltage			Vector group	Load-loss（KW）		No-load current（%）	short circuit impedance	Wight （Kg）
（KVA）	H.V （KV）	Tapping range	L.V （KV）	Vector group	With-load（75°C）	No-load	No-load current（%）	%	Oil weight	Total weight
30	6KV 6.3KV 6.6KV 10KV 11KV 13.8KV	±5% Or ±2× 2.5%	0.4	Yyn0 Or Dyn11	0.6	0.08	0.28	4	96	375
50					0.87	0.1	0.25		120	446
63					1.04	0.11	0.23		145	520
80					1.25	0.13	0.22		168	592
100					1.5	0.15	0.21		196	695
125					1.8	0.17	0.2		221	780
160					2.2	0.20	0.19		235	920
200					2.6	0.24	0.18		271	1070
250					3.05	0.29	0.17		292	1250
315					3.65	0.34	0.16		321	1430
400					4.3	0.41	0.16		353	1750
500					5.1	0.48	0.15		412	2110
630					6.2	0.57	0.15	4.5	492	2390
800					7.5	0.70	0.14		576	2900
1000					10.3	0.83	0.13		709	3520
1250					12	0.97	0.12		760	4460
1600					14.5	1.17	0.11		920	5690

Benefits

3 phase power distribution also has many unique and reliable structures to serve you.
By selecting transformers with higher performance levels, three phase distribution transformer will have a higher level of technical content.

Execution standards

In addition to meeting the requirements of the national standard GB 20052-2020 for product performance, this three phase oil immersed distribution transformer series also complies with the following national standards: GB/T1094.1, GB/T1094.2、JB/T10088 、GB/T1094.3、GB/T1094.5、GB/T25289、GB/T6451、GB/T7595、JB/T3887.

Note: All three phase distribution transformer products produced by three phase distribution transformer company meet the latest versions of the national standards mentioned above.

Use

Environmental conditions for use

Altitude: Not exceeding 1000m;
Ambient temperature: Maximum air temperature+40℃; Hottest monthly average temperature+30℃; Highest annual average temperature+20℃; Outdoor minimum temperature-25℃.
The waveform of the power supply voltage is approximately sinusoidal.
For a three-phase transformer, the three-phase power supply voltage should be roughly symmetrical.
Installation environment: There is no obvious contamination in the installation environment.
Ground acceleration for seismic events: Horizontal direction is less than 3m/s², vertical direction is less than 1.5m/s².
Special conditions of use: Any special conditions of use beyond the normal operating conditions of the transformer should be specified at the time of inquiry and ordering.
