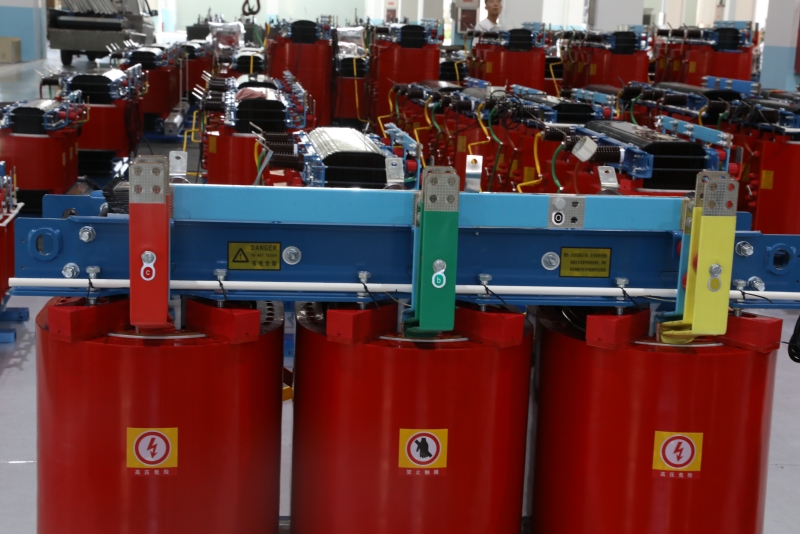

In various power projects such as power distribution engineering, building power supply, and industrial power distribution, the SCB18-1600/11 dry-type transformer has become a high-frequency selection model due to its excellent performance and adaptability. However, for many electrical practitioners, the specific meaning of the product parameters and core advantages embodied in this string of letters and numbers may not be fully understood. Today, we will disassemble the model code of the SCB18-1600/11 transformer one by one to help you quickly grasp the key points of selection and understand the core value of this mainstream dry-type transformer.
In-depth Bit-by-Bit Interpretation of SCB18-1600/11 Model
Each letter and group of numbers in the transformer model corresponds to the core parameters and process characteristics of the product. Accurately interpreting the model is the first step in scientific selection.
✅ S: Three-Phase Structure, Suitable for Mainstream Power Distribution Scenarios
The letter "S" indicates that the transformer is a three-phase transformer, which is the mainstream configuration in the current power transmission and distribution system. Its structural design is suitable for the actual needs of most industrial production and building power distribution, with stronger operational stability. It can effectively ensure the reliability of simultaneous power supply for multiple equipment and loads, and is widely used in various medium and large-scale power distribution scenarios.
✅ C: Epoxy Resin Casting, Safe, Environmentally Friendly and More Worry-Free
The letter "C" represents the epoxy resin casting molding process, which is one of the core manufacturing processes of dry-type transformers. The windings are integrally cast and solidified with epoxy resin, without the need for oil medium, which fundamentally eliminates the potential safety hazards of oil leakage and explosion. At the same time, it has excellent moisture-proof, flame-retardant, fire-proof and pollution-free characteristics, and can be directly installed in enclosed or densely populated areas such as indoors, basements and floor power distribution rooms, suitable for scenarios with high requirements for environmental protection and safety.
✅ B: Copper Foil Winding, Energy-Saving, Durable and More Efficient
The letter "B" indicates that the winding material is copper foil. Windings made of high-quality copper foil have significant advantages compared with traditional copper wire windings: better electrical conductivity, which can reduce current loss; more compact winding structure, greatly improved heat dissipation efficiency, which can effectively extend the service life of the equipment; higher mechanical strength and stronger short-circuit resistance, making the operation more energy-saving and stable, and reducing power loss costs in long-term use.
✅ 18: Design Serial Number, Demonstrating the Strength of a New Generation of Technology
The number "18" represents the design serial number of the transformer, which is an important identifier for product technological iteration. The larger the design serial number, the more advanced the product's technical level, energy-saving performance and manufacturing process. The SCB18 series is a new generation of low-loss dry-type transformers. Compared with the previous generation of products, its energy efficiency level has been greatly improved, which can better meet the current development needs of green energy conservation and low-carbon power supply.
✅ 1600: Rated Capacity, Determining Load-Bearing Capacity
The number "1600" represents the rated capacity of the transformer, with the unit of kVA (kilovolt-ampere), that is, 1600kVA. The rated capacity directly determines the load-bearing capacity of the transformer. The 1600kVA capacity can easily meet the power load needs of scenarios such as small and medium-sized industrial plants, high-rise buildings, commercial complexes and large residential districts, adapt to power supply scenarios with multiple equipment and high power, and ensure stable power supply without pressure.
✅ 11: Rated Voltage on High-Voltage Side, Suitable for Domestic Mainstream Power Distribution Network
The number "11" represents the rated voltage on the high-voltage side of the transformer, with the unit of kV (kilovolt), that is, 11kV. This voltage level is perfectly suitable for the domestic mainstream 11-kilovolt power distribution network system, and is the most commonly used voltage level in urban and rural power distribution, industrial enterprise power supply and building power distribution. It can be directly connected to the existing power distribution system without additional power grid transformation, reducing the project construction cost and cycle.
Summary of Core Advantages of SCB18-1600/11 Product

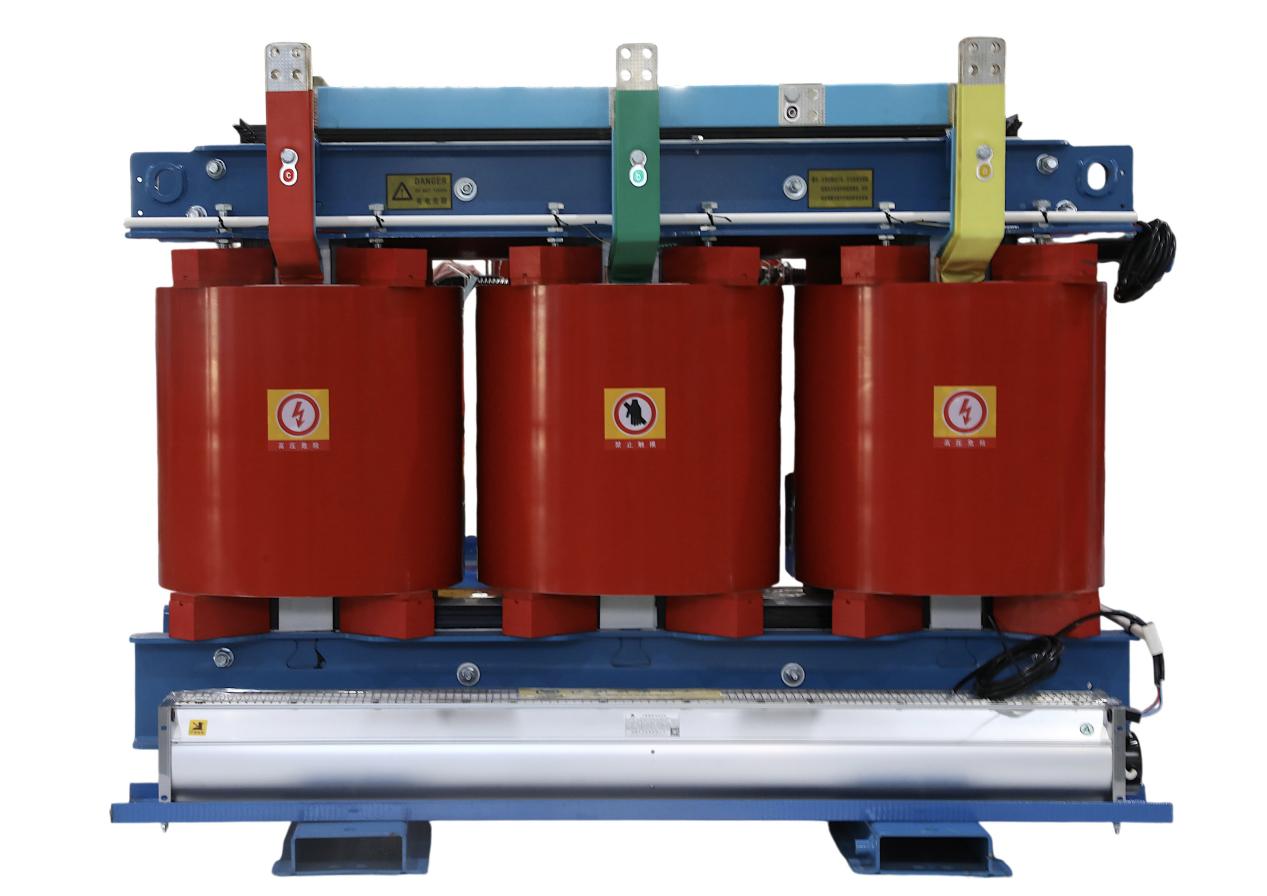

In summary, the SCB18-1600/11 dry-type transformer is essentially a three-phase epoxy resin cast dry-type copper foil transformer. As a new energy-saving product of the 18th generation, with a rated capacity of 1600kVA and a high-voltage side voltage of 11kV, it has become the preferred equipment for various scenarios with high requirements for electrical safety, environmental protection and energy conservation, relying on its core advantages of fire resistance, flame retardancy, low loss, safety, environmental protection and stable operation.
It is widely used in scenarios such as industrial plants, high-rise buildings, hospitals, shopping malls, data centers and office buildings. It can not only meet the high-load power demand, but also conform to the development concept of green energy conservation and safety and environmental protection, providing efficient, reliable and worry-free power solutions for various power distribution projects.
