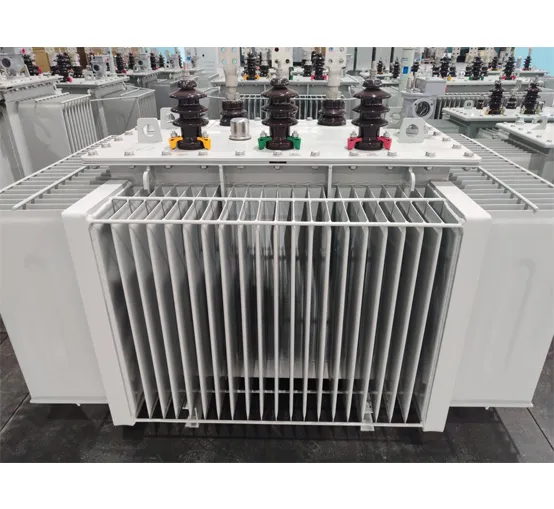

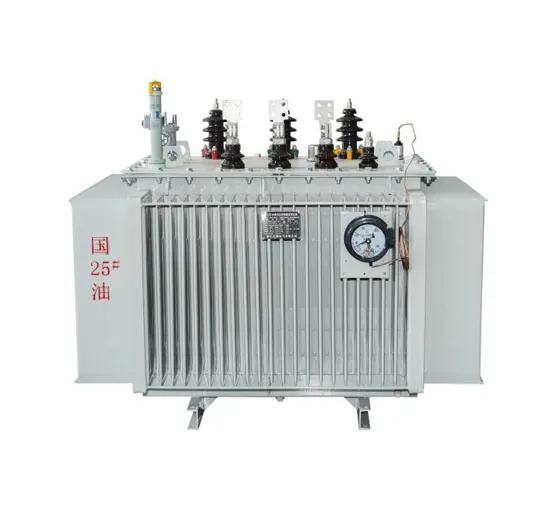

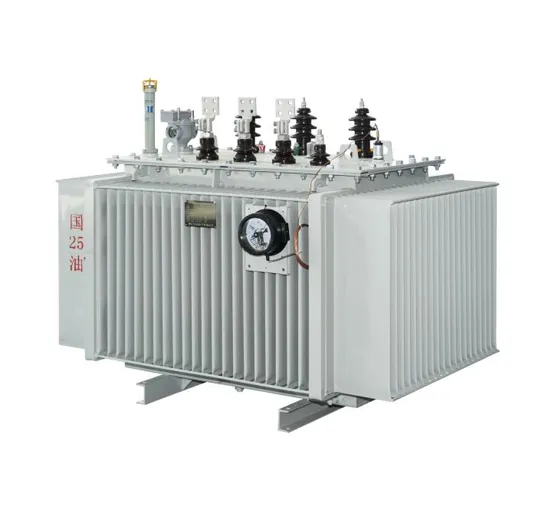

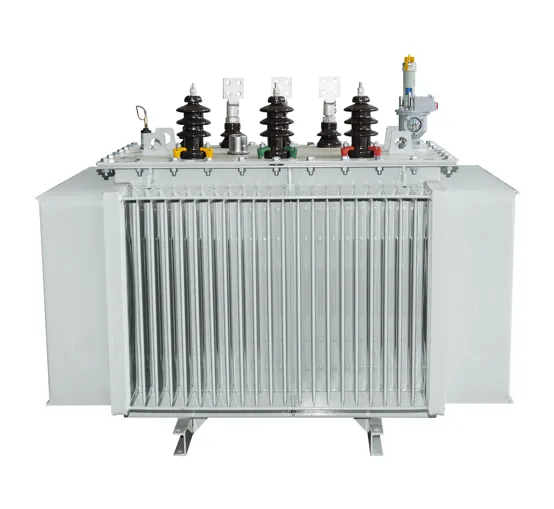

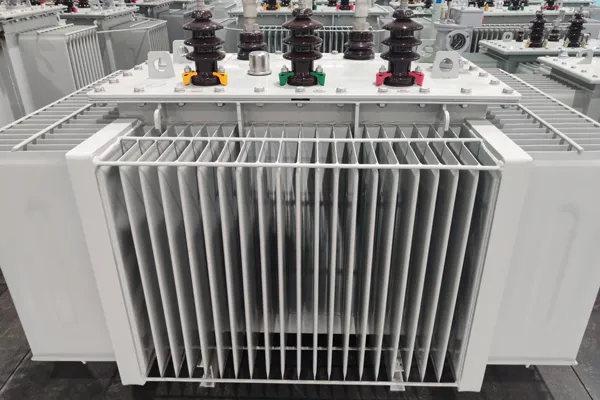

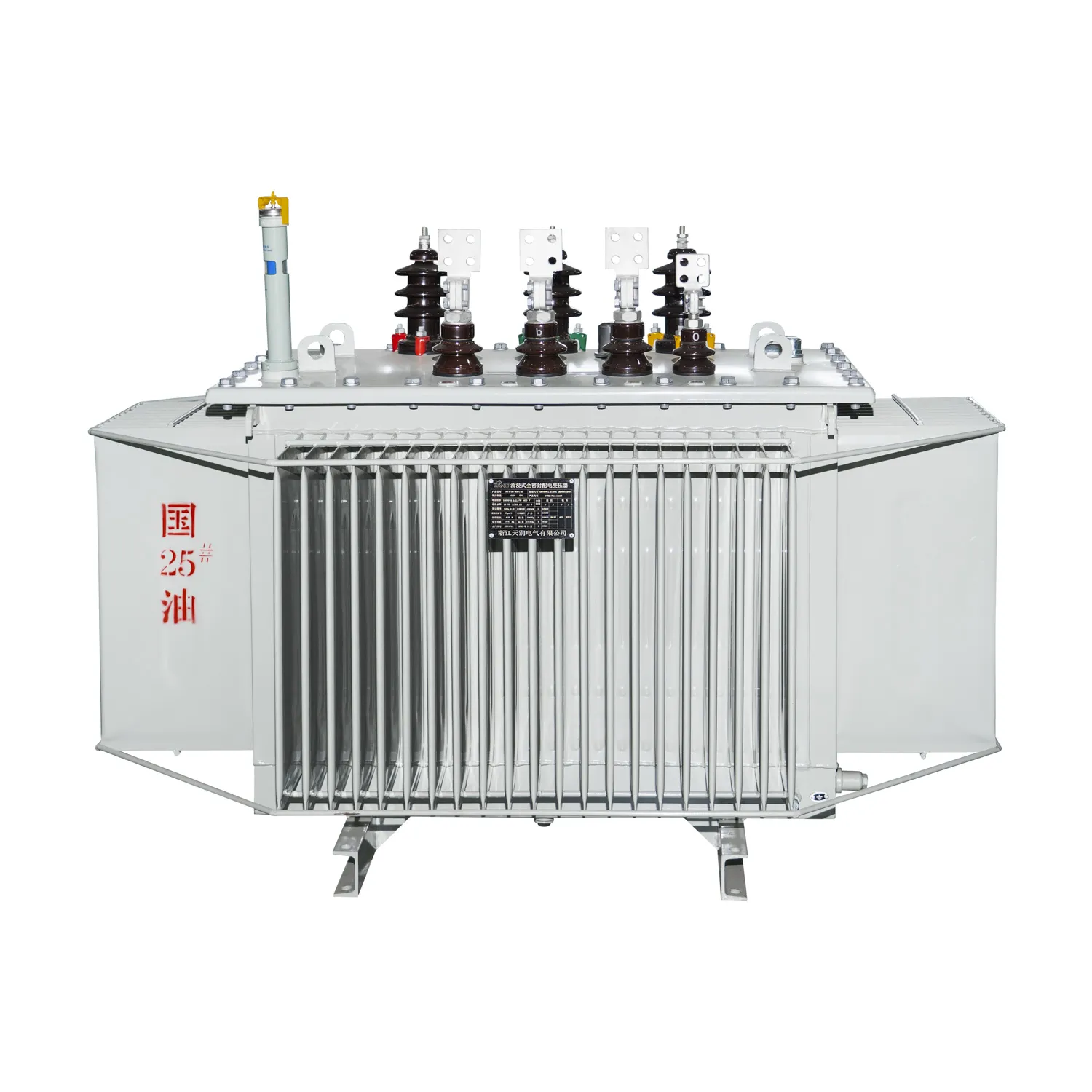

S22-M(NX1) Series Oil-Immersed Power Transformer high efficiency & energy saving

Name: S22-M(NX1) Series Oil-Immersed Power Transformer high efficiency & energy saving
Brand: Zhejiang Tenrony Electricity Co., Ltd.
Availability: InStock

The S22-M-30-2500/10-NX1 series oil-immersed power transformer is a high-efficiency energy-saving product independently developed by our company, fully complying with the first-level energy efficiency standards. As a key product encouraged and prioritized for procurement by State Grid, it integrates advanced R&D design, sophisticated manufacturing processes, and convenient operation and maintenance, providing reliable power transmission solutions for global industrial and infrastructure projects. With stable performance, low energy consumption and long service life, this transformer is designed to meet the strict requirements of modern power supply systems, and has won wide recognition in the domestic and international markets.

Products

Features

Compliance with New Energy Efficiency Standards:

Manufactured in strict accordance with the International Energy Efficiency Class 1 standards. All our S22-M(NX1) series transformers not only meet the new third-level energy efficiency requirements (equivalent to S13 oil-immersed transformer standard) but also reach the first-level energy efficiency level, far exceeding the basic market access standards.

High-Quality Transformer Oil:

Adopting S22 transformer oil, which boasts excellent insulation and heat conduction performance, ensuring stable operation of the transformer even under high load conditions. Meanwhile, it features high cost-performance, helping customers reduce procurement and operation costs.

Outstanding Heat Dissipation & Insulation:

Effectively solves the heat dissipation problem of large-capacity transformers and the insulation challenge of high-voltage transformers, avoiding equipment failure caused by overheating or insulation damage, and improving the overall operational reliability.

Fully Sealed Design:

The transformer adopts a fully sealed structure, which can effectively prevent insulation oxidation, reduce aging speed of internal components, and extend the service life. It also has strong resistance to external environmental interference, suitable for long-term outdoor operation.

High-Efficiency Core Design:

The core is made of high-quality silicon steel sheets with an increased cross-sectional area, which greatly reduces iron loss and improves energy efficiency. Taking the 630KVA model as an example, the S22-M(NX1)-630KVA saves more than 10,000 kilowatt-hours of electricity annually compared with the S13-630KVA model, achieving significant energy-saving effects and reducing long-term operation costs for customers.

Main technical parameters

Main technical parameters
Rated capacity (kVA)	Level
	Electrical steel strip			Amorphous alloy
	No-load loss （W）	Load loss （W）		No-load loss （W）	Load loss （W）
	No-load loss （W）	Dyn11/Yzn11	Yyn0	No-load loss （W）	Dyn11/Yzn11	Yyn0
30	65	455	430	25	510	480
50	80	655	625	35	735	700
63	90	785	745	40	880	840
80	105	945	900	50	1060	1010
100	120	1140	1080	60	1270	1215
125	135	1360	1295	70	1530	1450
160	160	1665	1585	80	1870	1780
200	190	1970	1870	95	2210	2100
250	230	2300	2195	110	2590	2470
315	270	2760	2630	135	3100	2950
400	330	3250	3095	160	3660	3480
500	385	3900	3710	190	4380	4170
630	460	4460		250	5020
800	560	5400		300	6075
1000	665	7415		360	8340
1250	780	8640		425	9720
1600	940	10440		500	11745
2000	1085	13180		550	14000
2500	1280	13360		670	15450

Product Application

The S22-M(NX1) series oil-immersed power transformer is widely used in various fields that require stable and efficient power supply, suitable for both industrial and civil scenarios. Its main applications include:

Power Grid Construction:

Used in power transmission and distribution systems of State Grid and local power grids, especially for urban and rural power grid upgrading projects, to improve power supply efficiency and stability.

Industrial Parks & Factories:

Suitable for large-scale industrial parks, manufacturing factories, mining enterprises, etc., providing stable power support for production equipment, ensuring continuous and efficient operation of production lines.

Infrastructure Projects:

Applied in transportation hubs (airports, railway stations), commercial complexes, high-rise buildings, and municipal engineering projects, meeting the high-demand power supply needs of public facilities and commercial buildings.

Renewable Energy Supporting:

Matched with solar power plants, wind power plants and other renewable energy projects, used for power conversion and transmission, improving the utilization rate of clean energy.

Remote Areas & Rural Power Supply:

With its stable performance and strong environmental adaptability, it is also suitable for power supply in remote areas and rural areas, solving the problem of insufficient power supply in underdeveloped regions.

Operating Environment

The S22-M(NX1) series oil-immersed power transformer is designed with strong environmental adaptability, capable of operating stably in various harsh environments, and its operating conditions meet the following requirements:

Temperature Range:

Suitable for operating in ambient temperatures from -25℃ to +40℃. It can still maintain stable performance in extremely cold or hot regions with corresponding protective measures.

Humidity Condition:

The relative humidity shall not exceed 95% (at 25℃), and it can adapt to humid environments such as coastal areas and rainy regions without affecting insulation performance.

Altitude:

Applicable to areas with an altitude of no more than 1000 meters. For areas above 1000 meters, it can be customized according to actual needs to ensure normal operation.

Environmental Pollution:

It can be used in areas with mild pollution (pollution level II). For areas with severe dust, chemical corrosion or salt spray, customized anti-pollution and anti-corrosion treatment can be provided.

Installation Site:

Suitable for outdoor and indoor installation, with no special requirements for the foundation, which can be installed on a flat concrete foundation or a dedicated bracket, facilitating on-site construction and installation.

We adhere to the principle of "quality first, customer-oriented", providing high-quality S22-M(NX1) series transformers and professional after-sales service. Welcome global buyers to consult and cooperate with us!
