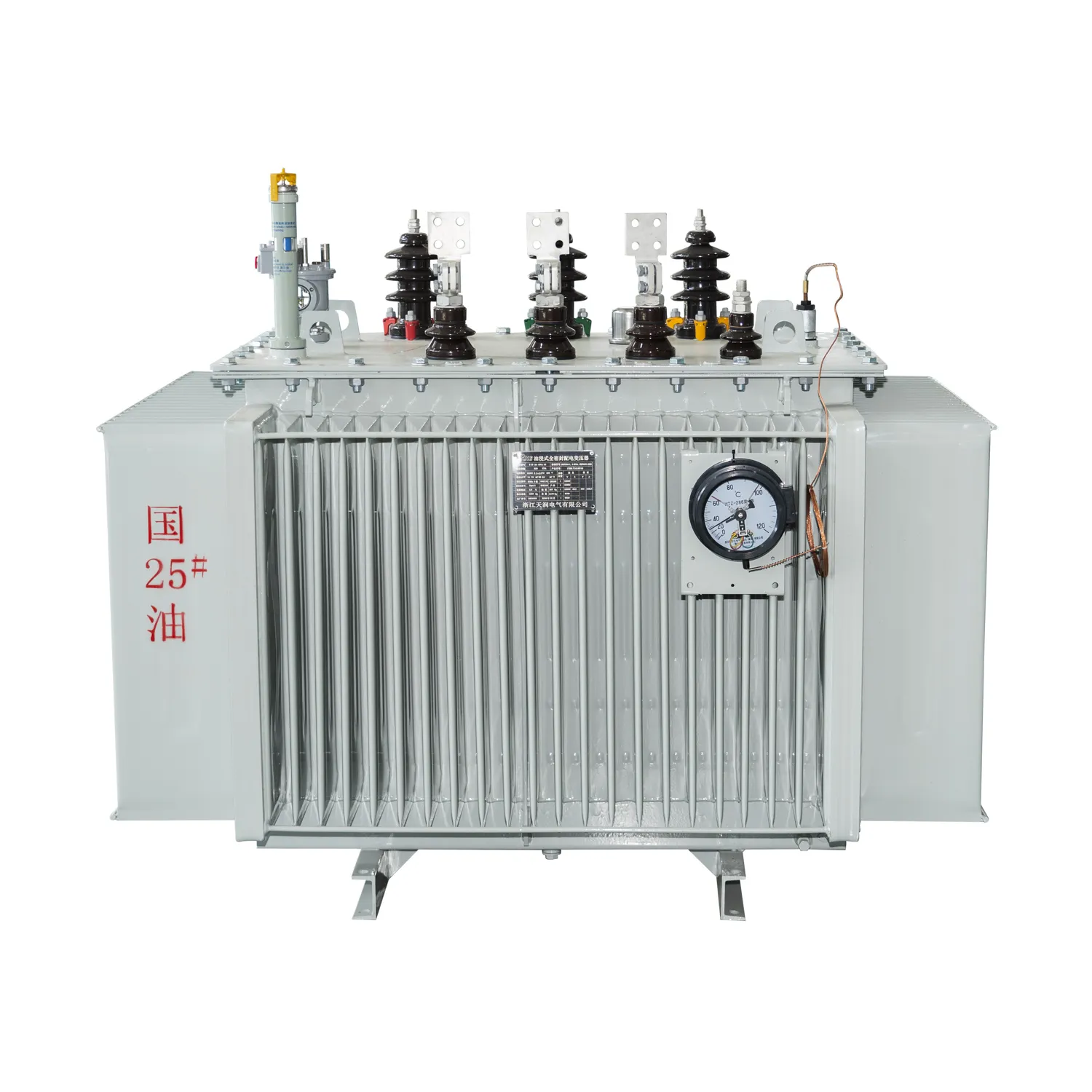

Reliable Oil-Immersed Transformers for Industrial and Utility Applications

Scientific structural

Based on a traditional structural design and mature manufacturing technology, products from leading oil immersed transformer manufacturers like Tenrony have undergone numerous improvements and offer the following advantages:

1. The spiral winding with longitudinal air ducts provides enhanced internal heat dissipation performance.

2. Improved effective support at the coil end face increases the oil immersed transformer's ability to withstand short-circuit currents.

3. A new lifting structure and body positioning system have been adopted, ensuring greater reliability during long-distance transportation and operation.

4. The implementation of a unique and reliable structural design contributes to more stable product performance.

5. High-quality silicon steel sheets with superior magnetic properties are used in the core, resulting in improved energy efficiency, reduced noise levels, and an overall higher technical standard.

6. The oil immersed distribution transformer employs a cast structure, while the internal air channels utilize a prismatic configuration. This design expands the heat dissipation space, accelerates air circulation, prevents and delays insulation degradation and moisture absorption, thereby enhancing operational reliability and enabling maintenance-free normal operation.

High-Quality Material

All raw materials used in oil immersed transformers undergo rigorous inspection, and all material suppliers are strictly evaluated in accordance with the ISO 9000 international quality management standard.

1. Oxygen-free copper wire with lower resistivity is selected. After a series of advanced surface treatments, the wire surface becomes smoother and free of burrs or sharp edges, thereby reducing oil immersed transformer load losses and enhancing electrical performance reliability.

2. With the improvement of performance levels, silicon steel sheets with lower unit losses are employed, resulting in reduced no-load losses of the immersed transformer.

3. High-quality laminated wood insulation components are selected, which remain crack-free and stable even under the mechanical stress of short-circuit currents.

4. The use of premium insulation materials ensures superior insulation performance, enhanced product quality and reliability, and improved operational stability of the oil immersed distribution transformer.

5. High-performance rubber sealing materials are selected to provide effective resistance against aging.

Equipment Durability

All components of the oil immersed transformer are certified products that comply with the inspection and testing requirements set by relevant national regulatory bodies. These oil immersed distribution transformer components are designed to operate without causing adverse effects and are environmentally safe. The service life of the oil immersed distribution transformer equipment can reach up to 40 years, during which no replacement of components or vulnerable parts is required. As a result, the oil immersed transformer is highly durable and requires minimal maintenance throughout its operational lifespan.

Comprehensive Equipment Evaluation

1. The oil immersed transformer offers excellent safety performance, with fire-resistant and pollution-free characteristics, enabling direct installation and operation in load centers.

2. Utilizing advanced domestic manufacturing technology, the oil immersed transformer features high mechanical strength, strong short-circuit resistance, low partial discharge levels, superior thermal stability, high reliability, and an extended service life.

3. The oil immersed power transformer demonstrates low energy losses, reduced noise emissions, significant energy-saving effects, and requires no maintenance during operation.

4. The oil immersed transformer provides efficient heat dissipation and strong overload capacity; forced air cooling can further enhance oil immersed transformer operational capacity.

5. This type of oil immersed transformer possesses excellent moisture resistance, allowing reliable operation in high-humidity and other challenging environmental conditions.

6. A comprehensive temperature monitoring and protection system is integrated into the design. This fully oil immersed transformer automatic system requires no manual intervention, offering a high level of automation and robust protective functionality.

7. The oil immersed transformer unit features a compact structure and lightweight design, occupying minimal space and reducing installation costs.

In practical substation deployments, oil-immersed transformers are often delivered as part of an integrated power distribution system. To match different installation environments, we can provide alternative solutions with dry type transformers, and coordinate the upstream/downstream connections with our high voltage switchgear for sale to form a safer and more reliable turnkey package.

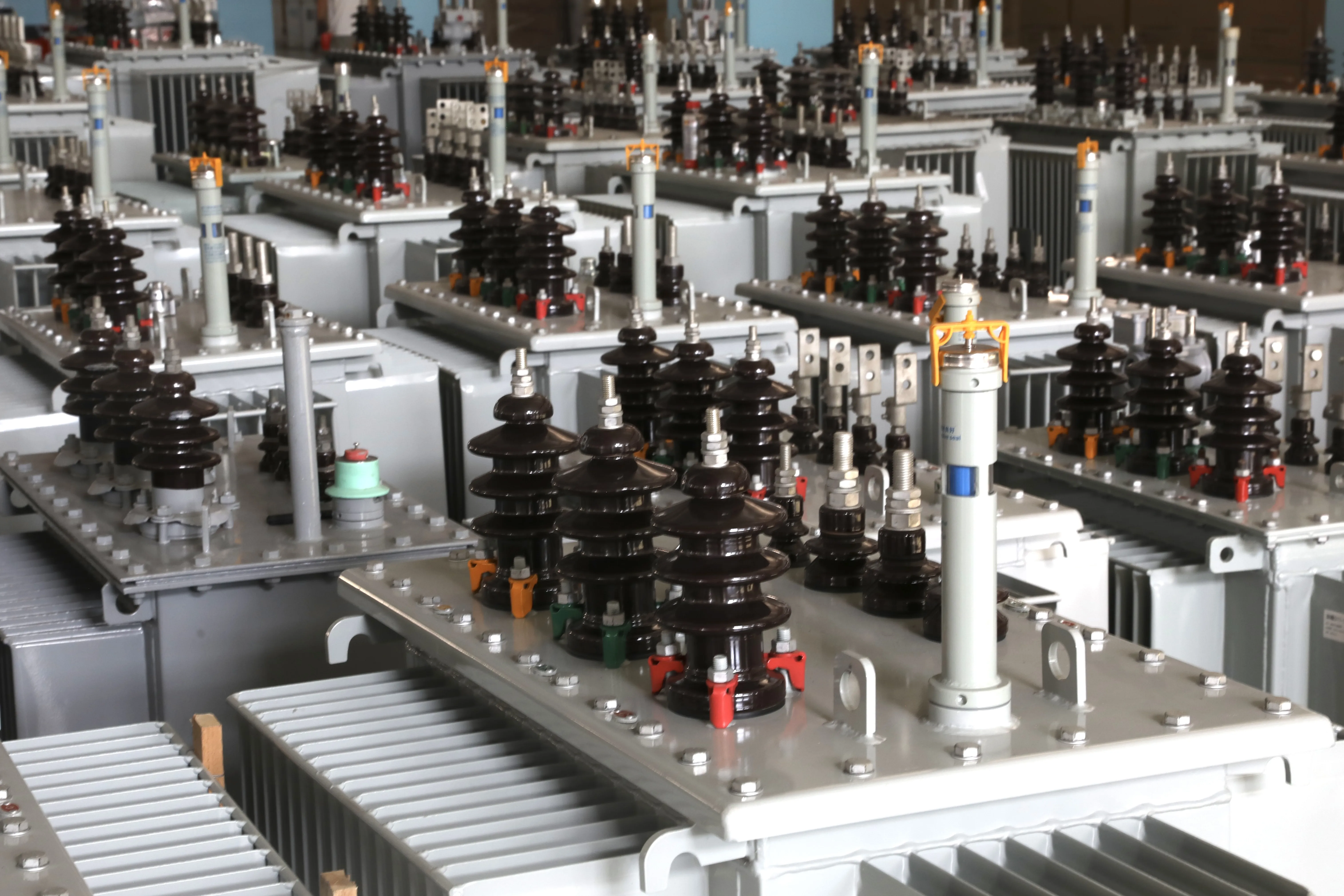

At Tenrony, every oil immersed transformer follows strict manufacturing procedures to ensure product reliability and consistent performance.

1. Core Manufacturing

High-quality electrical steel is processed to reduce energy losses and improve transformer efficiency.

2. Coil Winding

Transformer windings are manufactured with precise control to ensure electrical performance and mechanical strength.

3. Assembly and Testing

Core, coils and transformer components are assembled according to technical specifications.

4. Oil Filling and Inspection

Transformer oil is filled under controlled conditions, followed by electrical and performance testing before shipment.

Professional Transformer Manufacturing Experience

Tenrony focuses on power distribution equipment manufacturing and provides transformer solutions for global industrial and utility customers.

Strict Quality Control

Each transformer undergoes inspection and testing procedures to verify electrical performance, reliability and operational safety.

Customized Transformer Solutions

We support customized requirements including:

• Voltage ratings

• Capacity selection

• Structural design

• Application-specific configurations

Global Project Support

Tenrony works with international customers to provide technical communication, product customization and project support.
