Power transformer types refer to different transformer designs classified by insulation medium, voltage function, installation environment, cooling method, phase, and application. Selecting the right type is essential for safe voltage conversion, efficient power transmission, stable distribution, and long-term equipment reliability.
In power generation, substations, industrial plants, renewable energy projects, mining, commercial buildings, and urban power grids, transformers are not interchangeable. A 35kV high-voltage power transformer, a 6kV–11kV oil-immersed distribution transformer, and an indoor dry-type transformer solve different electrical problems. Tenrony provides Power Transformer, Oil-Immersed Transformer, and Dry-Type Transformer solutions for transmission, distribution, industrial, and infrastructure applications.
What Are Power Transformer Types?
Power transformer types are categories of transformers designed to change AC voltage or current levels while maintaining the same frequency. They work through electromagnetic induction and are used to step voltage up for long-distance transmission or step voltage down for safe distribution.
A power transformer usually serves high-capacity power transfer between generation, transmission, and distribution networks. Tenrony’s power transformer page defines a power transformer as a static electrical device that converts AC voltage or current into one or more different voltage or current levels at the same frequency. Typical power transformer functions include voltage transformation, power transmission, and system interconnection.
In practical selection, engineers usually classify power transformers by several dimensions: oil-immersed vs dry-type, step-up vs step-down, single-phase vs three-phase, distribution vs transmission, and general-purpose vs special-purpose. Standards also matter. The IEEE power and distribution transformer standards provide references for liquid-immersed, dry-type, pad-mounted, network, distribution, regulating, and related transformer categories.
Main Power Transformer Types and Applications
Main power transformer types include oil-immersed transformers, dry-type transformers, distribution transformers, step-up transformers, step-down transformers, and special transformers. Each type is designed for a different balance of voltage level, cooling capacity, safety requirement, installation space, and load profile.

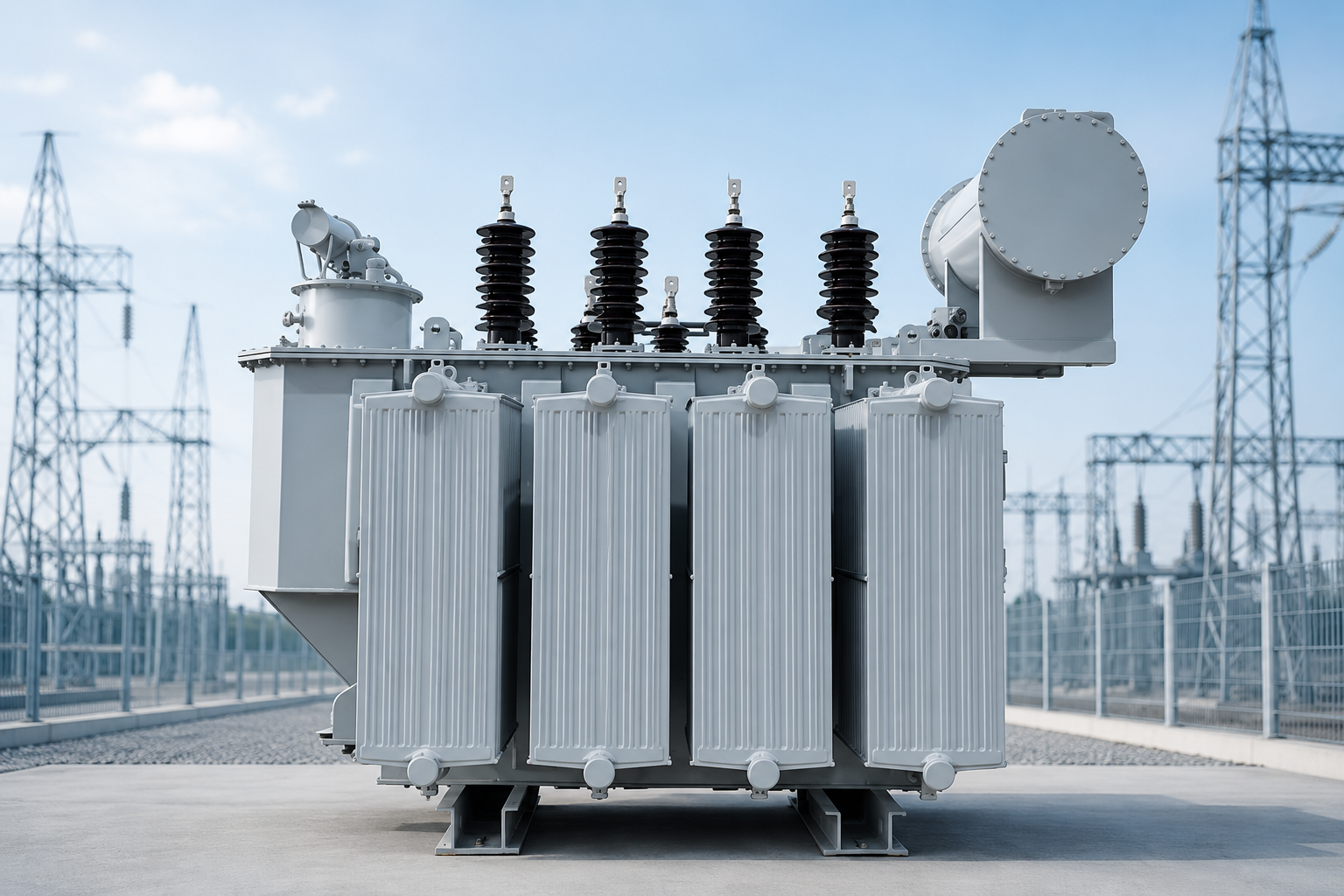

Oil-immersed transformers use insulating oil for both cooling and insulation. They are widely used in substations, outdoor distribution networks, industrial plants, renewable energy stations, and high-capacity applications. Tenrony’s oil-immersed transformer range includes 6kV–11kV oil-immersed distribution transformers, three-phase oil-immersed distribution transformers, 630kVA 11kV energy-efficient oil-immersed transformers, and 35kV high-voltage power transformers.
Dry-type transformers use air and solid insulation, such as epoxy resin, instead of insulating oil. They are often chosen for high-rise buildings, hospitals, schools, shopping malls, data centers, and places with higher fire safety and environmental requirements. Tenrony’s dry-type products include SCB series dry-type transformers from 6kV to 35kV and models up to 12,500kVA. The IEC 60076-11 dry-type transformer standard applies to dry-type power transformers, including auto-transformers.
Step-up transformers increase voltage for long-distance transmission, reducing current and line losses. Step-down transformers reduce high voltage to medium or low voltage for industrial equipment, buildings, and end users. Special transformers, such as arc furnace transformers and line voltage regulators, are designed for demanding loads, voltage fluctuation control, or heavy industrial environments.
Power Transformer Types Comparison Table
A power transformer comparison table helps buyers quickly match transformer type with installation environment, safety requirements, voltage range, and application scenario.
| Transformer Type | Main Feature | Typical Voltage / Capacity Reference | Best Application |
|---|
| Oil-Immersed Transformer | Strong cooling, high overload capacity, outdoor-friendly | 6kV–11kV, 35kV, 630kVA+ options | Substations, grids, factories, renewable energy |
| Dry-Type Transformer | Fire-safe, pollution-free, low maintenance | 6kV–35kV, up to 12,500kVA models | Buildings, hospitals, schools, malls, indoor load centers |
| Step-Up Transformer | Raises voltage for transmission | Common in power plants and solar/wind stations | Long-distance power transmission |
| Step-Down Transformer | Reduces voltage for safe distribution | Often used before end-user loads | Industrial plants, buildings, distribution networks |
| Three-Phase Transformer | Efficient for balanced industrial and grid loads | Common in medium/high-voltage networks | Factories, utilities, infrastructure |
| Special Transformer | Designed for special load profiles | Arc furnace, voltage regulation, mining use | Heavy industry, mining, metallurgy, unstable grids |
For energy-conscious projects, transformer loss performance should also be considered. The U.S. Department of Energy notes that manufacturers have been required to comply with distribution transformer efficiency standards since 2007, showing how important transformer efficiency is in long-term power infrastructure planning.
How to Choose the Right Power Transformer Type
Choosing the right power transformer type means matching the transformer design to voltage level, load capacity, installation environment, cooling requirement, safety standard, and lifecycle cost. A technically correct transformer should not only meet today’s power demand but also support future load growth and maintenance conditions.
For outdoor substations, renewable energy, mining, and industrial power distribution, oil-immersed transformers are often preferred because they provide strong heat dissipation and robust performance. For indoor installations with strict fire protection, environmental, or space requirements, dry-type transformers are usually more suitable. For grid transmission, step-up and step-down transformers should be selected according to system voltage levels and transmission distance.
Buyers should confirm rated capacity, primary and secondary voltage, frequency, impedance, insulation class, cooling method, noise level, protection requirements, altitude, ambient temperature, and applicable IEC, IEEE, or local standards. For renewable energy and heavy industry, voltage fluctuation, harmonics, short-circuit strength, and site environment should be discussed early with the manufacturer.
Tenrony, founded in 2003, is a power distribution equipment manufacturer integrating R&D, design, manufacturing, sales, and after-sales service. With over 200 employees and technical/R&D personnel accounting for 15.1% of the workforce, Tenrony provides transformer, substation, high-voltage switchgear, and low-voltage switchgear solutions for urban and rural power grids, construction, electric power, renewable energy, and heavy industries.
Conclusion
Power transformer types differ by insulation medium, voltage function, phase, installation environment, cooling method, and application. Oil-immersed transformers are suitable for outdoor, high-capacity, and grid-related applications. Dry-type transformers are suitable for indoor, fire-sensitive, and environmentally controlled sites. Step-up, step-down, distribution, three-phase, and special transformers each serve specific roles in power transmission and distribution.
For project buyers, the best transformer is not simply the largest or lowest-cost option. It is the one that matches voltage, load, environment, safety, efficiency, standard compliance, and lifecycle service needs. Tenrony supports power transformer, oil-immersed transformer, dry-type transformer, special transformer, substation, and switchgear selection for customers seeking reliable power distribution solutions.
FAQ
1. What are the main types of power transformers?
The main types include oil-immersed transformers, dry-type transformers, step-up transformers, step-down transformers, distribution transformers, three-phase transformers, and special transformers.
2. What is the difference between oil-immersed and dry-type transformers?
Oil-immersed transformers use insulating oil for cooling and insulation, while dry-type transformers use air and solid insulation such as epoxy resin. Oil types are common outdoors and at higher capacity, while dry types are preferred indoors and in fire-sensitive areas.
3. When should I choose a dry-type transformer?
Choose a dry-type transformer for indoor projects, high-rise buildings, hospitals, schools, shopping malls, data centers, and locations where fire safety, low maintenance, and environmental protection are important.
4. When should I choose an oil-immersed transformer?
Choose an oil-immersed transformer for substations, outdoor installations, industrial power distribution, renewable energy stations, and applications requiring strong cooling and high overload capacity.
5. What is the difference between a power transformer and a distribution transformer?
A power transformer is mainly used for high-capacity voltage conversion in transmission and substations, while a distribution transformer is generally used near load centers to supply usable voltage to end users.
6. Why choose Tenrony for power transformer projects?
Tenrony offers power transformers, oil-immersed transformers, dry-type transformers, special transformers, substations, and switchgear, supported by over 20 years of industry experience, R&D capability, quality management, and project-based customization.
